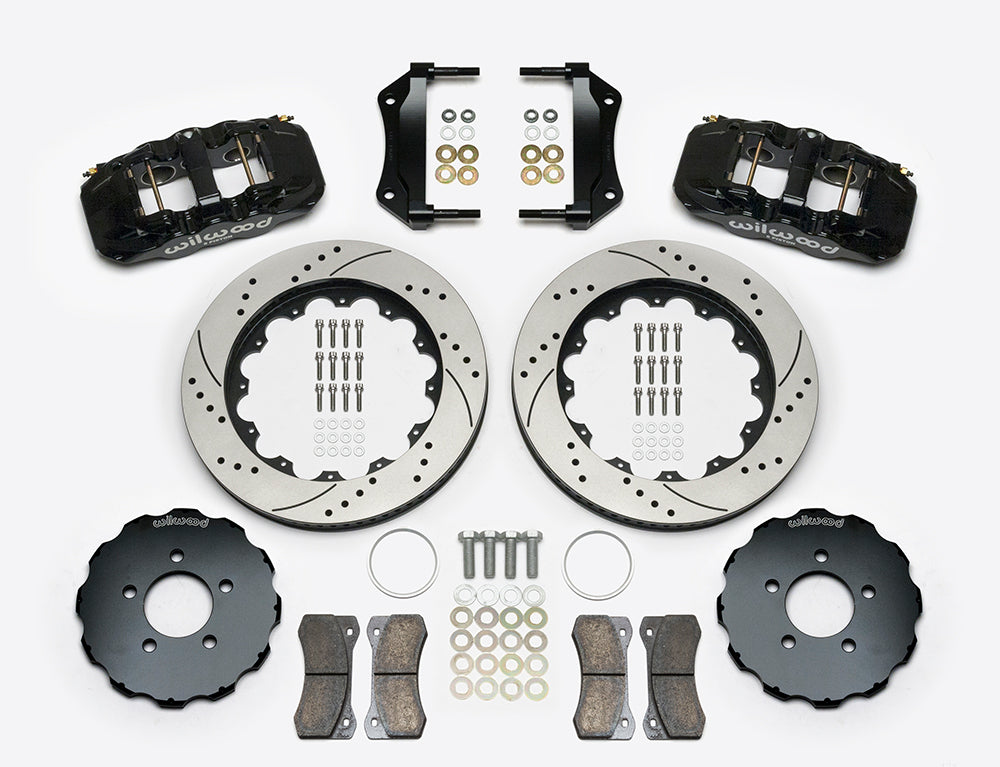

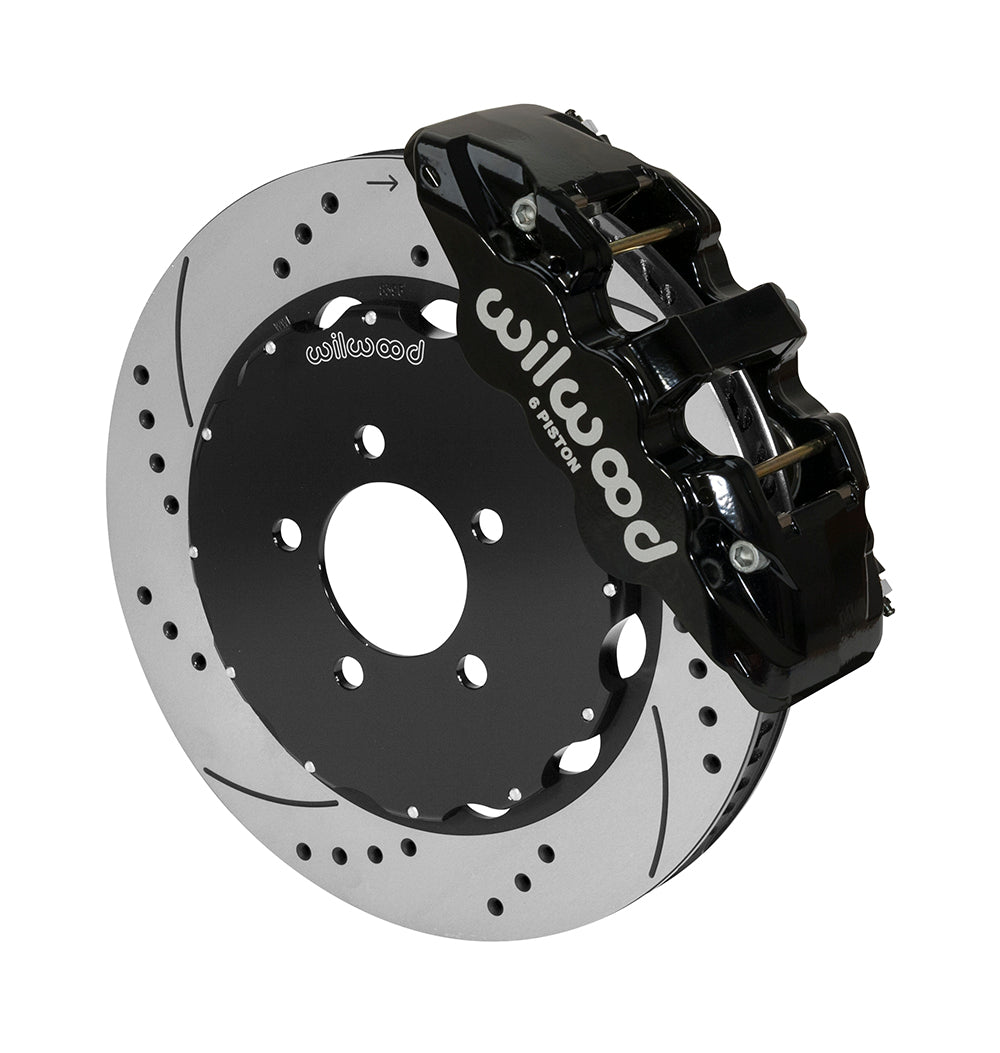

Wilwood Black AERO6 Front Conversion for Town Car, Crown Victoria, Marauder & Grand Marquis with Drilled 14-Inch Rotors

This Wilwood AERO6 kit is a front 14-inch AERO6 upgrade for Crown Victoria/Town Car/Grand Marquis/Marauder. AERO6 calipers use the larger listed piston bores with 14 x 1.25-inch Spec-37 rotors. From its Camarillo, California base, Wilwood Engineering designs disc brake systems for motorsport, street-performance and specialized needs. Founded in 1977 by Bill Wood, its range covers calipers, rotors, master cylinders, valves, fittings and brake lines chosen to work within a complete brake system.

Technical Details

• Manufacturer part number: 140-14682-D.
• Match the AERO6 caliper architecture when selecting related components: radial attachment, 6 stainless pistons, forged aluminum body and Black Powder Coat finish.
• Use a compatible hose adapter for the caliper's 1/8-27 NPT inlet.
• Pad selection is BP-10; piston-bore measurements are 1.75, 1.38, 1.38 inches. Confirm those values for any system changes.
• For rotor replacement, match all four specifications: 14.00 in; 355.6 mm outside diameter, 1.25 in; 31.75 mm thickness, Spec-37 Iron and the srp drilled & slotted surface. Rotor construction: vented.
• For the rotor-to-hub interface, the kit supplies separate aluminum hats finished in Black E-Coat.
• Attachment dimensions to confirm are 5 x 4.5 in; 5 x 114.3 mm for the wheel mounting pattern(s) and 0.580 in; 14.73 mm for the nominal hat stud-hole clearance diameter.
• The kit does not supply replacement hubs; confirm the dimensions of those already installed.
• Included installation parts cover the kit mounting hardware, with spindles, brake booster and master cylinder excluded.
• Plan the hydraulic connection separately: this kit has no hoses. Check line length and end fittings against the vehicle. Separate reference: 220-14690.
• Before ordering wheels, check the full inside profile against the drawing and the published 18 in; 457.2 mm minimum diameter.
• One brake kit is supplied for the specified application and axle position.

Fitment & Compatibility

For the listed 2003–2011 Crown Victoria, Lincoln Town Car and Mercury Grand Marquis, or 2003–2004 Marauder, verify the exact option/wheelbase row. DS-1242 calls out separate hose 220-14690 only for Crown Victoria. Confirm the correct lines for other models and check all wheel/spindle interfaces before purchase. Models covered: Crown Victoria, Town Car, Grand Marquis and Marauder. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
