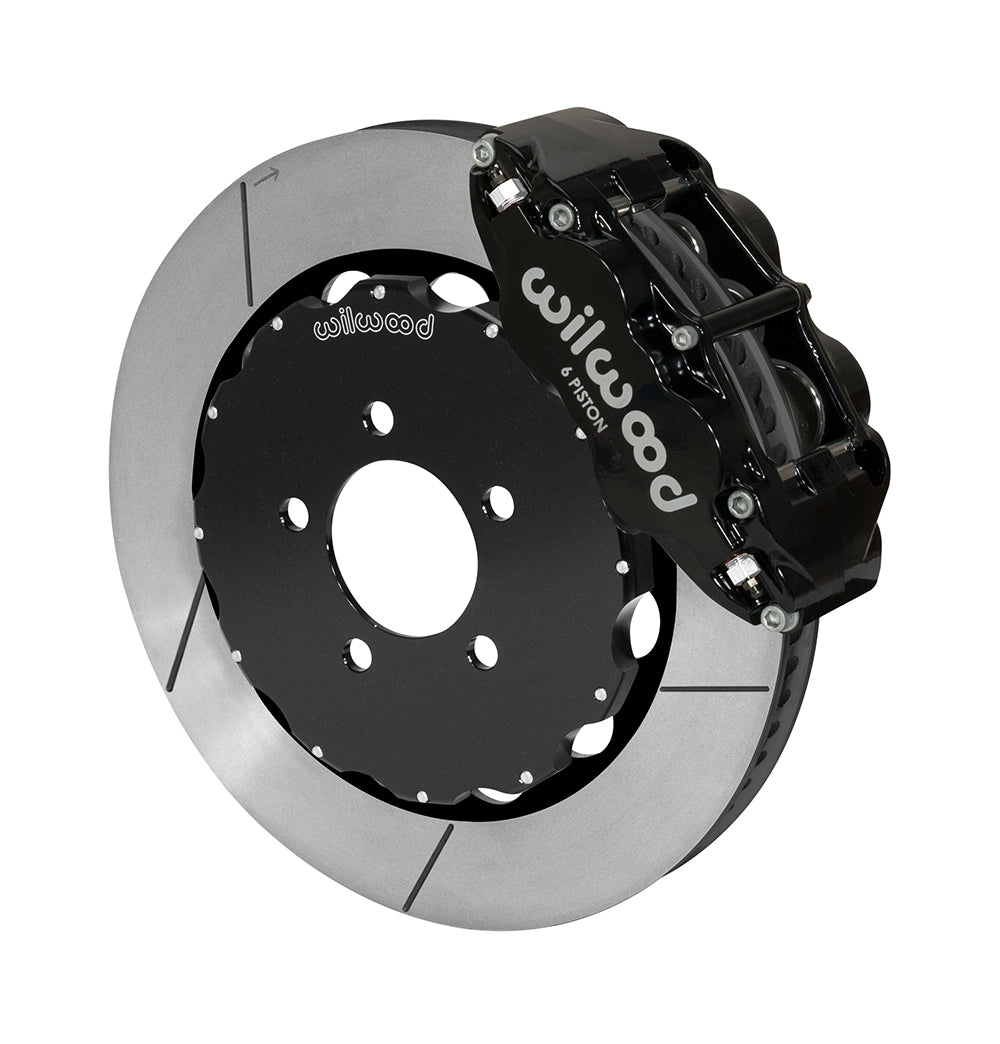

Wilwood Black Superlite Front Brake Kit for Crown Victoria, Town Car, Grand Marquis & Marauder with 14-Inch GT Rotors

This Wilwood Superlite 6R kit is a front 14-inch Superlite disc upgrade for Ford Panther Platform: Crown Victoria, Town Car, Grand Marquis and Marauder. The 14-inch rotor package keeps a narrow six-piston caliper design and requires an 18-inch nominal wheel before profile checks. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

Technical Details

• Manufacturer part number: 140-14681.
• The friction discs measure 14.00 in; 355.6 mm across and 1.25 in; 31.75 mm thick; gt slotted surfaces are used on vented Spec-37 Iron rotors.
• Each caliper carries 6 pistons made from stainless. The Superlite 6R design uses forged aluminum, radial mounting and a Black Powder Coat finish.
• BP-10 pads are supplied; the listed bore dimensions are 1.75, 1.25, 1.25 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Wheel mounting pattern(s) measure 5 x 4.5 in; 5 x 114.3 mm. The associated nominal hat stud-hole clearance diameter is 0.580 in; 14.73 mm.
• The rotor rings attach to separate aluminum hats with a Black E-Coat finish.
• Retain the compatible existing wheel hubs, which are not included in this kit.
• Start wheel selection at 18 in; 457.2 mm; the barrel and spokes still need checking against the caliper-clearance template.

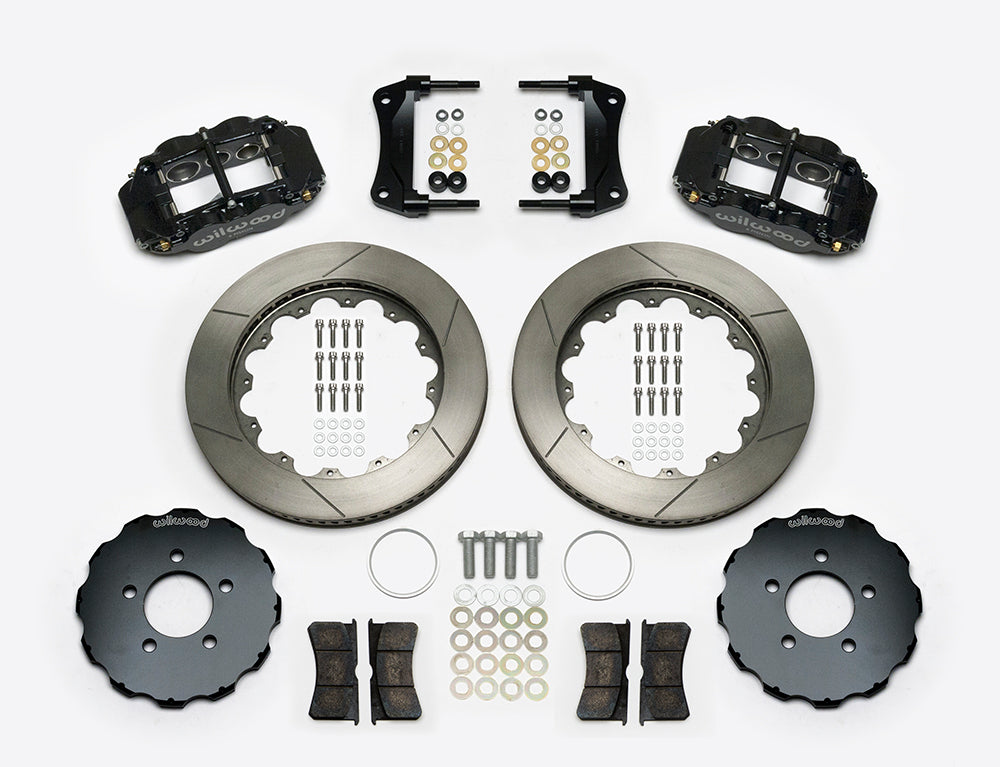

• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Order suitable flexlines separately; none are included. Match the chassis fittings and allow full steering/suspension travel. Separate reference: 220-14690.
• Sold as a complete kit for the specified front installation.

Fitment & Compatibility

The exact listed applications cover 2003–2011 Crown Victoria, Town Car and Grand Marquis and 2003–2004 Marauder. Match wheelbase and factory spindle. DS-1241 limits the named 220-14690 hose reference to Crown Victoria; other cars need individually confirmed hoses. Reposition Crown Victoria hardlines carefully as instructed. Models covered: Crown Victoria, Town Car, Grand Marquis and Marauder. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
