Wilwood Red Six-Piston Front Brakes for Town Car, Crown Victoria, Marauder & Grand Marquis with 12.88-Inch SRP Rotors

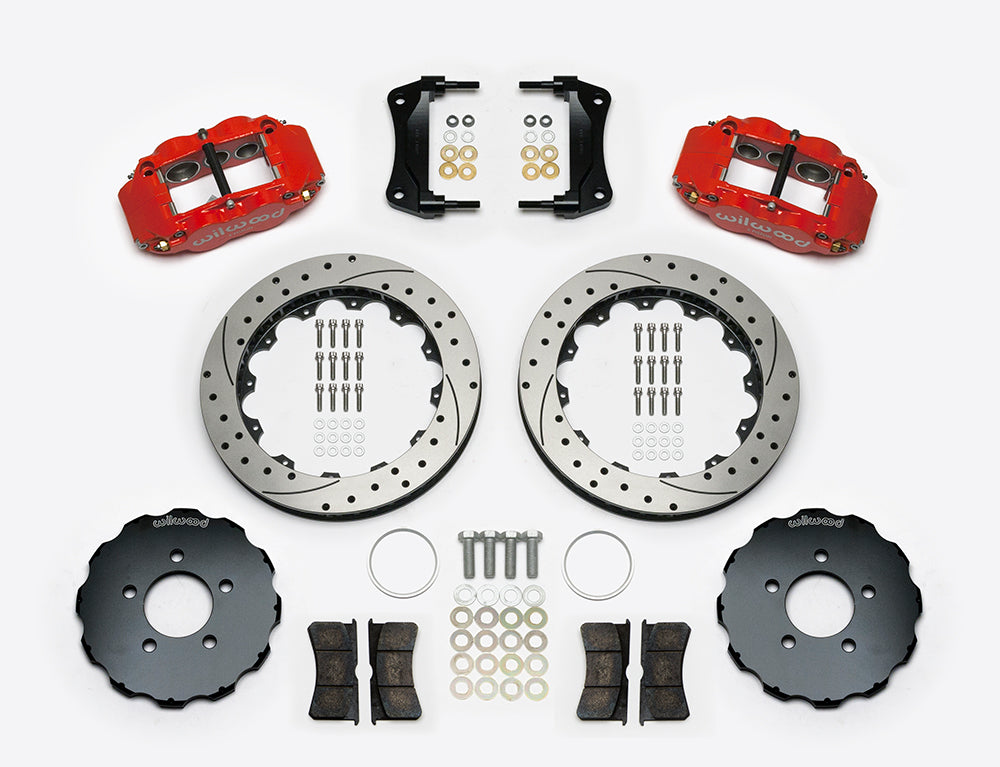

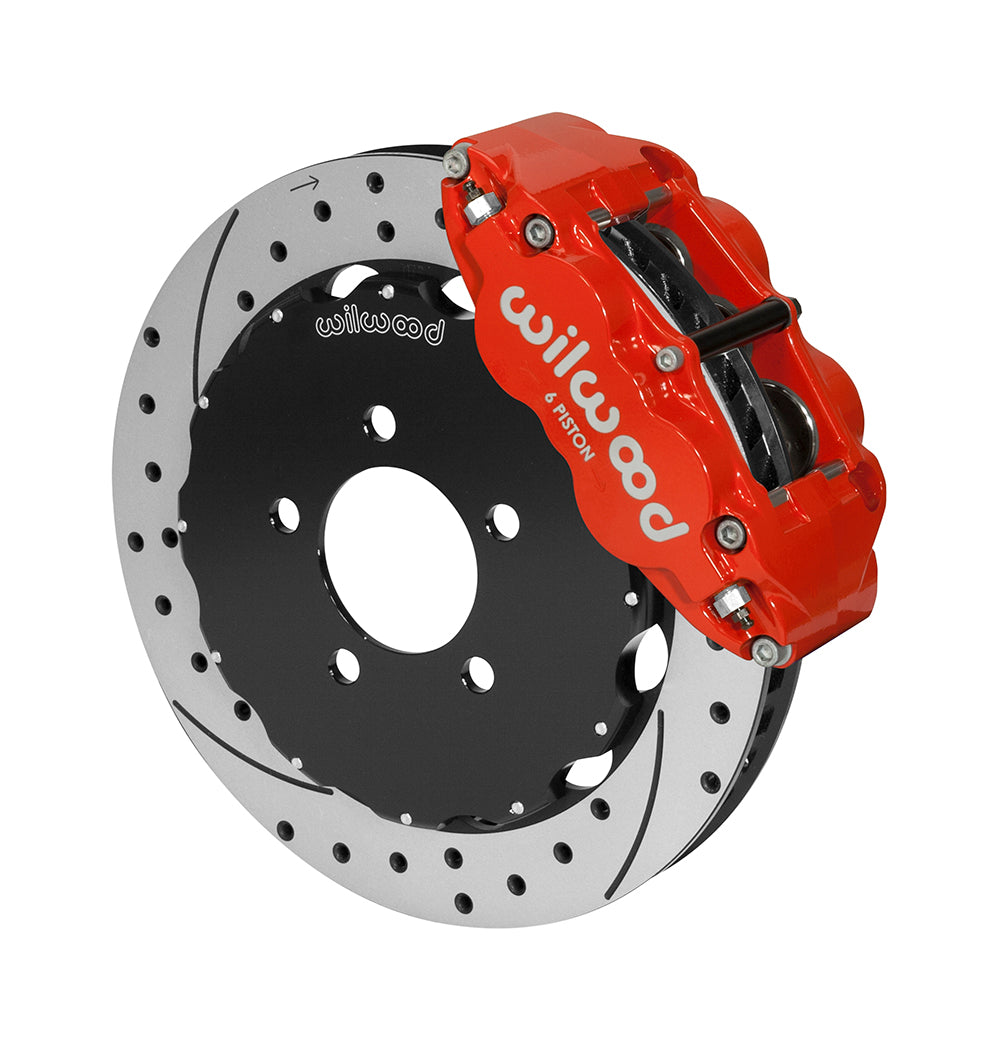

This Wilwood Superlite 6R kit is a front 12.88-inch disc upgrade for Crown Victoria, Town Car, Grand Marquis and Marauder. The 12.88 x 1.25-inch rotors mount on separate aluminum hats and work with six-piston Superlite calipers. From its Camarillo, California base, Wilwood Engineering designs disc brake systems for motorsport, street-performance and specialized needs. Founded in 1977 by Bill Wood, its range covers calipers, rotors, master cylinders, valves, fittings and brake lines chosen to work within a complete brake system.

Technical Details

• Manufacturer part number: 140-14680-DR.
• The specified radial caliper is a Superlite 6R. It combines a Red Powder Coat forged aluminum body with 6 pistons per unit; the published piston material is stainless.
• Bores and friction material: 1.75, 1.25, 1.25 inches, with BP-10 pads supplied for the specified calipers.
• The vented discs have srp drilled & slotted friction surfaces and Spec-37 Iron construction. Nominal dimensions are 1.25 in; 31.75 mm through the braking section and 12.88 in; 327.15 mm at the outside edge.
• Aluminum hats with Black E-Coat finish complete the two-piece rotor assembly.
• Use the specified original or compatible existing hubs. The kit contains no wheel hubs.
• The nominal hat stud-hole clearance diameter is 0.580 in; 14.73 mm; the matching wheel mounting pattern(s) are 5 x 4.5 in; 5 x 114.3 mm. These describe different aspects of the attachment.
• When planning the line connection, account for the 1/8-27 NPT caliper inlet.
• The supplied hardware mounts the specified brake package. It does not include replacement spindles, a brake booster or a master cylinder.
• The caliper package calls for at least the published 17 in; 431.8 mm wheel diameter, plus sufficient spoke and inner-barrel clearance.
• Flexlines are excluded from the brake package. Select the chassis-specific hoses and confirm safe clearance throughout travel. Separate reference: 220-14690.
• This is a kit listing; one package contains the brake components described above.

Fitment & Compatibility

Use 2003–2011 Crown Victoria, Town Car and Grand Marquis plus 2003–2004 Marauder as listed. Respect the wheelbase-specific rows. DS-1240 identifies hose 220-14690 for Crown Victoria only; for the other models confirm suitable separate hose length, fittings and routing. Crown Victoria hardlines need repositioning to meet the new fittings. Models covered: Crown Victoria, Town Car, Grand Marquis and Marauder. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
