Wilwood Front Superlite 6R Kit, Black Calipers & 12.88-Inch GT Rotors for Crown Victoria, Town Car, Grand Marquis & Marauder

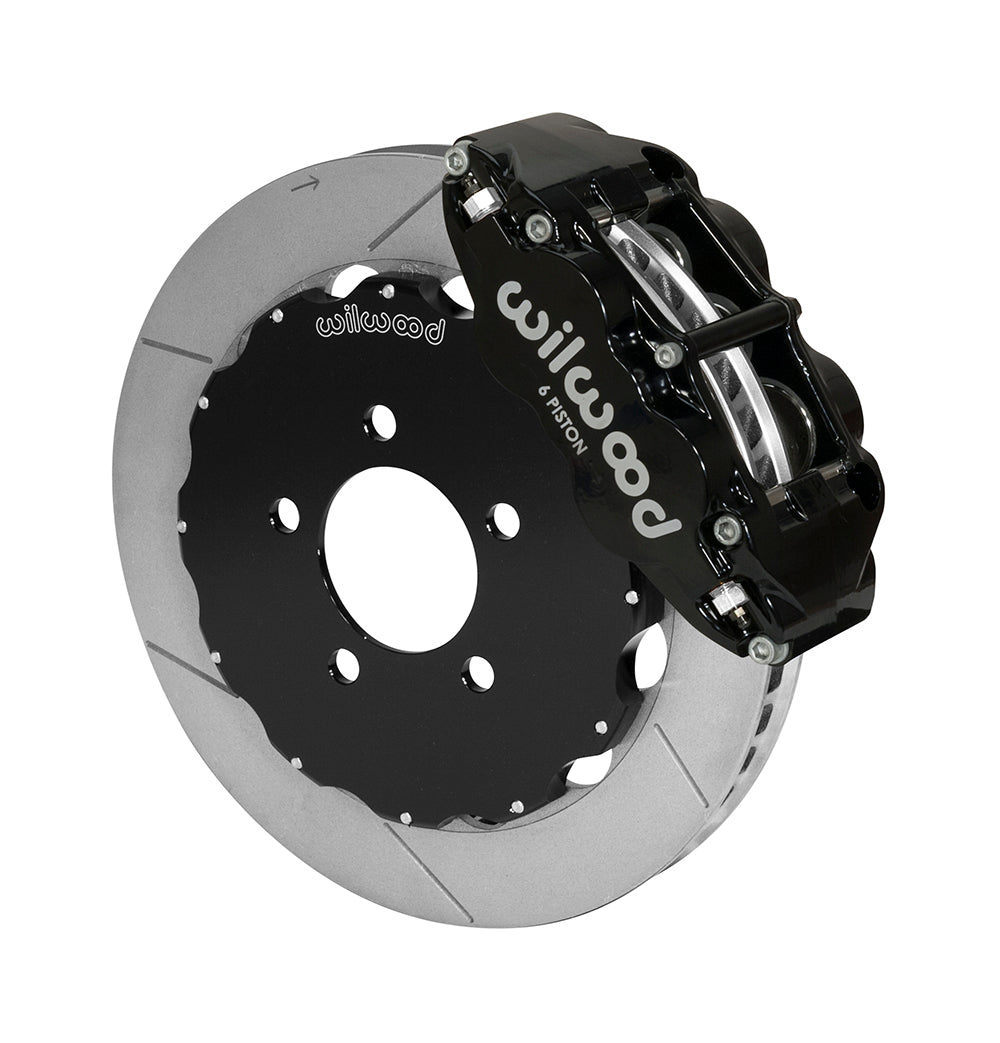

This Wilwood Superlite 6R kit is a front 12.88-inch disc upgrade for Crown Victoria, Town Car, Grand Marquis and Marauder. The 12.88 x 1.25-inch rotors mount on separate aluminum hats and work with six-piston Superlite calipers. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs disc brake systems and components for racing, performance-road and specialized use, from calipers and rotors to master cylinders, valves, fittings and brake lines; the complete system determines component selection.

Technical Details

• Manufacturer part number: 140-14680.
• Caliper bodies are forged aluminum, with Black Powder Coat treatment. This is the radial-mounted Superlite 6R version, using 6 stainless pistons per caliper.
• This configuration uses BP-10 brake pads with caliper bores listed as 1.75, 1.25, 1.25 inches.
• Across the rotor face the measurement is 12.88 in; 327.15 mm; the braking section is 1.25 in; 31.75 mm thick. Both discs use the specified vented Spec-37 Iron design and gt slotted finish.
• The supplied aluminum hats are separate from the friction rings and carry a Black E-Coat finish.
• Wheel hubs are separate from this kit and must match the documented existing assembly.
• For this kit the published wheel mounting pattern(s) are 5 x 4.5 in; 5 x 114.3 mm. Check the specified 0.580 in; 14.73 mm nominal hat stud-hole clearance diameter.
• Fluid enters through a 1/8-27 NPT caliper port; match the adapter accordingly.
• Mounting hardware accompanies the brake components; the vehicle's spindle, master cylinder and booster are separate items.
• The stated wheel requirement is 17 in; 431.8 mm. Nominal diameter alone does not establish clearance around the caliper and rotor.
• A suitable separately purchased line set is required, with compatible fittings and routing. Brake hoses are not supplied. Separate reference: 220-14690.

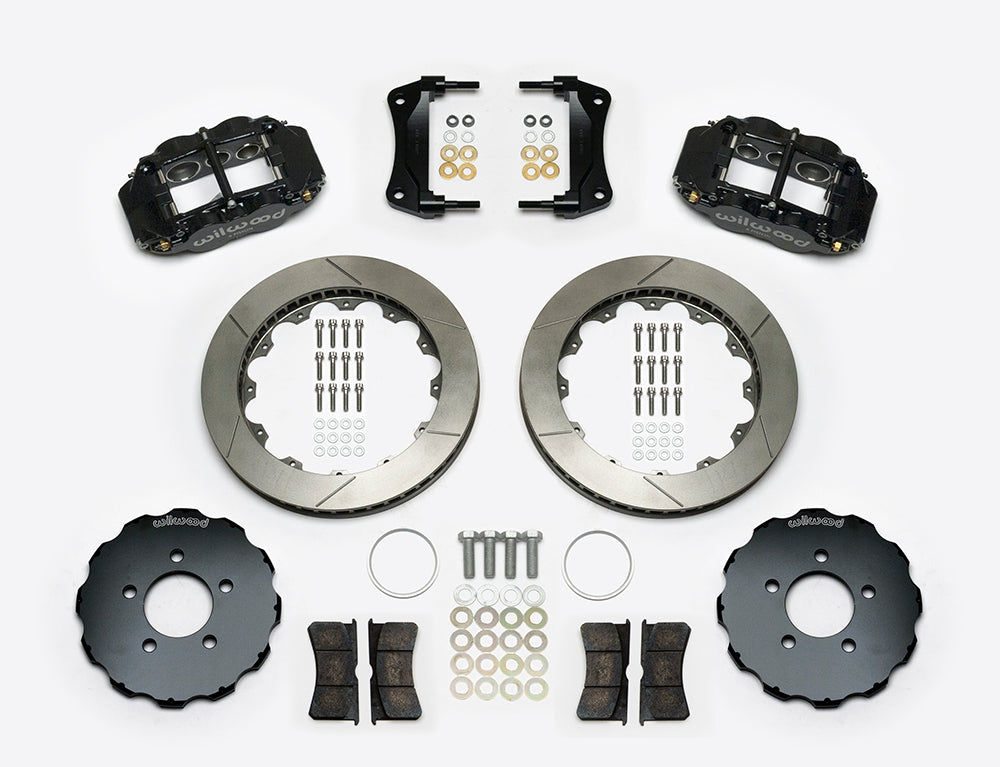

• The components are sold together as one kit for the stated installation.

Fitment & Compatibility

Use 2003–2011 Crown Victoria, Town Car and Grand Marquis plus 2003–2004 Marauder as listed. Respect the wheelbase-specific rows. DS-1240 identifies hose 220-14690 for Crown Victoria only; for the other models confirm suitable separate hose length, fittings and routing. Crown Victoria hardlines need repositioning to meet the new fittings. Models covered: Crown Victoria, Town Car, Grand Marquis and Marauder. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.
