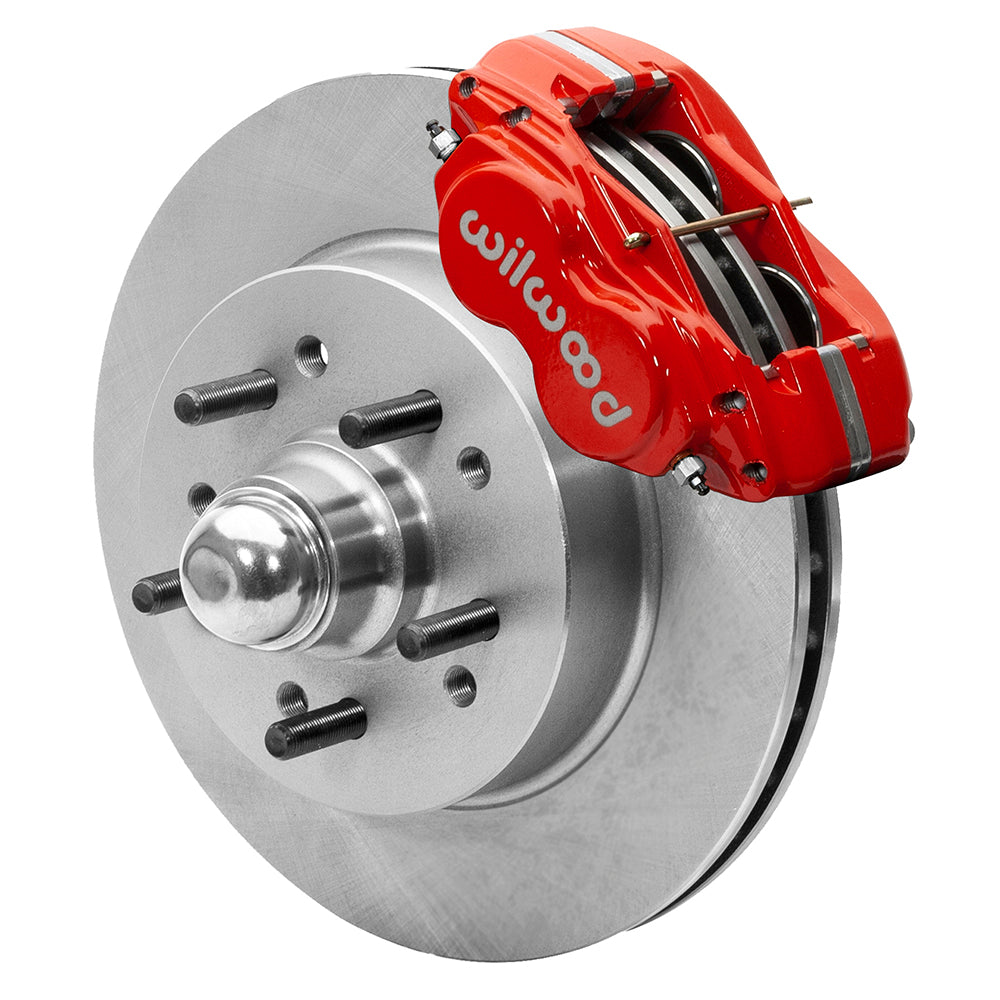

Wilwood Red Four-Piston Front Drum-Brake Conversion for Classic Chevrolet Applications, Plain Integral-Hub Rotors

This Wilwood Dynalite-M kit is a front Classic Series disc conversion for Classic Chevrolet Drum Spindles and 1963–1964 Corvette. Plain 11.50-inch iron rotor/hub castings combine with four-piston Dynalite-M calipers for the verified drum-spindle applications. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc brake systems for motorsport, street-performance and specialized applications. Its calipers, rotors, master cylinders, valves, fittings and brake lines must be selected as parts of a complete, matched braking system.

Technical Details

• Manufacturer part number: 140-14663-R.
• At each caliper, the Dynalite-M configuration provides 4 pistons in stainless, housed in forged aluminum. The caliper attaches by lug mounting and is finished in Red Powder Coat.
• For hydraulic matching, use the published 1.75, 1.75-inch piston bores. Pads are the BP-10 compound.
• This version supplies plain face rotors in Iron. Their 11.50 in; 292.1 mm diameter and 1.00 in; 25.4 mm section are matched to the listed vented brake package.
• The replacement casting incorporates the rotor and hub together. This version does not use a separate aluminum wheel hub or bolt-on rotor hat.
• The mounting interface uses 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; verify the listed stud diameter of 0.50 in; 12.70 mm separately from the bolt circle.
• Inlet-port specification for hose/fitting selection is 1/8-27 NPT.

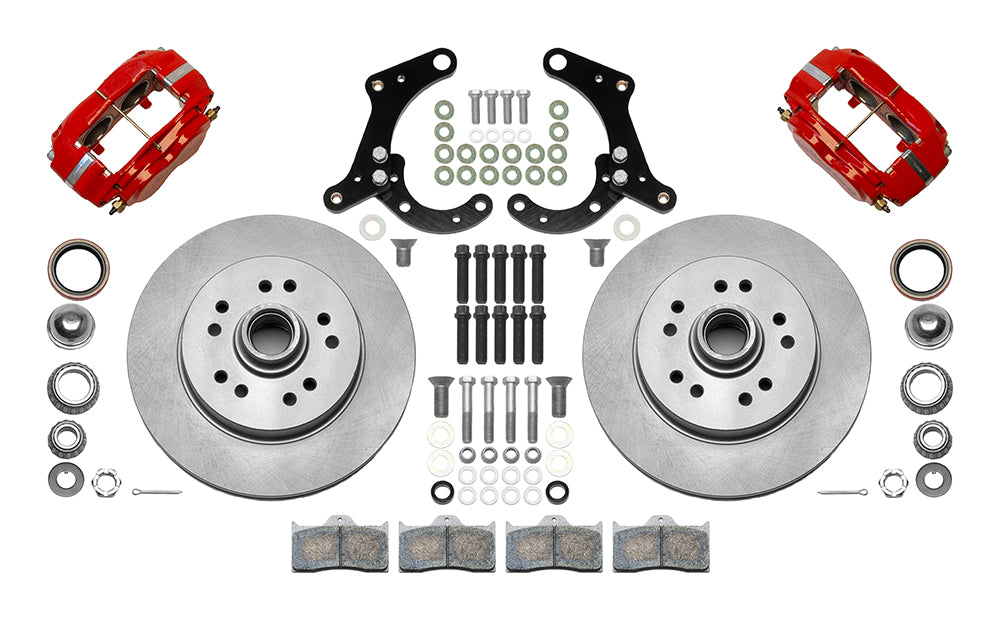

• The listed brackets and fasteners belong to the kit. Spindles and the master-cylinder/booster assembly are outside the package.
• Wheel clearance must be measured using the installation template; the manufacturer lists 15 in; 381 mm as the nominal minimum.
• No hydraulic flexlines accompany the kit; supply the correct hoses and fittings for the documented caliper/chassis interface. Separate reference: 220-7699.
• Order quantity refers to one brake conversion kit, not an individual loose rotor or caliper.

Fitment & Compatibility

Match the complete Chevrolet model/year list, including 1955–1957 passenger cars, listed 1959–1964 full-size cars and 1963–1964 Corvette. Follow the appropriate DS-1243 bracket/hardware configuration; do not assume every year between these groups is listed. Models covered: Bel Air, Nomad, One-Fifty Series, Sedan Delivery, Two-Ten Series, Del Ray, Biscayne, Brookwood, El Camino, Impala, Kingswood, Parkwood and Corvette. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

If a separate rear parking-brake conversion is also planned, a universal parking cable may need cable or vehicle changes; it is not part of this front kit.

Separate universal hose choices are 220-7056 (14-inch), 220-7699 (16-inch) or 220-8307 (18-inch). Select the correct length and end fittings; these are alternatives, not three required kits.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
