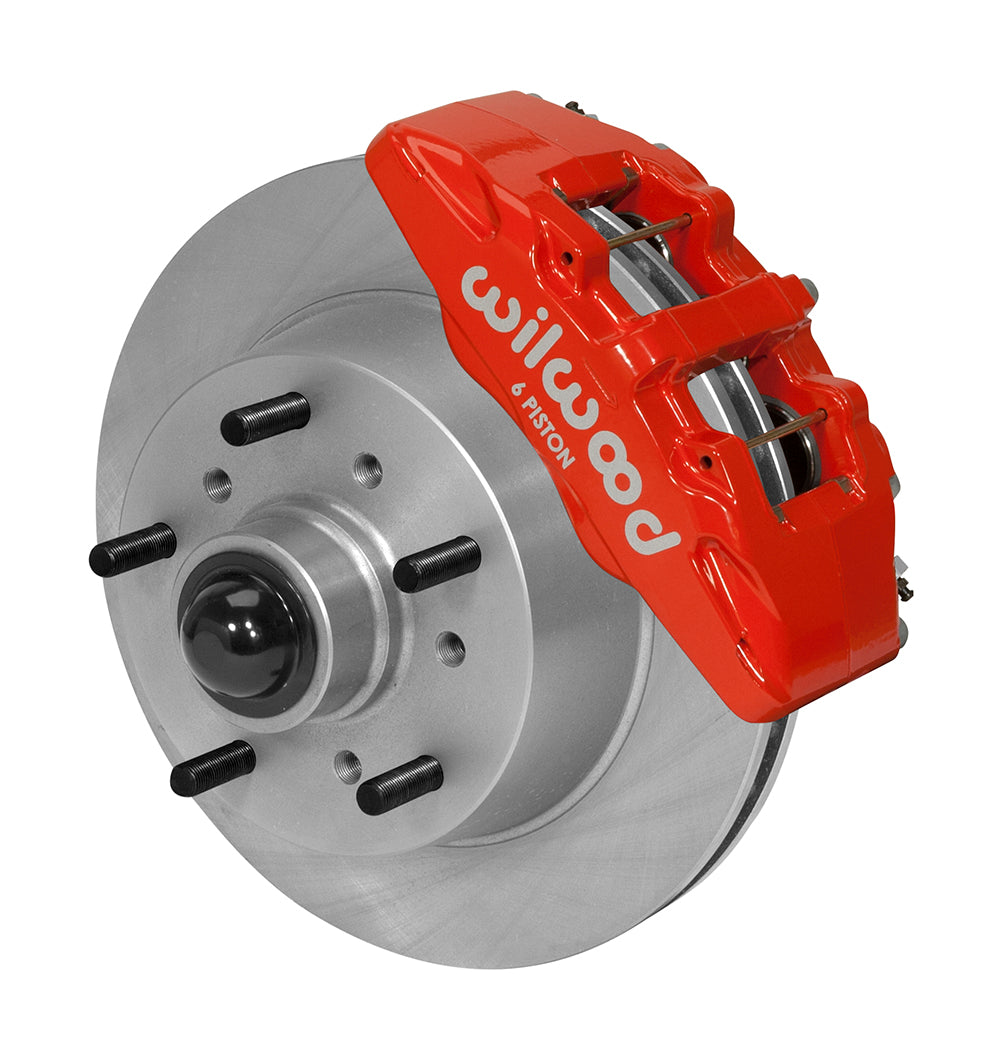

Wilwood Front Classic Series Brake Kit with Red Dynapro 6 Calipers & Dual-Pattern Rotor/Hubs for F-100 2WD (1968–1972)

This Wilwood Dynapro 6 kit is a front Classic Series disc conversion for 1968–1972 Ford F-100 2WD Drum Spindles. Six-piston Dynapro calipers are supplied with plain 11.75 x 1.10-inch integral rotor/hub castings. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

Technical Details

• Manufacturer part number: 140-14614-R.
• Match 5 x 4.5 in; 5 x 114.3 mm; 5 x 5.5 in; 5 x 139.7 mm at the wheel mounting pattern(s) interface, with 0.50 in; 12.70 mm as the listed stud diameter.
• Wheel-hub and rotor functions share one supplied iron component rather than a separate aluminum hub and hat.
• Iron forms the vented rotors. Each disc has a plain face, an outside diameter of 11.75 in; 298.45 mm and thickness of 1.10 in; 27.94 mm.
• Red Powder Coat Dynapro 6 calipers are supplied. Their forged aluminum bodies use the lug mounting arrangement with 6 stainless pistons in each caliper.
• Piston sizes listed by Wilwood are 1.62, 1.38, 1.38 inches, with BP-10 friction material in this kit.
• Hydraulic fitting interface on each caliper: 1/8-27 NPT.
• Published wheel minimum is 15 in; 381 mm, subject to the required inside-profile check. Rotor diameter is a separate measurement.
• The package excludes hydraulic hoses. Choose compatible connections and line length for the specific installation. Separate reference: 220-11237.
• Application-specific mounting hardware is supplied. Provide or retain the correct spindle, master cylinder and brake booster separately.
• Package quantity is one application-specific brake kit.

Fitment & Compatibility

This is the listed 1968–1972 F-100 4 x 2 factory drum-spindle application. Follow DS-1245 for the year-specific bearings, seals and locknut parts. The dual 5 x 4.50/5 x 5.50-inch pattern requires compatible wheels; earlier F-100 spindles use a different kit. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
