Wilwood Black Six-Piston Front Brake Conversion for 1968–1972 Ford F-100 2WD Drum Spindles, 11.75-Inch Rotors

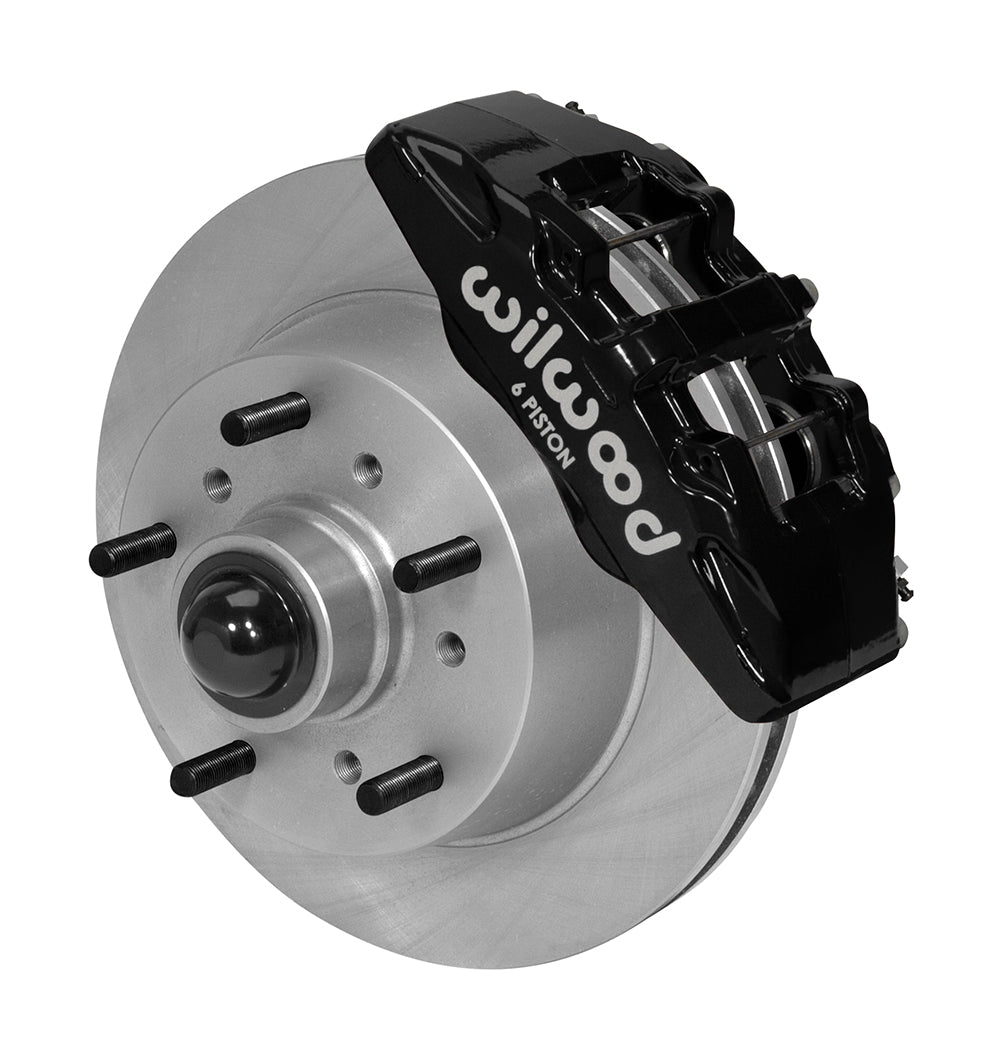

This Wilwood Dynapro 6 kit is a front Classic Series disc conversion for 1968–1972 Ford F-100 2WD Drum Spindles. Six-piston Dynapro calipers are supplied with plain 11.75 x 1.10-inch integral rotor/hub castings. The kit belongs to Wilwood Engineering's range of disc brake systems and components for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and produces calipers, rotors, master cylinders, valves, fittings and brake lines for complete brake-system planning.

Technical Details

• Manufacturer part number: 140-14614.
• Wheel mounting pattern(s) measure 5 x 4.5 in; 5 x 114.3 mm; 5 x 5.5 in; 5 x 139.7 mm. The associated listed stud diameter is 0.50 in; 12.70 mm.
• An integral iron rotor/hub replaces the drum assembly. The package does not contain an additional separate aluminum hub.
• The friction discs measure 11.75 in; 298.45 mm across and 1.10 in; 27.94 mm thick; plain face surfaces are used on vented Iron rotors.
• Each caliper carries 6 pistons made from stainless. The Dynapro 6 design uses forged aluminum, lug mounting and a Black Powder Coat finish.
• BP-10 pads are supplied; the listed bore dimensions are 1.62, 1.38, 1.38 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Start wheel selection at 15 in; 381 mm; the barrel and spokes still need checking against the caliper-clearance template.
• Order suitable flexlines separately; none are included. Match the chassis fittings and allow full steering/suspension travel. Separate reference: 220-11237.
• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Sold as a complete kit for the specified front installation.

Fitment & Compatibility

This is the listed 1968–1972 F-100 4 x 2 factory drum-spindle application. Follow DS-1245 for the year-specific bearings, seals and locknut parts. The dual 5 x 4.50/5 x 5.50-inch pattern requires compatible wheels; earlier F-100 spindles use a different kit. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
