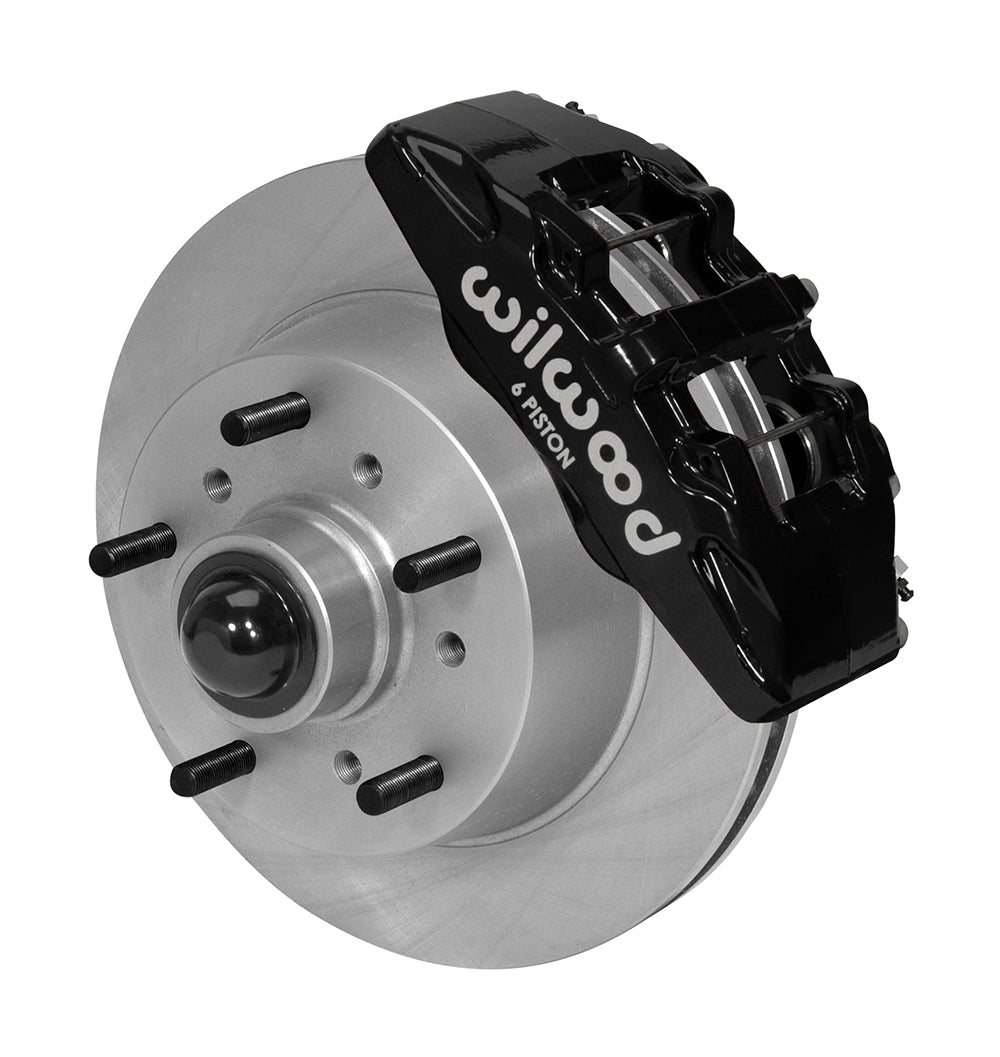

Wilwood Front Dynapro 6 Classic Brake Kit for Ford F-100 (1957–1967), Black Calipers & 11.75-Inch Integral-Hub Rotors

This Wilwood Dynapro 6 kit is a front drum-to-disc conversion for 1957–1967 Ford F-100 Drum Spindles. The Classic Series one-piece 11.75-inch iron rotor/hub accepts both 5 x 4.50- and 5 x 5.50-inch wheel patterns. From its Camarillo, California base, Wilwood Engineering designs disc brake systems for motorsport, street-performance and specialized needs. Founded in 1977 by Bill Wood, its range covers calipers, rotors, master cylinders, valves, fittings and brake lines chosen to work within a complete brake system.

Technical Details

• Manufacturer part number: 140-14607.
• The specified lug caliper is a Dynapro 6. It combines a Black Powder Coat forged aluminum body with 6 pistons per unit; the published piston material is stainless.
• When planning the line connection, account for the 1/8-27 NPT caliper inlet.
• Bores and friction material: 1.62, 1.38, 1.38 inches, with BP-10 pads supplied for the specified calipers.
• The vented discs have plain face friction surfaces and Iron construction. Nominal dimensions are 1.10 in; 27.94 mm through the braking section and 11.75 in; 298.45 mm at the outside edge.
• The listed stud diameter is 0.50 in; 12.70 mm; the matching wheel mounting pattern(s) are 5 x 4.5 in; 5 x 114.3 mm; 5 x 5.5 in; 5 x 139.7 mm. These describe different aspects of the attachment.
• Rotor and hub are supplied as a combined iron casting, distinct from a kit using separate aluminum wheel hubs and rotor hats.
• The supplied hardware mounts the specified brake package. It does not include replacement spindles, a brake booster or a master cylinder.
• Flexlines are excluded from the brake package. Select the chassis-specific hoses and confirm safe clearance throughout travel. Separate reference: 220-11237.
• The caliper package calls for at least the published 15 in; 381 mm wheel diameter, plus sufficient spoke and inner-barrel clearance.
• This is a kit listing; one package contains the brake components described above.

Fitment & Compatibility

Match the listed F-100 factory drum spindle and year group. The 1959–1967 listed applications specify 4 x 2. DS-1244 supplies a specific bearing/locknut arrangement; this is not the 1968–1972 spindle kit. Verify wheel pattern and clearance with the 15-inch minimum drawing. Models covered: F-100. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

DS-1244 specifies grease seal 44053 for 1957–1964 and 471424 for 1965–1967. Match the year-specific seal to the spindle before pressing it into the rotor/hub.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
