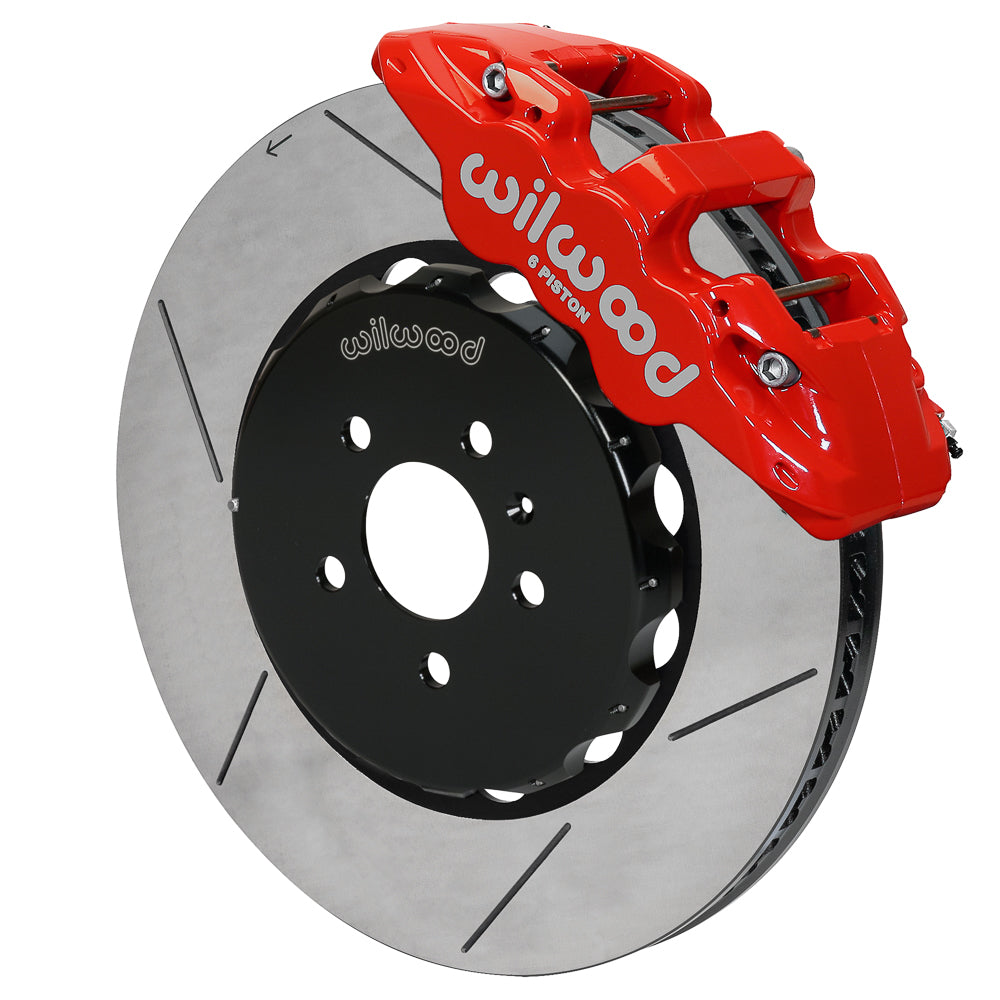

Wilwood Red AERO6 15-Inch GT Front Conversion for Listed Audi A4, A5, S4 and S5

This Wilwood AERO6 kit is a front 15-inch disc upgrade for Audi A4/A5/S4/S5 Listed B8 Applications. The 15-inch two-piece rotors are used with six-piston AERO6 calipers and the listed factory hub/spindle interface. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

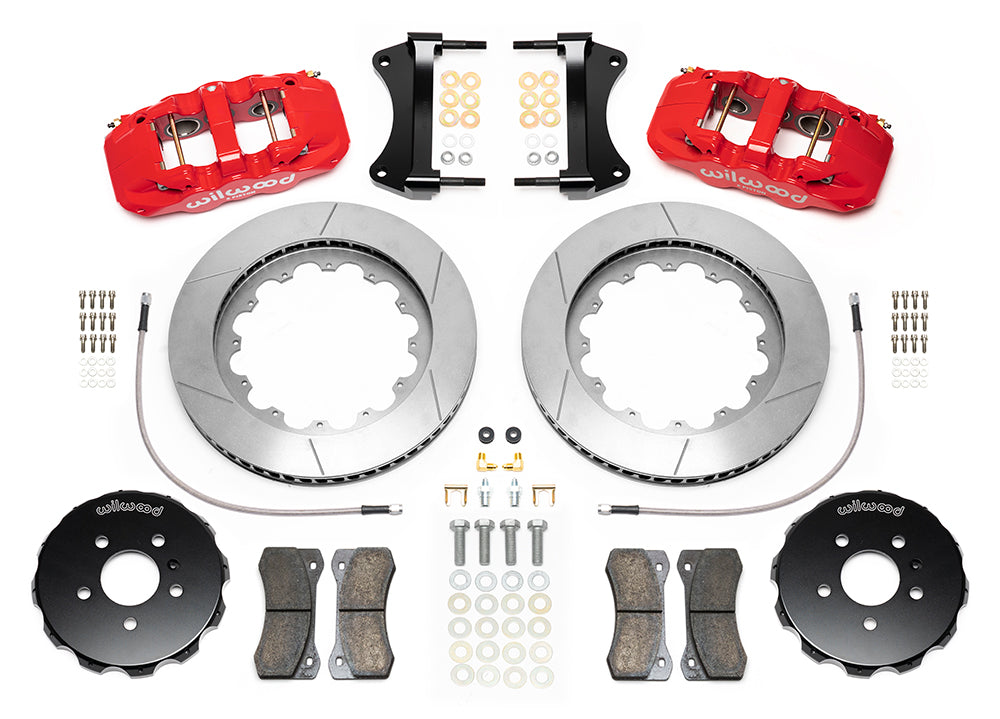

Technical Details

• Manufacturer part number: 140-14588-R.
• Spec-37 Iron forms the vented rotors. Each disc has a gt slotted face, an outside diameter of 15.00 in; 381 mm and thickness of 1.25 in; 31.75 mm.
• Red Powder Coat AERO6 calipers are supplied. Their forged aluminum bodies use the radial mounting arrangement with 6 stainless pistons in each caliper.
• Piston sizes listed by Wilwood are 1.62, 1.12, 1.12 inches, with BP-10 friction material in this kit.
• Hydraulic fitting interface on each caliper: 1/8-27 NPT.
• Match 5 x 4.41 in; 5 x 112.01 mm at the wheel mounting pattern(s) interface, with 0.590 in; 14.99 mm as the nominal hat stud-hole clearance diameter.
• Black E-Coat treatment covers the separate aluminum rotor hats.
• The package excludes wheel hubs. Check the retained hubs against the specified mounting interface.
• Published wheel minimum is 19 in; 482.6 mm, subject to the required inside-profile check. Rotor diameter is a separate measurement.
• Application-specific mounting hardware is supplied. Provide or retain the correct spindle, master cylinder and brake booster separately.
• The kit includes 220-14598 braided hydraulic lines, listed at 20.00 in. Verify the chassis connection on the actual application.
• Package quantity is one application-specific brake kit.

Fitment & Compatibility

Use the listed 2009 A4 Sedan/Wagon, 2010–2012 A4/S4, 2009–2012 S5 and 2010–2012 A5 Cabriolet entries. DS-1234 requires chassis-line bracket flattening and a 0.625-inch opening, plus upright grommet-bracket adjustment. A 19-inch nominal wheel still needs the exact template check. Models covered: A4, S5, A5 and S4. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
