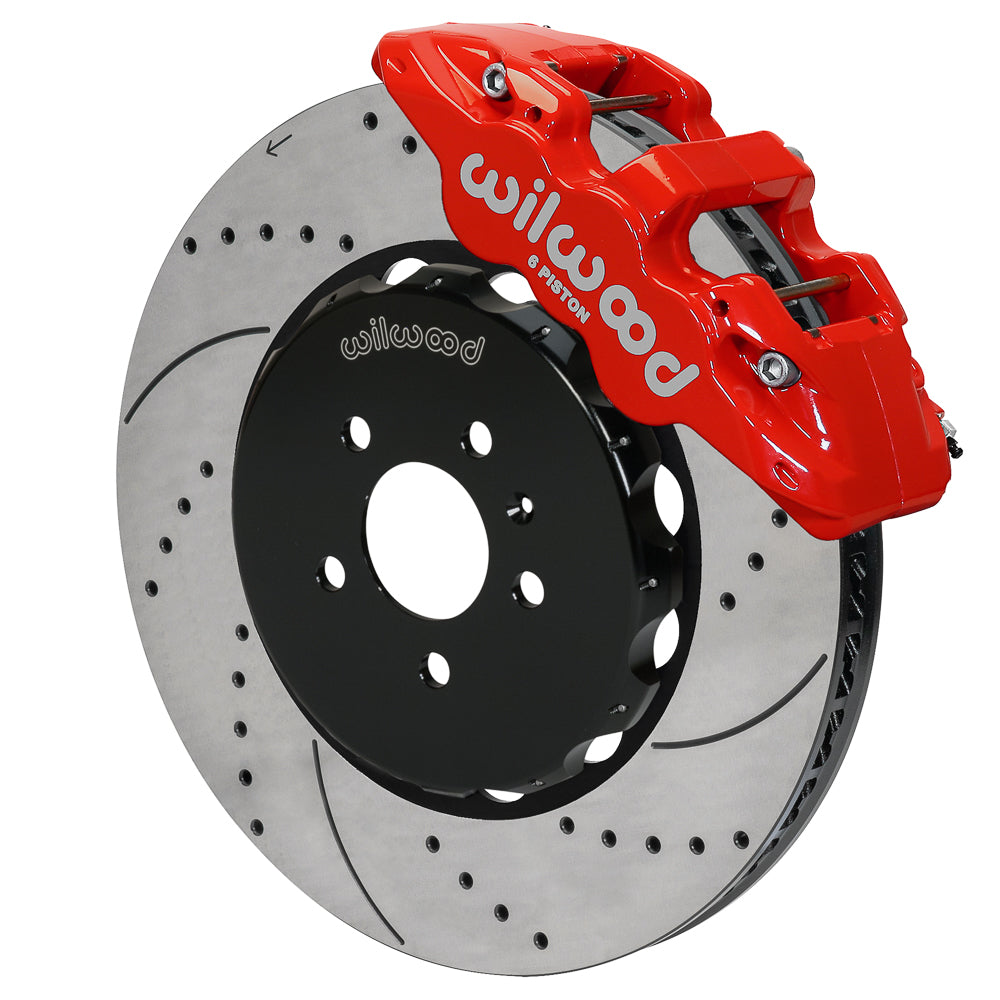

Wilwood Audi A4/A5/S4/S5 Front Brake Kit, Red AERO6 Calipers and 15-Inch SRP Discs

This Wilwood AERO6 kit is a front 15-inch disc upgrade for Audi A4/A5/S4/S5 Listed B8 Applications. The 15-inch two-piece rotors are used with six-piston AERO6 calipers and the listed factory hub/spindle interface. The kit belongs to Wilwood Engineering's range of disc brake systems and components for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and produces calipers, rotors, master cylinders, valves, fittings and brake lines for complete brake-system planning.

Technical Details

• Manufacturer part number: 140-14588-DR.
• The friction discs measure 15.00 in; 381 mm across and 1.25 in; 31.75 mm thick; srp drilled & slotted surfaces are used on vented Spec-37 Iron rotors.
• Each caliper carries 6 pistons made from stainless. The AERO6 design uses forged aluminum, radial mounting and a Red Powder Coat finish.
• BP-10 pads are supplied; the listed bore dimensions are 1.62, 1.12, 1.12 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Wheel mounting pattern(s) measure 5 x 4.41 in; 5 x 112.01 mm. The associated nominal hat stud-hole clearance diameter is 0.590 in; 14.99 mm.
• The rotor rings attach to separate aluminum hats with a Black E-Coat finish.
• Retain the compatible existing wheel hubs, which are not included in this kit.
• Start wheel selection at 19 in; 482.6 mm; the barrel and spokes still need checking against the caliper-clearance template.

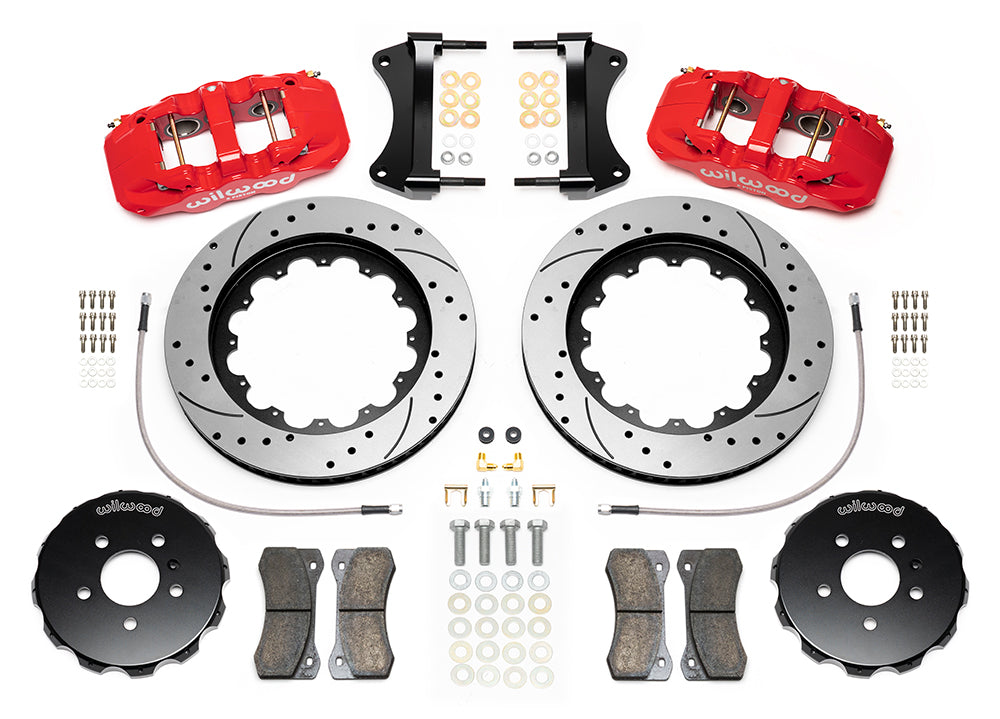

• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Braided hose kit 220-14598 is supplied; the published line length is 20.00 in. Check chassis fittings and full-travel routing.
• Sold as a complete kit for the specified front installation.

Fitment & Compatibility

Use the listed 2009 A4 Sedan/Wagon, 2010–2012 A4/S4, 2009–2012 S5 and 2010–2012 A5 Cabriolet entries. DS-1234 requires chassis-line bracket flattening and a 0.625-inch opening, plus upright grommet-bracket adjustment. A 19-inch nominal wheel still needs the exact template check. Models covered: A4, S5, A5 and S4. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
