Wilwood Black Six-Piston Audi Front Disc Package with 15-Inch Drilled/Slotted Rotors for A4, A5, S4 and S5

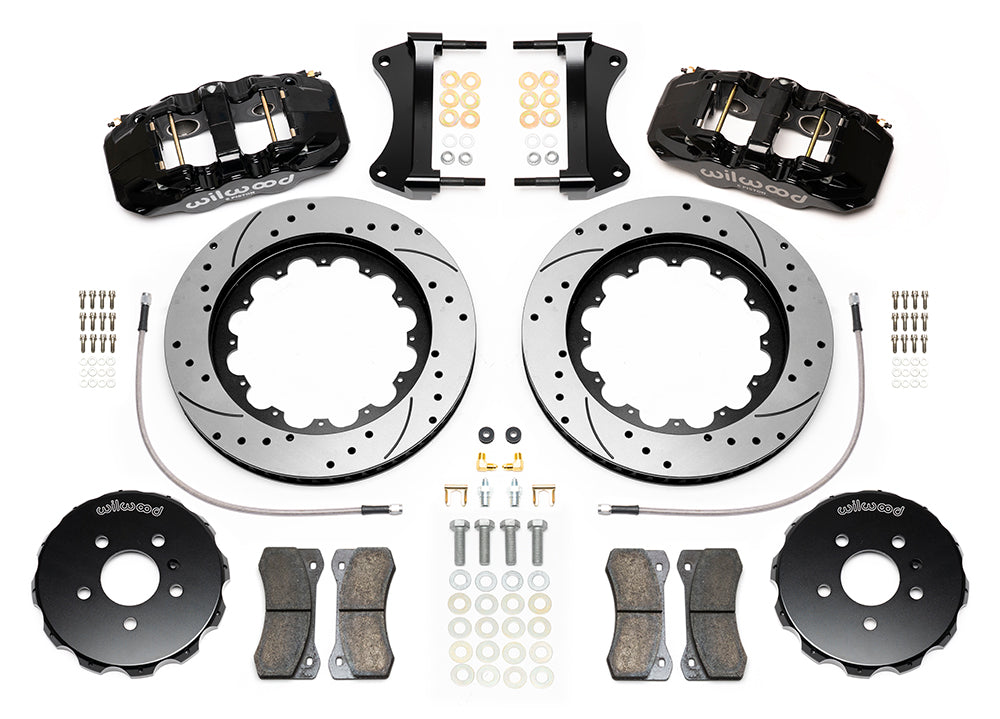

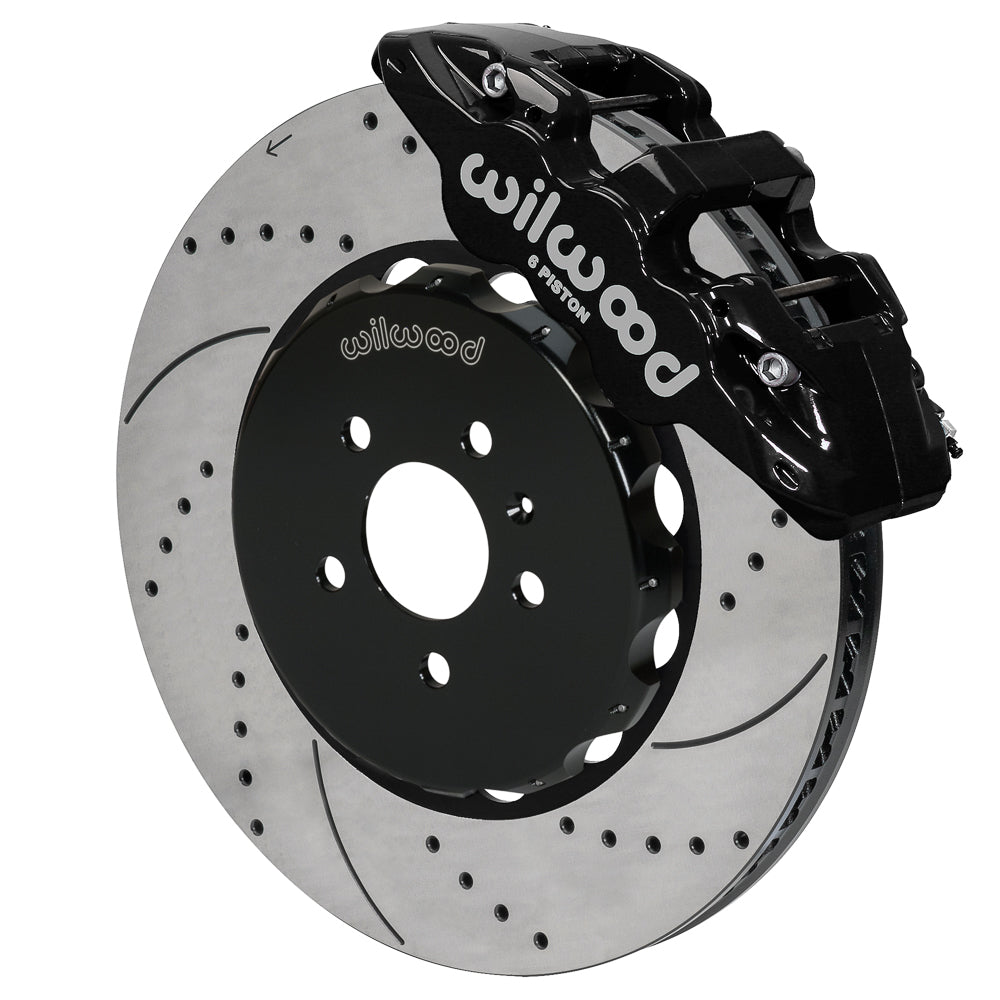

This Wilwood AERO6 kit is a front 15-inch disc upgrade for Audi A4/A5/S4/S5 Listed B8 Applications. The 15-inch two-piece rotors are used with six-piston AERO6 calipers and the listed factory hub/spindle interface. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. The manufacturer supplies disc brake systems for motorsport, street-performance and specialized applications, including calipers, rotors, master cylinders, valves, fittings and brake lines that must work together as a complete system.

Technical Details

• Manufacturer part number: 140-14588-D.
• Rotor outside diameter: 15.00 in; 381 mm; thickness: 1.25 in; 31.75 mm. Construction is vented Spec-37 Iron, with srp drilled & slotted faces.
• Caliper specification: AERO6; 6 stainless pistons per caliper, forged aluminum body and radial mounting. Finish: Black Powder Coat.
• Published piston bores: 1.62, 1.12, 1.12 inches. Supplied pad compound: BP-10.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Wheel mounting pattern(s): 5 x 4.41 in; 5 x 112.01 mm; nominal hat stud-hole clearance diameter: 0.590 in; 14.99 mm.
• Separate rotor hats: aluminum, finished in Black E-Coat.
• No wheel hubs are supplied; use the documented existing hub arrangement.
• Minimum nominal wheel diameter: 19 in; 482.6 mm. The actual inner profile must pass the kit clearance drawing.
• Mounting hardware is included; spindles, master cylinder and brake booster are not supplied.
• Included braided flexlines: kit 220-14598, with 20.00 in hose length. Confirm fitting compatibility and routing.
• Quantity: one brake kit for the stated axle/application.

Fitment & Compatibility

Use the listed 2009 A4 Sedan/Wagon, 2010–2012 A4/S4, 2009–2012 S5 and 2010–2012 A5 Cabriolet entries. DS-1234 requires chassis-line bracket flattening and a 0.625-inch opening, plus upright grommet-bracket adjustment. A 19-inch nominal wheel still needs the exact template check. Models covered: A4, S5, A5 and S4. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
