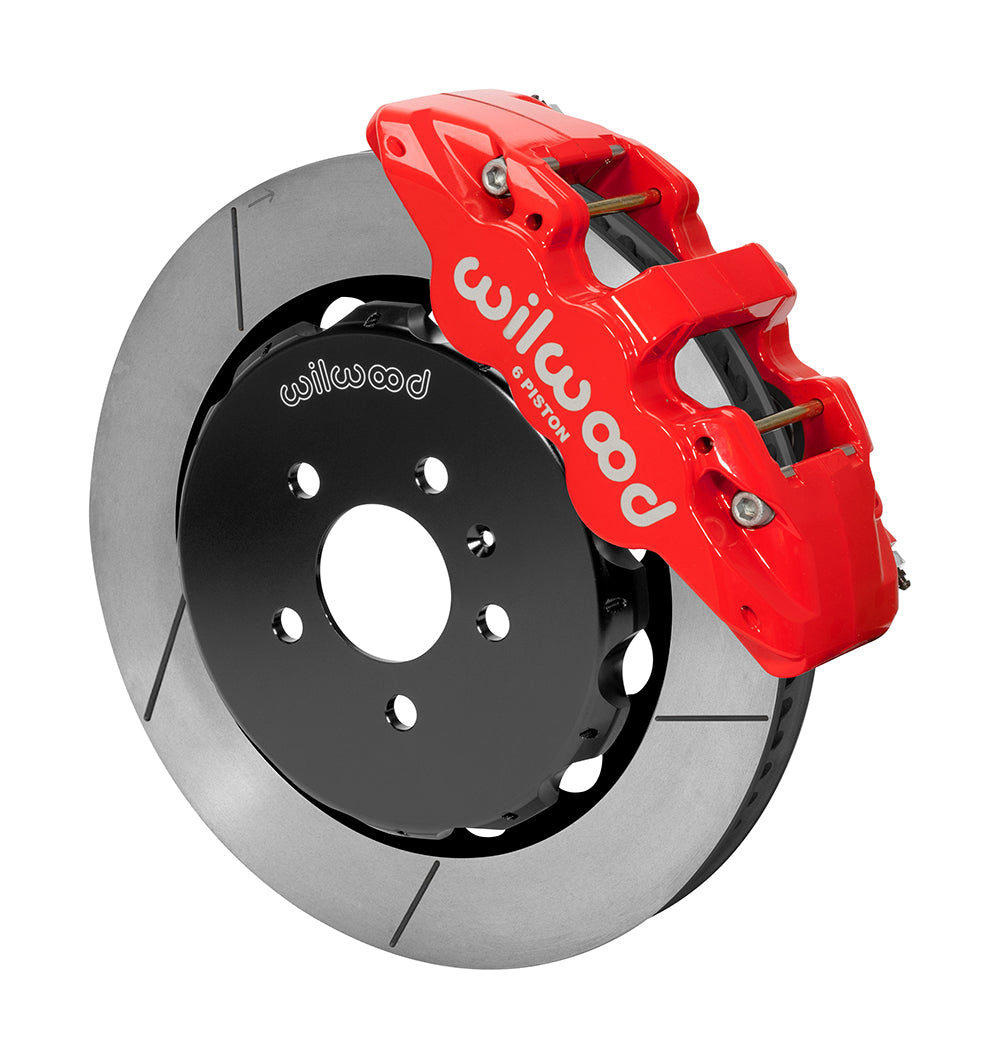

Wilwood Audi Front Slotted-Rotor Package with Red AERO6 Calipers, 14-Inch Discs for A4, A5, S4 and S5

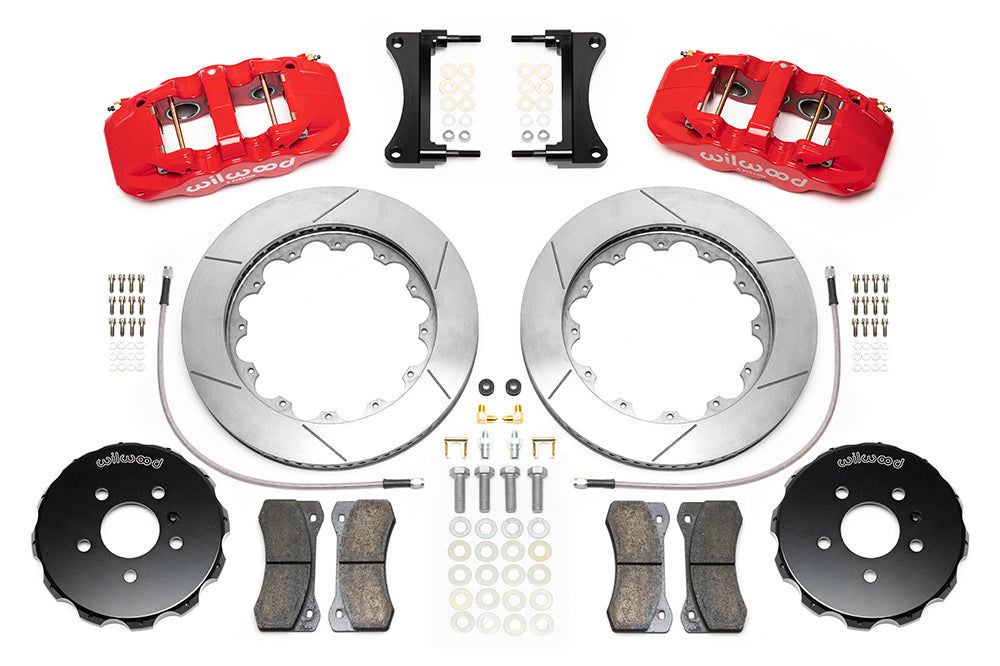

This Wilwood AERO6 kit is a front 14-inch disc upgrade for Audi A4, A5, S4 and S5. AERO6 six-piston calipers act on 14 x 1.25-inch rotors, with application-specific hats and braided lines. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs disc brake systems and components for racing, performance-road and specialized use, from calipers and rotors to master cylinders, valves, fittings and brake lines; the complete system determines component selection.

Technical Details

• Manufacturer part number: 140-14584-R.
• Match the AERO6 caliper architecture when selecting related components: radial attachment, 6 stainless pistons, forged aluminum body and Red Powder Coat finish.
• Pad selection is BP-10; piston-bore measurements are 1.62, 1.12, 1.12 inches. Confirm those values for any system changes.
• For rotor replacement, match all four specifications: 14.00 in; 355.6 mm outside diameter, 1.25 in; 31.75 mm thickness, Spec-37 Iron and the gt slotted surface. Rotor construction: vented.
• For the rotor-to-hub interface, the kit supplies separate aluminum hats finished in Black E-Coat.
• The kit does not supply replacement hubs; confirm the dimensions of those already installed.
• Attachment dimensions to confirm are 5 x 4.41 in; 5 x 112.01 mm for the wheel mounting pattern(s) and 0.590 in; 14.99 mm for the nominal hat stud-hole clearance diameter.
• Use a compatible hose adapter for the caliper's 1/8-27 NPT inlet.
• Included installation parts cover the kit mounting hardware, with spindles, brake booster and master cylinder excluded.
• Before ordering wheels, check the full inside profile against the drawing and the published 18 in; 457.2 mm minimum diameter.
• The braided flexline package is 220-14598, supplied in a listed 20.00 in length. Inspect end connections and routing before use.
• One brake kit is supplied for the specified application and axle position.

Fitment & Compatibility

The applications include 2009 A4 Sedan/Wagon, 2010–2012 A4/S4, 2009–2012 S5 and 2010–2012 A5 Cabriolet. Verify the exact body/year entry. DS-1233 requires the chassis hose bracket to be flattened/opened to 0.625 inch and the upright grommet bracket adjusted for the new line. Models covered: A4, S5, A5 and S4. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
