Wilwood Red AERO6 Front Conversion, 14-Inch Drilled/Slotted Discs for Audi A4/A5/S4/S5 Applications

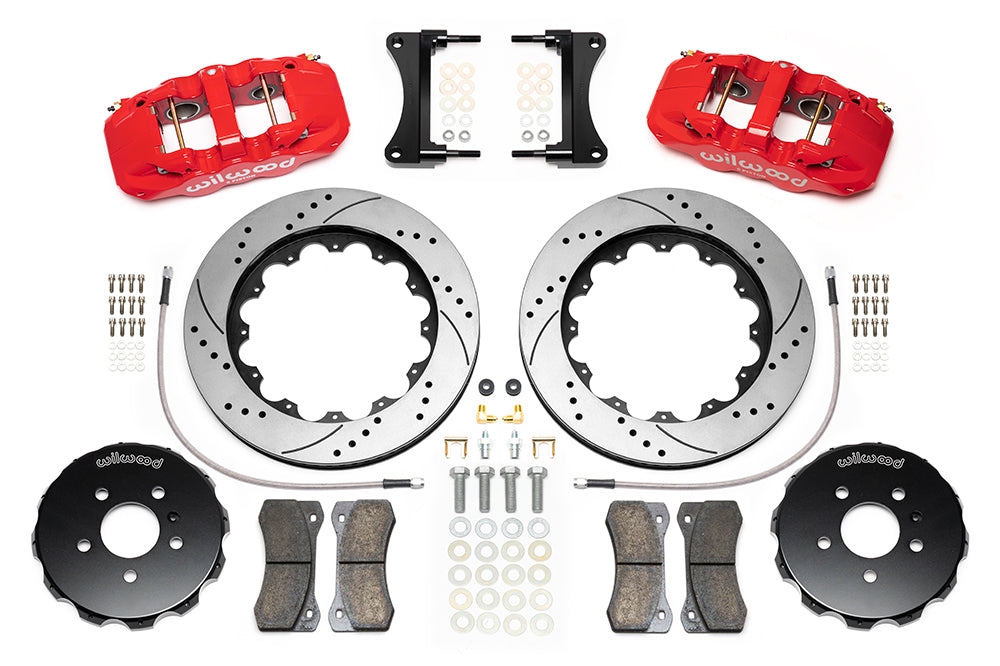

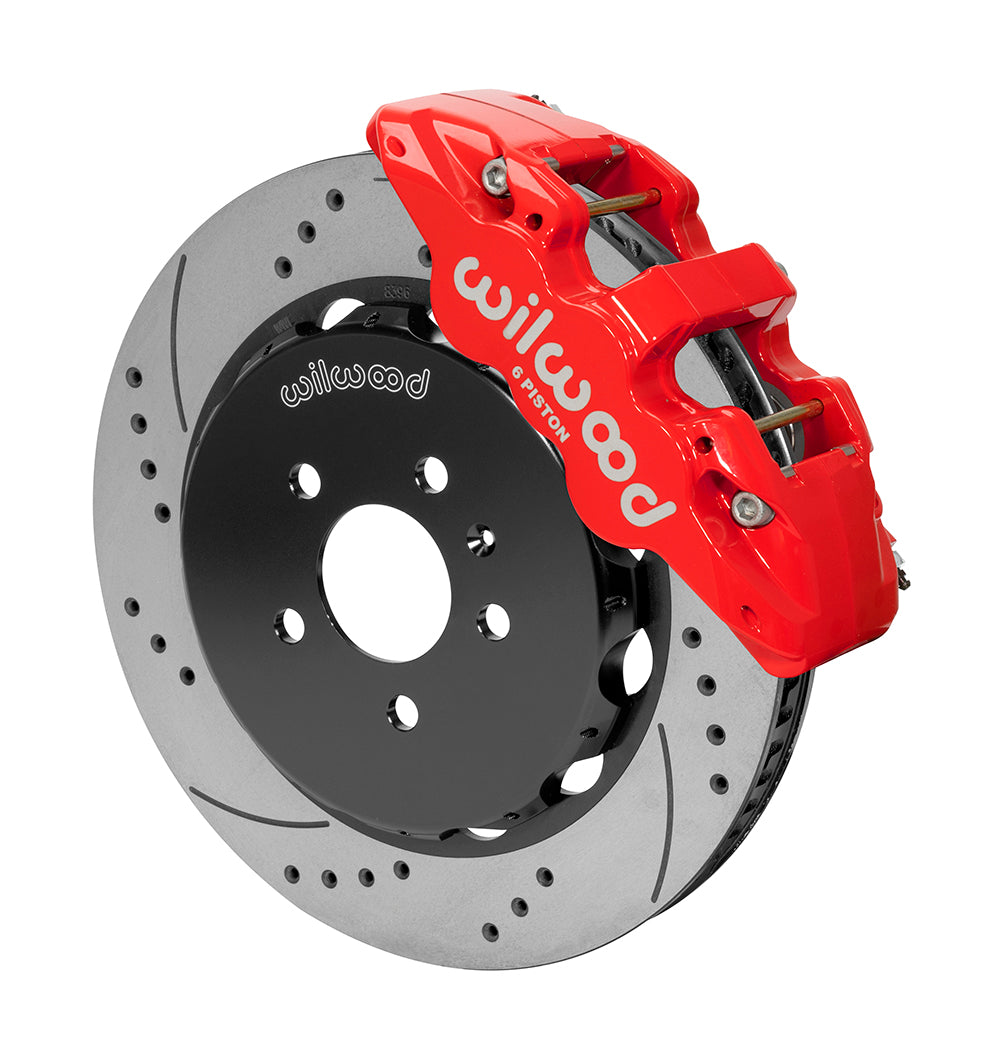

This Wilwood AERO6 kit is a front 14-inch disc upgrade for Audi A4, A5, S4 and S5. AERO6 six-piston calipers act on 14 x 1.25-inch rotors, with application-specific hats and braided lines. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc brake systems for motorsport, street-performance and specialized applications. Its calipers, rotors, master cylinders, valves, fittings and brake lines must be selected as parts of a complete, matched braking system.

Technical Details

• Manufacturer part number: 140-14584-DR.
• Caliper bodies are forged aluminum, with Red Powder Coat treatment. This is the radial-mounted AERO6 version, using 6 stainless pistons per caliper.
• This configuration uses BP-10 brake pads with caliper bores listed as 1.62, 1.12, 1.12 inches.
• Across the rotor face the measurement is 14.00 in; 355.6 mm; the braking section is 1.25 in; 31.75 mm thick. Both discs use the specified vented Spec-37 Iron design and srp drilled & slotted finish.
• The supplied aluminum hats are separate from the friction rings and carry a Black E-Coat finish.
• Wheel hubs are separate from this kit and must match the documented existing assembly.
• For this kit the published wheel mounting pattern(s) are 5 x 4.41 in; 5 x 112.01 mm. Check the specified 0.590 in; 14.99 mm nominal hat stud-hole clearance diameter.
• Fluid enters through a 1/8-27 NPT caliper port; match the adapter accordingly.
• Mounting hardware accompanies the brake components; the vehicle's spindle, master cylinder and booster are separate items.
• The stated wheel requirement is 18 in; 457.2 mm. Nominal diameter alone does not establish clearance around the caliper and rotor.
• Brake hoses are included: 220-14598, 20.00 in. Confirm adequate travel and the correct chassis-side fittings during assembly.
• The components are sold together as one kit for the stated installation.

Fitment & Compatibility

The applications include 2009 A4 Sedan/Wagon, 2010–2012 A4/S4, 2009–2012 S5 and 2010–2012 A5 Cabriolet. Verify the exact body/year entry. DS-1233 requires the chassis hose bracket to be flattened/opened to 0.625 inch and the upright grommet bracket adjusted for the new line. Models covered: A4, S5, A5 and S4. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
