Wilwood AERO6 Black Front Disc Upgrade for Audi A4/A5/S4/S5, 14-Inch GT Rotors and Braided Hoses

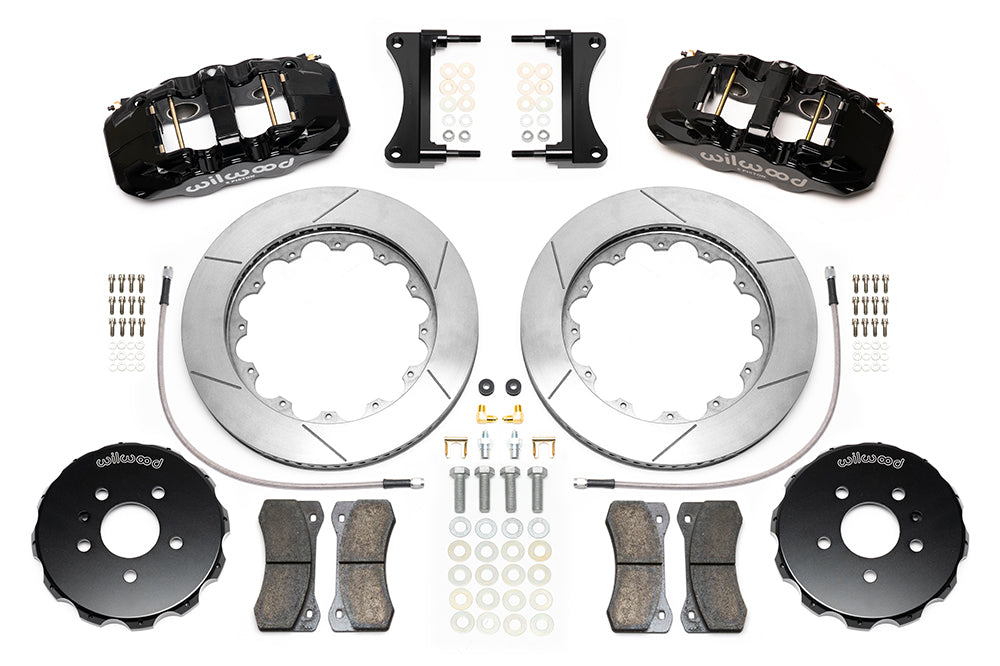

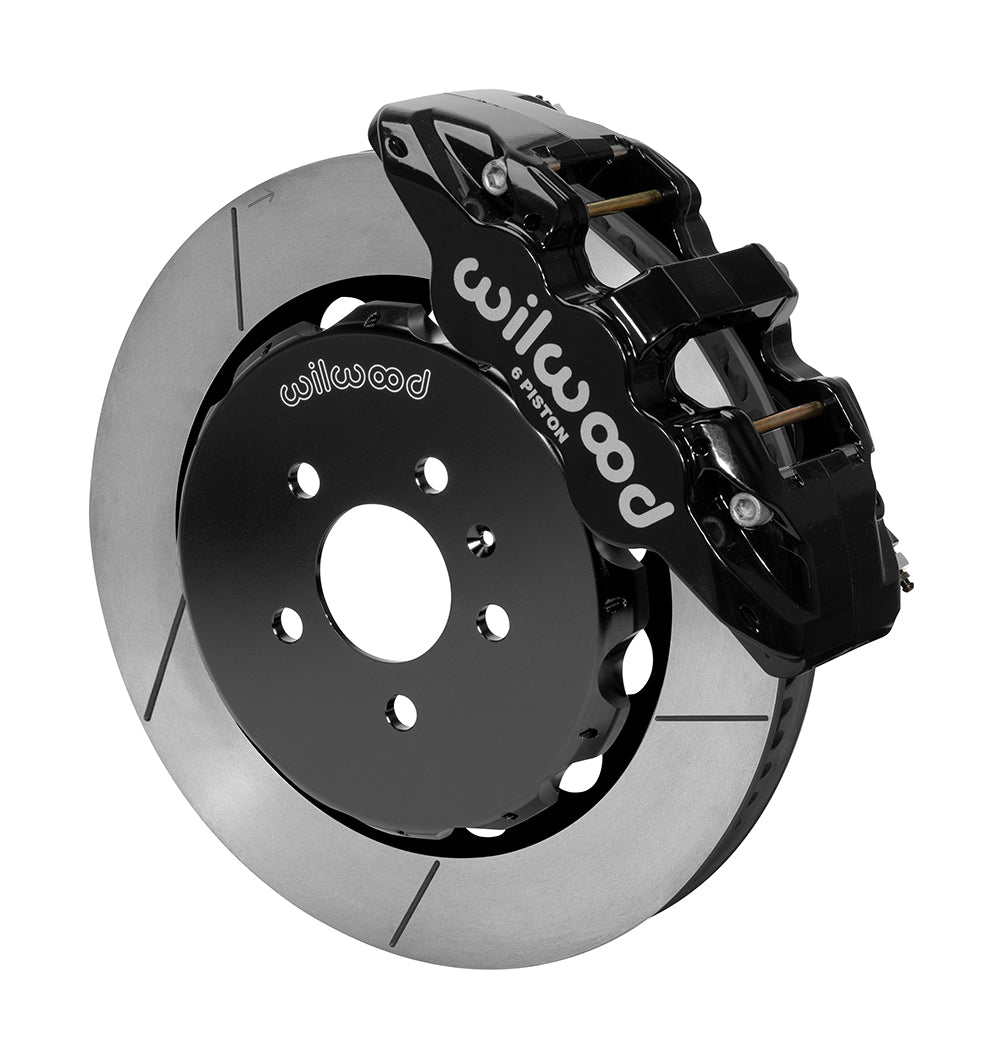

This Wilwood AERO6 kit is a front 14-inch disc upgrade for Audi A4, A5, S4 and S5. AERO6 six-piston calipers act on 14 x 1.25-inch rotors, with application-specific hats and braided lines. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

Technical Details

• Manufacturer part number: 140-14584.
• 5 x 4.41 in; 5 x 112.01 mm is the listed wheel mounting pattern(s) dimension. Nominal hat stud-hole clearance diameter: 0.590 in; 14.99 mm.
• Existing verified wheel hubs remain in service; replacement hubs are not supplied.
• Friction surface and size: gt slotted; 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thickness. The rotor material is Spec-37 Iron in a vented design.
• This is a two-piece disc arrangement using aluminum hats in Black E-Coat.
• The calipers are AERO6 units with a Black Powder Coat exterior. A forged aluminum body locates 6 stainless pistons; attachment is radial mount.
• The matched pads use BP-10. Manufacturer bore figures for the caliper are 1.62, 1.12, 1.12 inches.
• The caliper accepts the listed 1/8-27 NPT hydraulic connection.
• Wheel minimum: 18 in; 457.2 mm. Confirm the complete wheel shape and mounting hardware clear the brake drawing.
• Flexible lines are provided as kit 220-14598; length is 20.00 in. Route them clear of suspension, wheels and rotors.
• No spindle, booster or master cylinder is included; the kit does contain mounting hardware for the stated installation.
• This listing supplies one kit for the documented brake configuration.

Fitment & Compatibility

The applications include 2009 A4 Sedan/Wagon, 2010–2012 A4/S4, 2009–2012 S5 and 2010–2012 A5 Cabriolet. Verify the exact body/year entry. DS-1233 requires the chassis hose bracket to be flattened/opened to 0.625 inch and the upright grommet bracket adjusted for the new line. Models covered: A4, S5, A5 and S4. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
