Wilwood Red Six-Piston Front Brakes with 14-Inch Drilled/Slotted Rotors for Six-Lug Tacoma, 4Runner, FJ Cruiser and Lexus GX

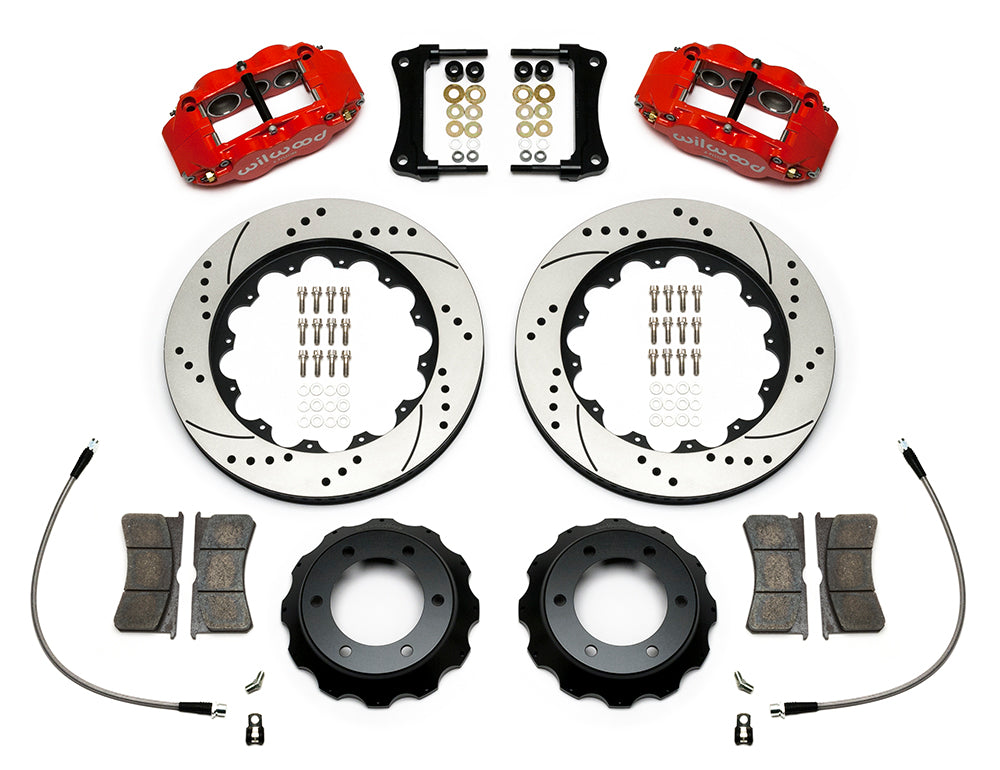

This Wilwood Superlite 6R kit is a front 14-inch brake upgrade for Toyota Tacoma/4Runner/FJ Cruiser and Lexus GX. The larger 14-inch Spec-37 rotors retain the application-specific six-lug hats and supplied braided lines. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. The manufacturer supplies disc brake systems for motorsport, street-performance and specialized applications, including calipers, rotors, master cylinders, valves, fittings and brake lines that must work together as a complete system.

Technical Details

• Manufacturer part number: 140-14578-DR.
• Wheel mounting pattern(s) measure 6 X 5.5 in; 6 X 139.7 mm. The associated nominal hat stud-hole clearance diameter is 0.520 in; 13.21 mm.
• Retain the compatible existing wheel hubs, which are not included in this kit.
• The friction discs measure 14.00 in; 355.6 mm across and 1.10 in; 27.94 mm thick; srp drilled & slotted surfaces are used on vented Spec-37 Iron rotors.
• The rotor rings attach to separate aluminum hats with a Black E-Coat finish.

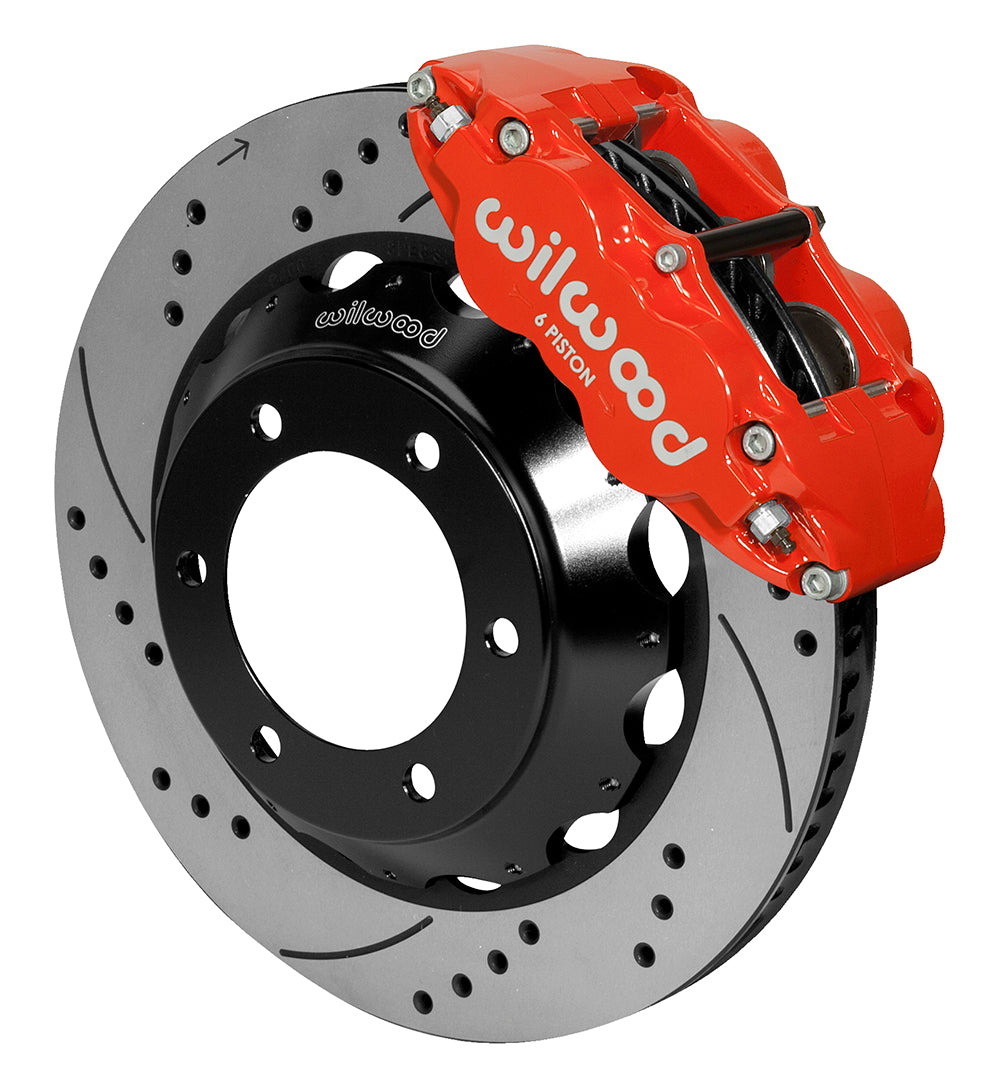

• Each caliper carries 6 pistons made from stainless. The Superlite 6R design uses forged aluminum, radial mounting and a Red Powder Coat finish.
• BP-10 pads are supplied; the listed bore dimensions are 1.75, 1.25, 1.25 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Start wheel selection at 18 in; 457.2 mm; the barrel and spokes still need checking against the caliper-clearance template.
• Braided hose kit 220-14618 is supplied; the published line length is 20.00 in. Check chassis fittings and full-travel routing.
• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Sold as a complete kit for the specified front installation.

Fitment & Compatibility

For the listed six-lug Tacoma 4 x 2/4 x 4 trims, 4Runner, FJ Cruiser, GX470 and GX460, verify the exact year and submodel rather than assuming all Toyota trucks share the hub. Dust-shield cutting is required by DS-1232; inspect full steering and suspension clearance. Models covered: GX470, 4Runner, Tacoma, FJ Cruiser and GX460. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
