Wilwood 14-Inch Front Brake Upgrade for Toyota Tacoma/4Runner/FJ Cruiser and Lexus GX, Black Superlite Calipers

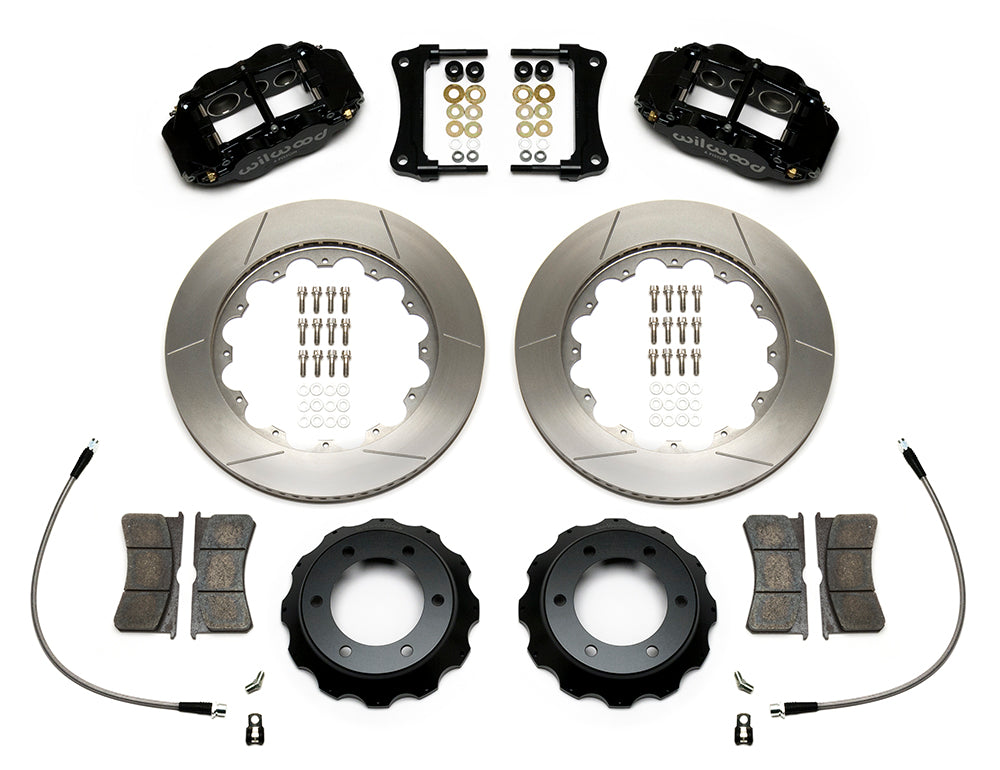

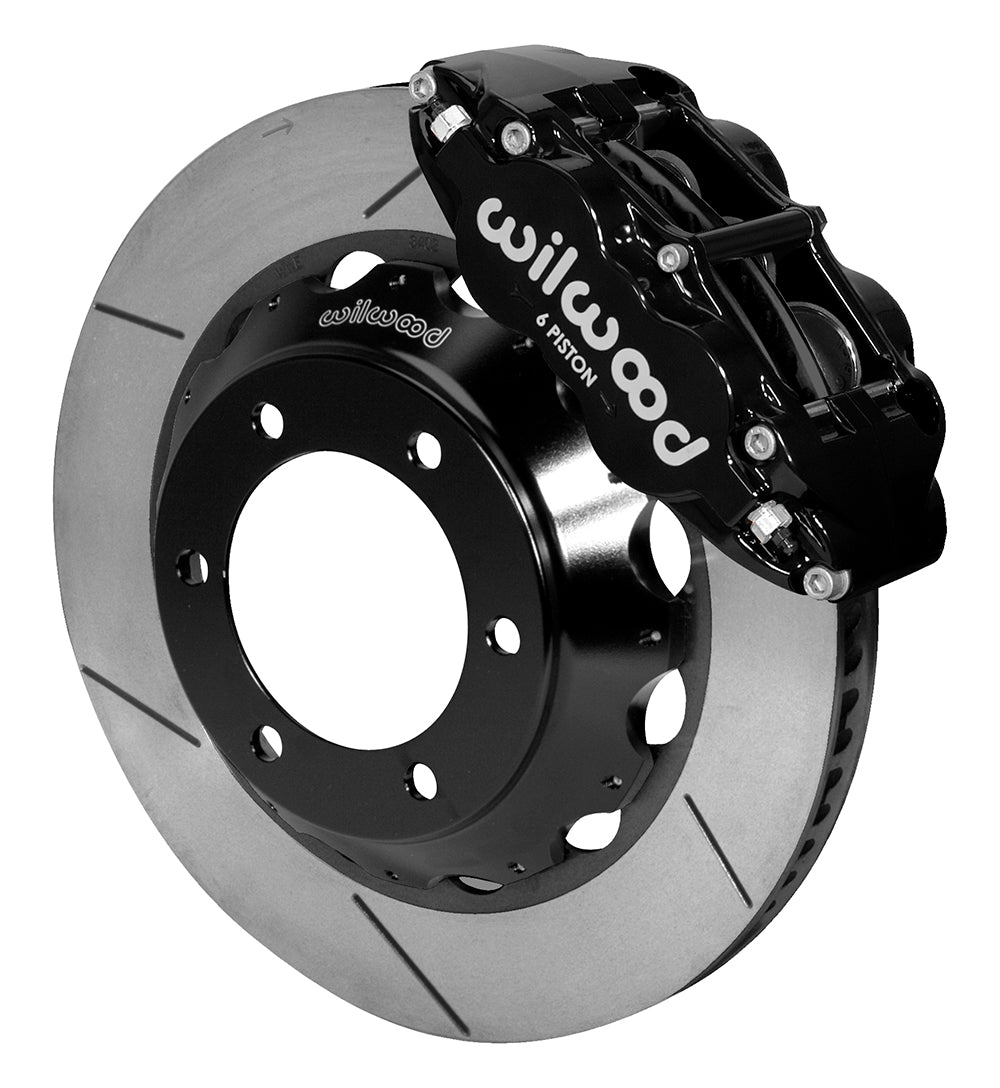

This Wilwood Superlite 6R kit is a front 14-inch brake upgrade for Toyota Tacoma/4Runner/FJ Cruiser and Lexus GX. The larger 14-inch Spec-37 rotors retain the application-specific six-lug hats and supplied braided lines. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures complete disc brake systems and individual calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized installations.

Technical Details

• Manufacturer part number: 140-14578.
• The specified radial caliper is a Superlite 6R. It combines a Black Powder Coat forged aluminum body with 6 pistons per unit; the published piston material is stainless.
• When planning the line connection, account for the 1/8-27 NPT caliper inlet.
• Bores and friction material: 1.75, 1.25, 1.25 inches, with BP-10 pads supplied for the specified calipers.
• The vented discs have gt slotted friction surfaces and Spec-37 Iron construction. Nominal dimensions are 1.10 in; 27.94 mm through the braking section and 14.00 in; 355.6 mm at the outside edge.
• Aluminum hats with Black E-Coat finish complete the two-piece rotor assembly.
• The nominal hat stud-hole clearance diameter is 0.520 in; 13.21 mm; the matching wheel mounting pattern(s) are 6 X 5.5 in; 6 X 139.7 mm. These describe different aspects of the attachment.
• Use the specified original or compatible existing hubs. The kit contains no wheel hubs.
• The supplied hardware mounts the specified brake package. It does not include replacement spindles, a brake booster or a master cylinder.
• Supplied line kit 220-14618 provides the braided brake hoses; the stated length is 20.00 in. Verify both ends and clearance through full travel.
• The caliper package calls for at least the published 18 in; 457.2 mm wheel diameter, plus sufficient spoke and inner-barrel clearance.
• This is a kit listing; one package contains the brake components described above.

Fitment & Compatibility

For the listed six-lug Tacoma 4 x 2/4 x 4 trims, 4Runner, FJ Cruiser, GX470 and GX460, verify the exact year and submodel rather than assuming all Toyota trucks share the hub. Dust-shield cutting is required by DS-1232; inspect full steering and suspension clearance. Models covered: GX470, 4Runner, Tacoma, FJ Cruiser and GX460. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
