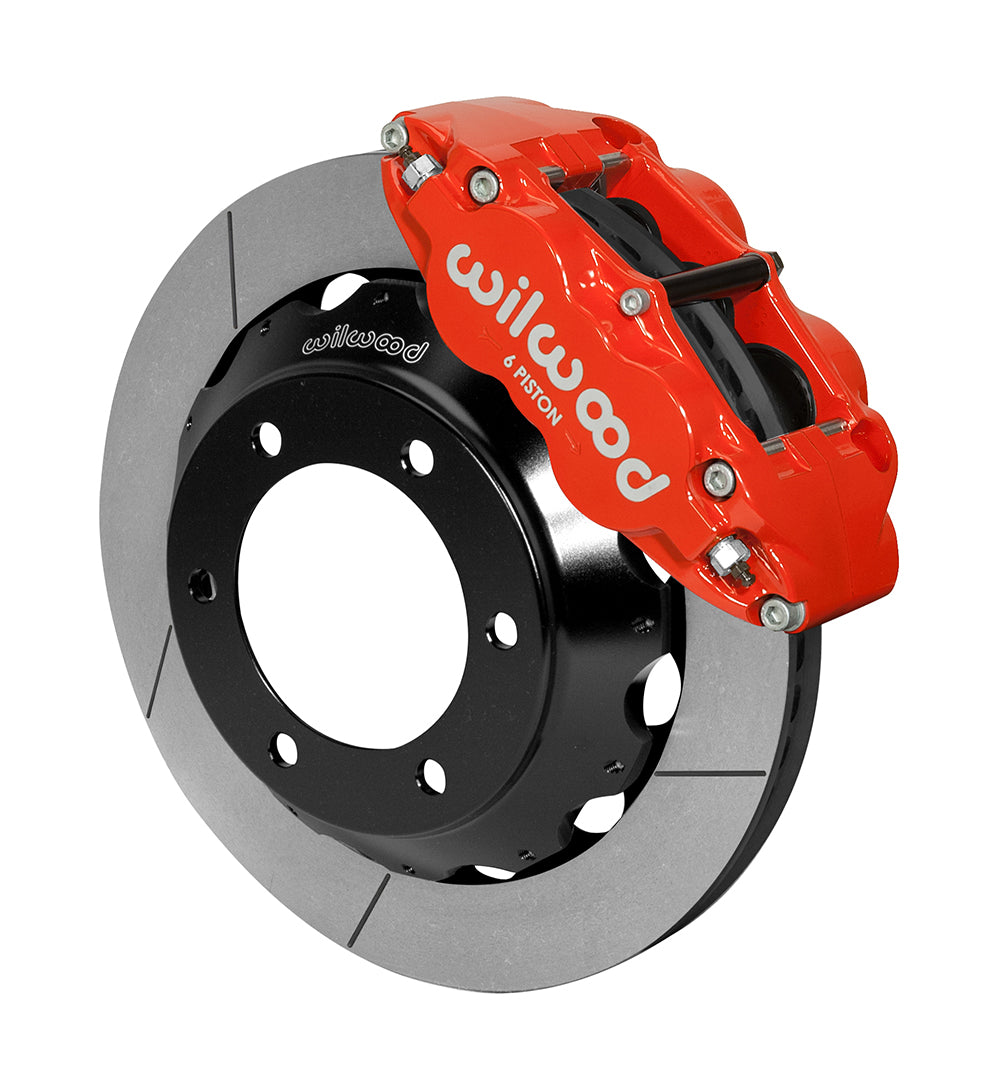

Wilwood Six-Lug Toyota/Lexus Front GT Brake Package, Red Superlite 6R Calipers and 12.88-Inch Discs

This Wilwood Superlite 6R kit is a front six-lug disc upgrade for Tacoma, 4Runner, FJ Cruiser and Lexus GX470/GX460. A 12.88-inch rotor diameter pairs with six-piston Superlite calipers for the listed Toyota/Lexus six-lug platforms. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs disc brake systems and components for racing, performance-road and specialized use, from calipers and rotors to master cylinders, valves, fittings and brake lines; the complete system determines component selection.

Technical Details

• Manufacturer part number: 140-14577-R.
• Match the Superlite 6R caliper architecture when selecting related components: radial attachment, 6 stainless pistons, forged aluminum body and Red Powder Coat finish.
• Use a compatible hose adapter for the caliper's 1/8-27 NPT inlet.
• Pad selection is BP-10; piston-bore measurements are 1.75, 1.25, 1.25 inches. Confirm those values for any system changes.
• For rotor replacement, match all four specifications: 12.88 in; 327.15 mm outside diameter, 1.10 in; 27.94 mm thickness, Spec-37 Iron and the gt slotted surface. Rotor construction: vented.
• For the rotor-to-hub interface, the kit supplies separate aluminum hats finished in Black E-Coat.
• Attachment dimensions to confirm are 6 X 5.5 in; 6 X 139.7 mm for the wheel mounting pattern(s) and 0.520 in; 13.21 mm for the nominal hat stud-hole clearance diameter.
• The kit does not supply replacement hubs; confirm the dimensions of those already installed.

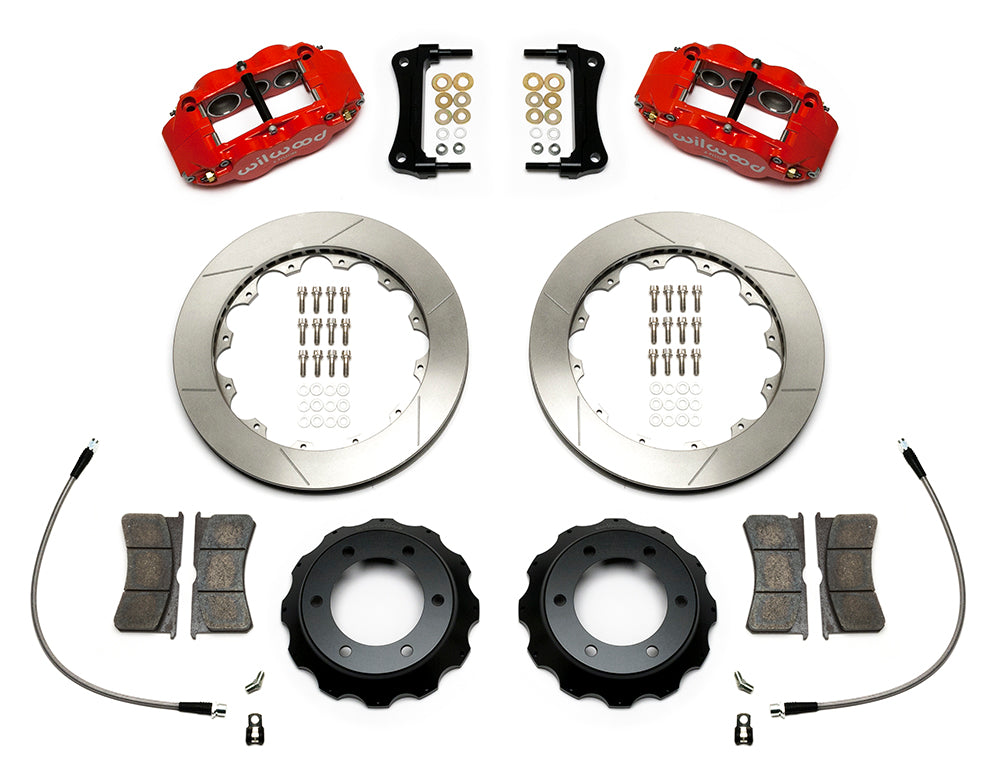

• Included installation parts cover the kit mounting hardware, with spindles, brake booster and master cylinder excluded.
• The braided flexline package is 220-14618, supplied in a listed 20.00 in length. Inspect end connections and routing before use.
• Before ordering wheels, check the full inside profile against the drawing and the published 17 in; 431.8 mm minimum diameter.
• One brake kit is supplied for the specified application and axle position.

Fitment & Compatibility

Match every listed year/trim:Tacoma requires the specified six-lug 4 x 2 or 4 x 4 configuration, including the later individual trim rows. The additional applications are 4Runner, FJ Cruiser, GX470 and GX460. DS-1231 requires dust-shield cutting; confirm hub register, 6 x 5.50-inch pattern and wheel profile. Models covered: GX470, 4Runner, Tacoma, FJ Cruiser and GX460. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
