Wilwood Red TX6R Rear Brakes for Ford F-250/F-350 Super Duty 4WD SRW, 15.50-Inch Rotors

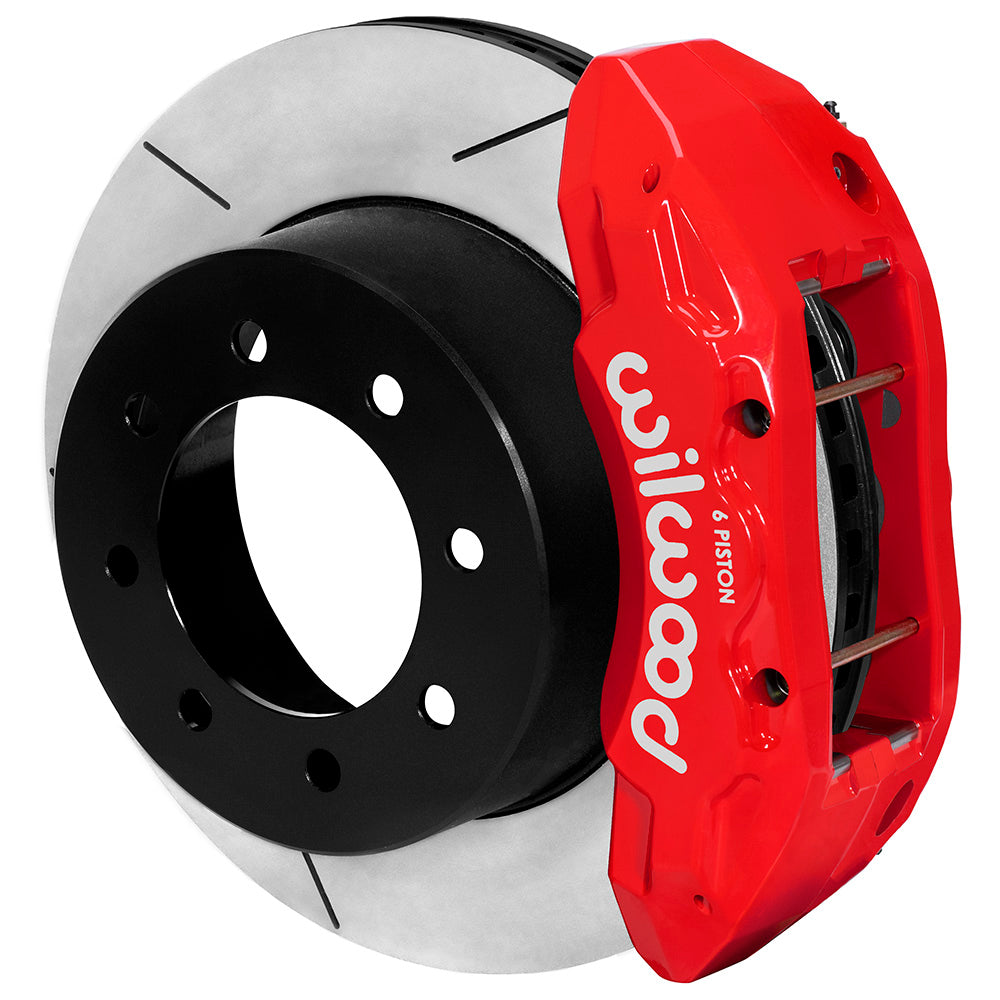

This Wilwood TX6R kit is a rear heavy-duty disc upgrade retaining OE parking brakes for Ford Super Duty F-250/F-350 4WD with Single Rear Wheels. The rear package uses 15.50-inch GTB iron rotor/hat castings and six-piston TX6R calipers, with braided hoses included. The kit belongs to Wilwood Engineering's range of disc brake systems and components for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and produces calipers, rotors, master cylinders, valves, fittings and brake lines for complete brake-system planning.

Technical Details

• Manufacturer part number: 140-14559-R.
• Iron forms the vented rotors. Each disc has a gt slotted face, an outside diameter of 15.50 in; 393.7 mm and thickness of 1.38 in; 35.05 mm.
• Red Powder Coat TX6R calipers are supplied. Their forged aluminum bodies use the radial mounting arrangement with 6 stainless pistons in each caliper.
• Piston sizes listed by Wilwood are 1.62, 1.38, 1.38 inches, with BP-22 friction material in this kit.
• Hydraulic fitting interface on each caliper: 1/8-27 NPT.
• Match 8 x 6.69 in; 8 x 169.93 mm at the wheel mounting pattern(s) interface, with 0.64 in; 16.26 mm as the listed stud diameter.
• The iron rotor and parking-brake hat are a single casting. No separate aluminum hat or wheel hub is supplied; retain the verified OE hub and parking hardware.
• Published wheel minimum is 20 in; 508 mm, subject to the required inside-profile check. Rotor diameter is a separate measurement.

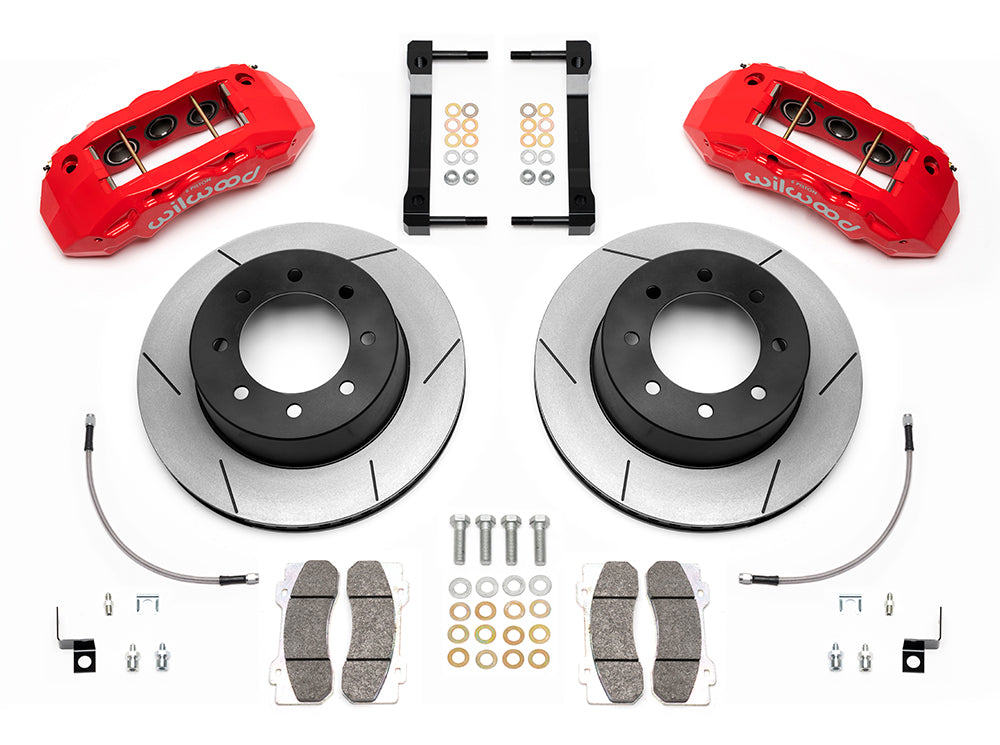

• Application-specific mounting hardware is supplied. Provide or retain the correct spindle, master cylinder and brake booster separately.
• The kit includes 220-14166 braided hydraulic lines, listed at 14.00 in. Verify the chassis connection on the actual application.
• Package quantity is one application-specific brake kit.

Fitment & Compatibility

Use the exact listed 2013–2022 F-250/F-350 four-wheel-drive single-rear-wheel applications. The integral rotor parking drum works with the existing OE parking-brake mechanism. DS-1239 requires rear backing-plate/dust-shield cutting for the new bracket; retain and adjust the existing parking hardware. Models covered: F-250 Super Duty and F-350 Super Duty. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
