Wilwood 15.50-Inch Rear Brake Kit for Super Duty 4WD Single-Rear-Wheel Trucks, Anodized TX6R Calipers

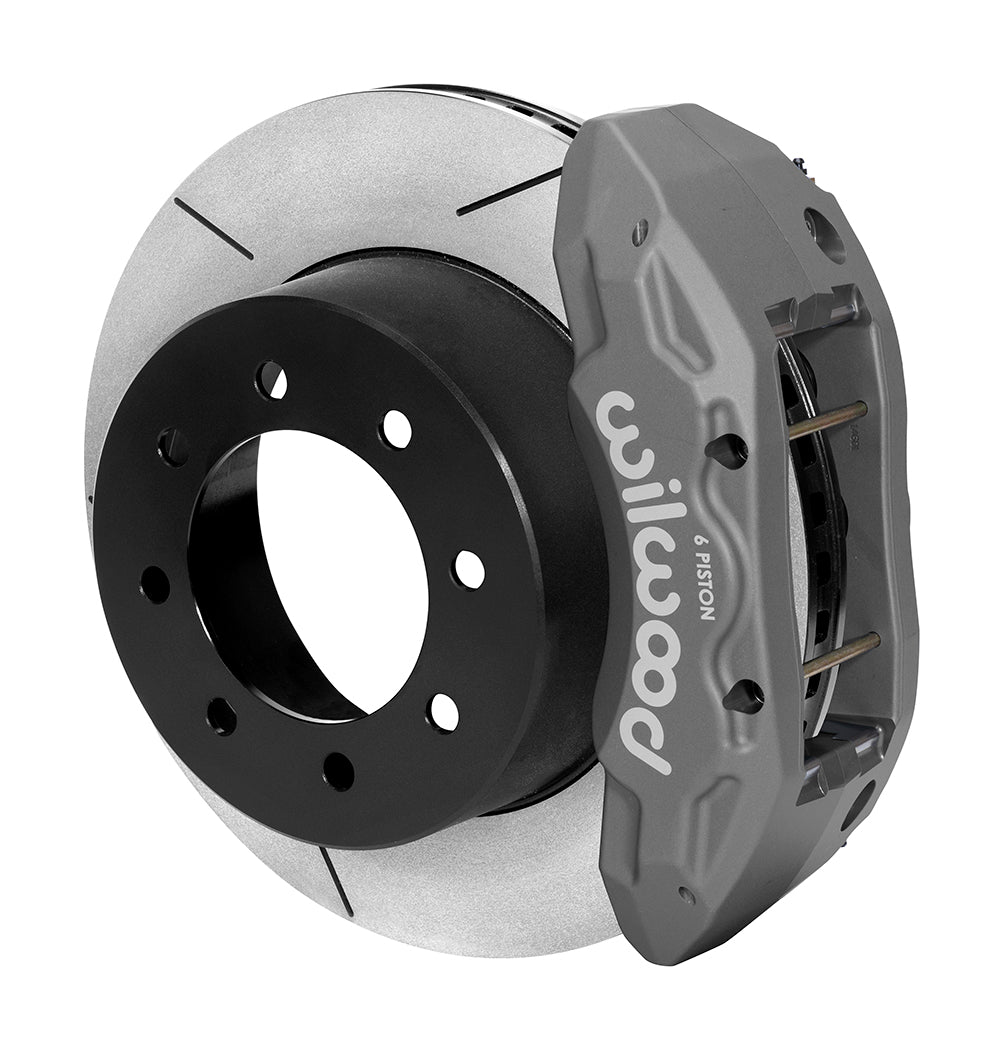

This Wilwood TX6R kit is a rear heavy-duty disc upgrade retaining OE parking brakes for Ford Super Duty F-250/F-350 4WD with Single Rear Wheels. The rear package uses 15.50-inch GTB iron rotor/hat castings and six-piston TX6R calipers, with braided hoses included. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. The manufacturer supplies disc brake systems for motorsport, street-performance and specialized applications, including calipers, rotors, master cylinders, valves, fittings and brake lines that must work together as a complete system.

Technical Details

• Manufacturer part number: 140-14559-C.
• The friction discs measure 15.50 in; 393.7 mm across and 1.38 in; 35.05 mm thick; gt slotted surfaces are used on vented Iron rotors.
• Each caliper carries 6 pistons made from stainless. The TX6R design uses forged aluminum, radial mounting and a Type III Anodize finish.
• BP-22 pads are supplied; the listed bore dimensions are 1.62, 1.38, 1.38 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Wheel mounting pattern(s) measure 8 x 6.69 in; 8 x 169.93 mm. The associated listed stud diameter is 0.64 in; 16.26 mm.
• The iron rotor and parking-brake hat are a single casting. No separate aluminum hat or wheel hub is supplied; retain the verified OE hub and parking hardware.
• Start wheel selection at 20 in; 508 mm; the barrel and spokes still need checking against the caliper-clearance template.

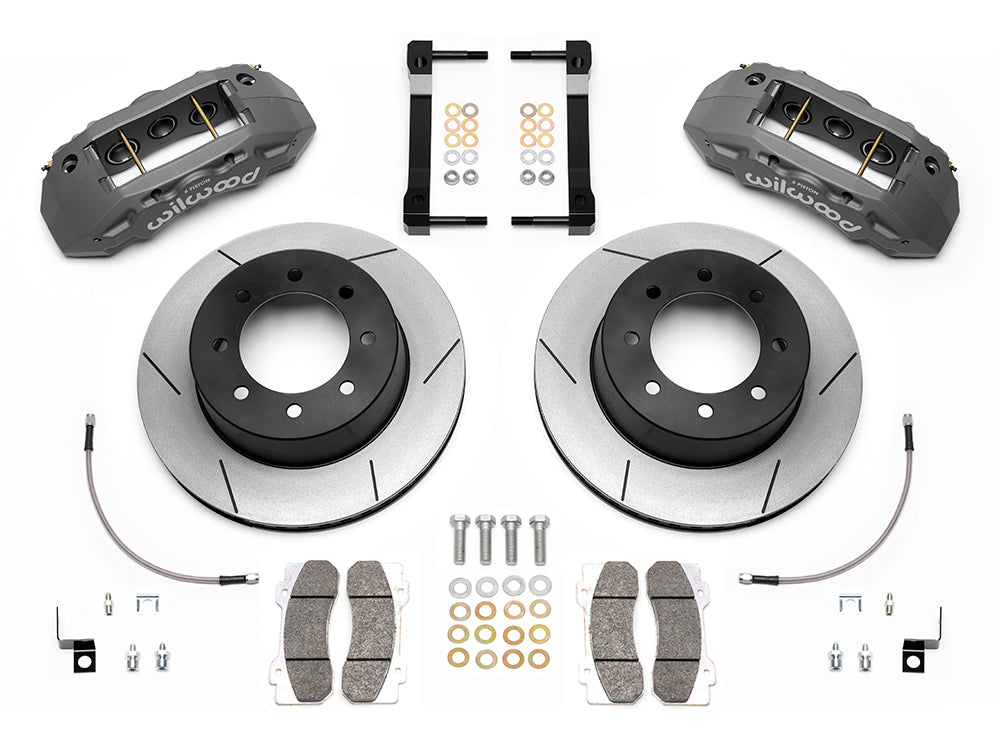

• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Braided hose kit 220-14166 is supplied; the published line length is 14.00 in. Check chassis fittings and full-travel routing.
• Sold as a complete kit for the specified rear installation.

Fitment & Compatibility

Use the exact listed 2013–2022 F-250/F-350 four-wheel-drive single-rear-wheel applications. The integral rotor parking drum works with the existing OE parking-brake mechanism. DS-1239 requires rear backing-plate/dust-shield cutting for the new bracket; retain and adjust the existing parking hardware. Models covered: F-250 Super Duty and F-350 Super Duty. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
