Wilwood TX6R Black Rear Disc Upgrade for F-250/F-350 4WD SRW, 15.50-Inch GTB Rotors and OE Parking Brakes

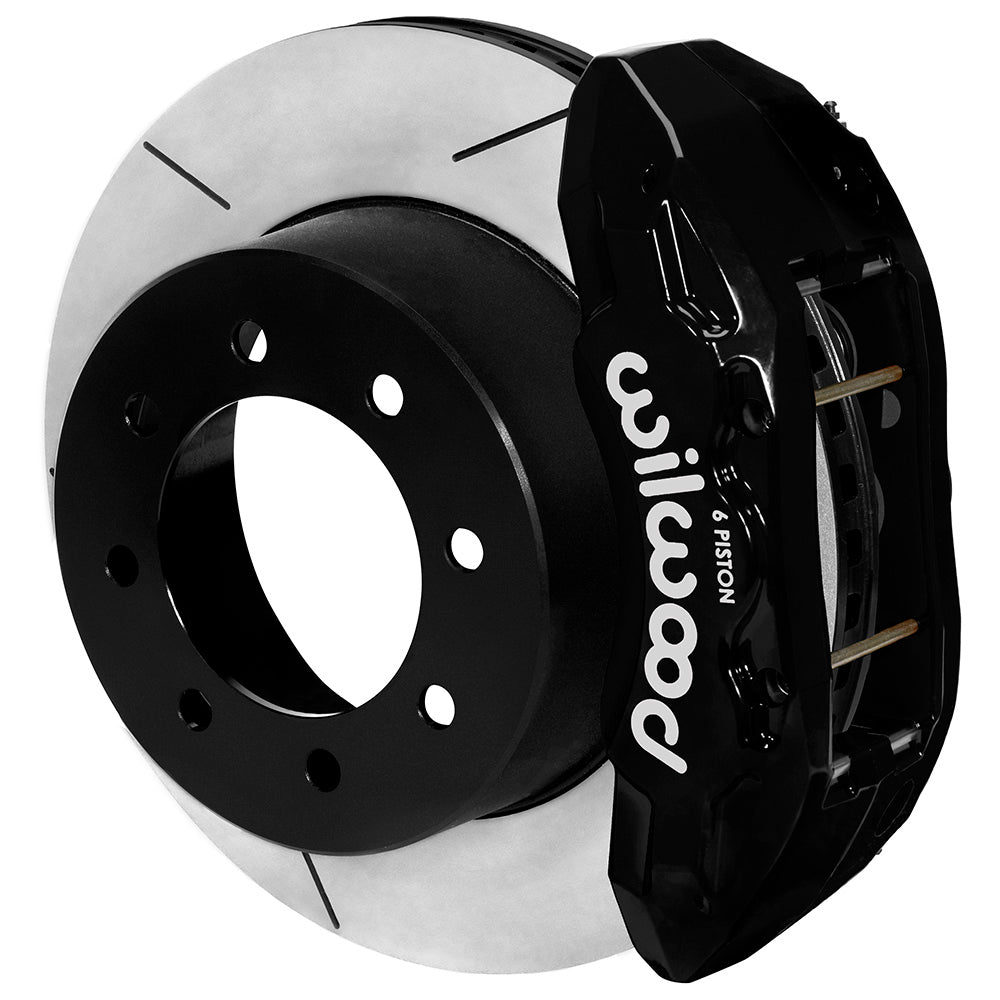

This Wilwood TX6R kit is a rear heavy-duty disc upgrade retaining OE parking brakes for Ford Super Duty F-250/F-350 4WD with Single Rear Wheels. The rear package uses 15.50-inch GTB iron rotor/hat castings and six-piston TX6R calipers, with braided hoses included. From its Camarillo, California base, Wilwood Engineering designs disc brake systems for motorsport, street-performance and specialized needs. Founded in 1977 by Bill Wood, its range covers calipers, rotors, master cylinders, valves, fittings and brake lines chosen to work within a complete brake system.

Technical Details

• Manufacturer part number: 140-14559.
• Rotor outside diameter: 15.50 in; 393.7 mm; thickness: 1.38 in; 35.05 mm. Construction is vented Iron, with gt slotted faces.
• Caliper specification: TX6R; 6 stainless pistons per caliper, forged aluminum body and radial mounting. Finish: Black Powder Coat.
• Published piston bores: 1.62, 1.38, 1.38 inches. Supplied pad compound: BP-22.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Wheel mounting pattern(s): 8 x 6.69 in; 8 x 169.93 mm; listed stud diameter: 0.64 in; 16.26 mm.
• The iron rotor and parking-brake hat are a single casting. No separate aluminum hat or wheel hub is supplied; retain the verified OE hub and parking hardware.
• Minimum nominal wheel diameter: 20 in; 508 mm. The actual inner profile must pass the kit clearance drawing.

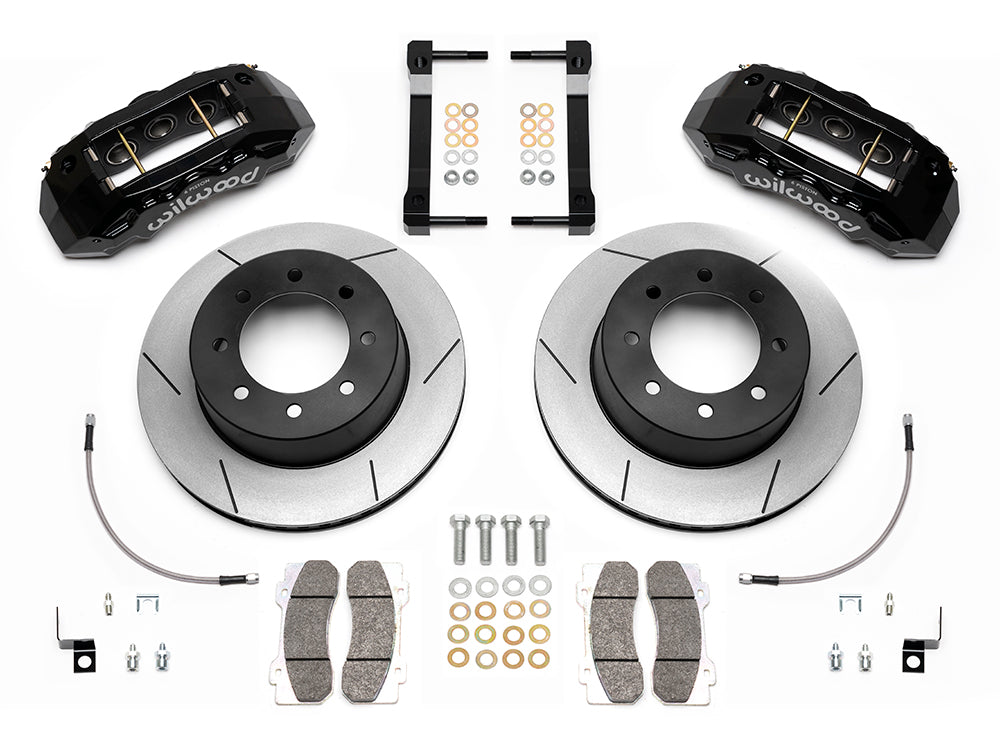

• Mounting hardware is included; spindles, master cylinder and brake booster are not supplied.
• Included braided flexlines: kit 220-14166, with 14.00 in hose length. Confirm fitting compatibility and routing.
• Quantity: one brake kit for the stated axle/application.

Fitment & Compatibility

Use the exact listed 2013–2022 F-250/F-350 four-wheel-drive single-rear-wheel applications. The integral rotor parking drum works with the existing OE parking-brake mechanism. DS-1239 requires rear backing-plate/dust-shield cutting for the new bracket; retain and adjust the existing parking hardware. Models covered: F-250 Super Duty and F-350 Super Duty. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
