Wilwood Red Six-Piston TX6R Front Brake Package for F-250 and F-350 4WD SRW, 15-Inch Rotors

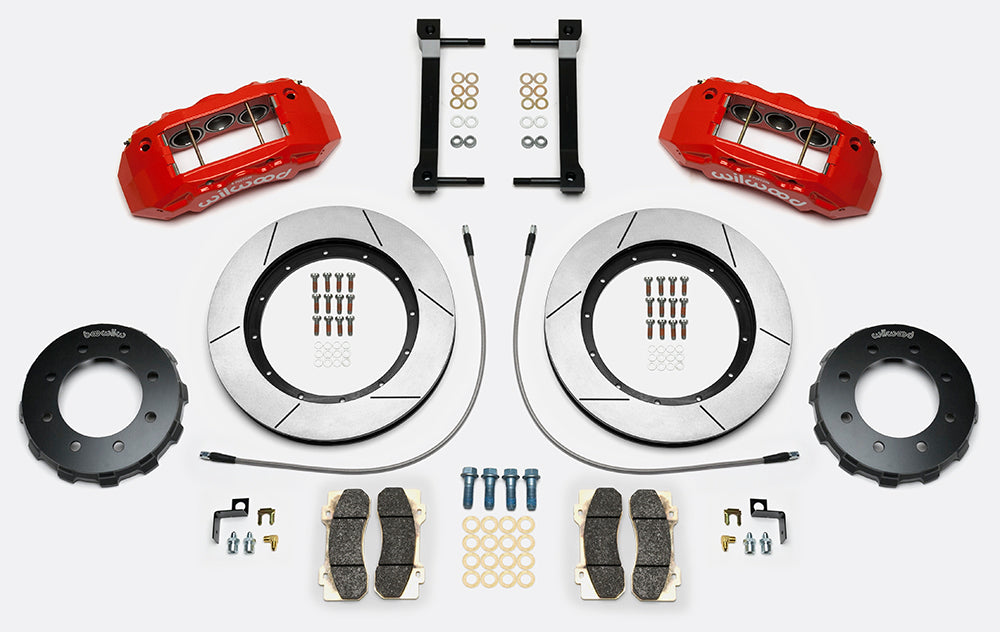

This Wilwood TX6R kit is a front heavy-duty disc upgrade for Ford F-250 and F-350 Super Duty 4WD SRW. TX6R six-piston calipers work with 15 x 1.50-inch Spec-37 rotors and separate eight-lug hats. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs disc brake systems and components for racing, performance-road and specialized use, from calipers and rotors to master cylinders, valves, fittings and brake lines; the complete system determines component selection.

Technical Details

• Manufacturer part number: 140-14558-R.

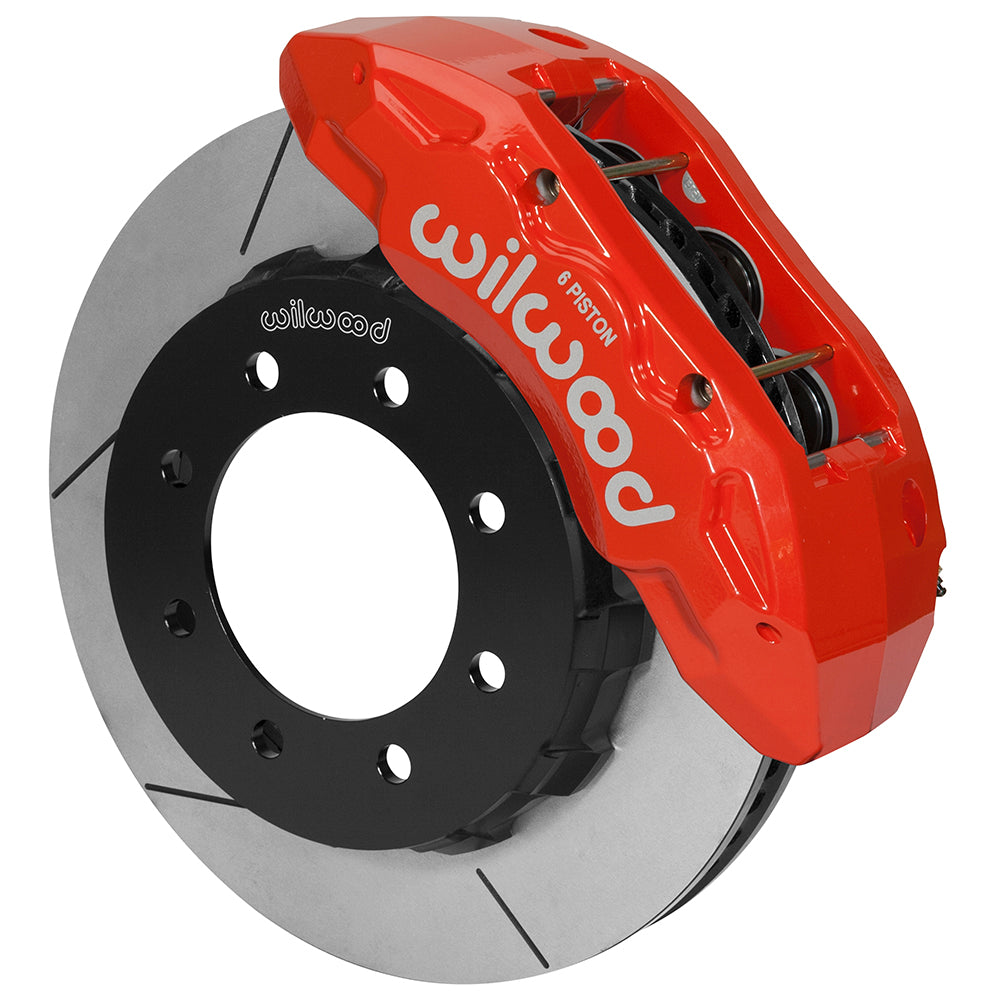

• The specified radial caliper is a TX6R. It combines a Red Powder Coat forged aluminum body with 6 pistons per unit; the published piston material is stainless.
• Bores and friction material: 2.00, 1.88, 1.88 inches, with BP-22 pads supplied for the specified calipers.
• The vented discs have gt slotted friction surfaces and Spec-37 Iron construction. Nominal dimensions are 1.50 in; 38.1 mm through the braking section and 15.00 in; 381 mm at the outside edge.
• Aluminum hats with Black E-Coat finish complete the two-piece rotor assembly.
• Use the specified original or compatible existing hubs. The kit contains no wheel hubs.
• The nominal hat stud-hole clearance diameter is 0.640 in; 16.26 mm; the matching wheel mounting pattern(s) are 8 x 6.692 in; 8 x 169.98 mm. These describe different aspects of the attachment.
• When planning the line connection, account for the 1/8-27 NPT caliper inlet.
• The supplied hardware mounts the specified brake package. It does not include replacement spindles, a brake booster or a master cylinder.
• The caliper package calls for at least the published 20 in; 508 mm wheel diameter, plus sufficient spoke and inner-barrel clearance.
• Supplied line kit 220-14112 provides the braided brake hoses; the stated length is 30.00 in. Verify both ends and clearance through full travel.
• This is a kit listing; one package contains the brake components described above.

Fitment & Compatibility

For the listed 2013–2022 Super Duty four-wheel-drive trucks, DS-1238 specifies single rear wheels. Confirm the factory hub/register and eight-lug pattern; dual-rear-wheel and two-wheel-drive fitment is not established. The front dust shield may need trimming. Models covered: F-250 Super Duty and F-350 Super Duty. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
