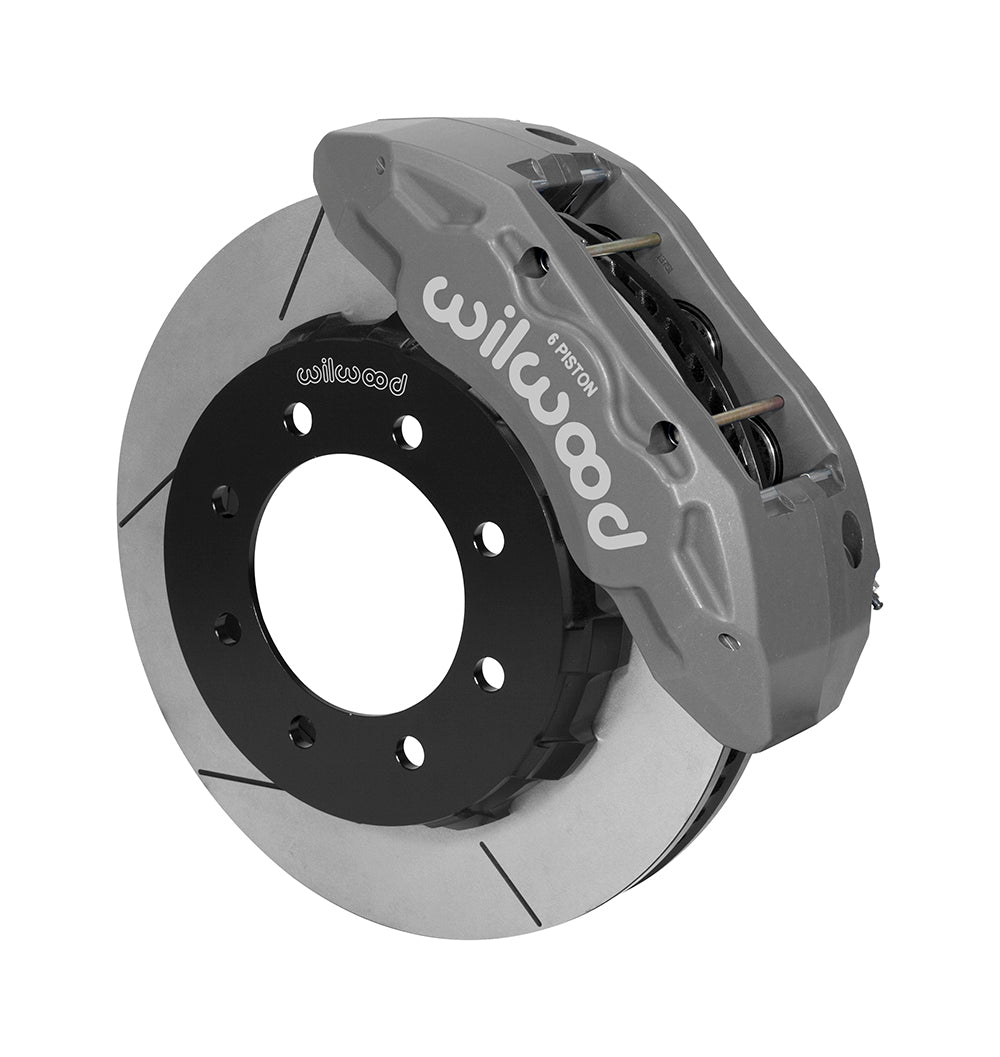

Wilwood Anodized TX6R Front Disc Kit, 15-Inch GT Rotors for Super Duty F-250/F-350 4WD SRW Applications

This Wilwood TX6R kit is a front heavy-duty disc upgrade for Ford F-250 and F-350 Super Duty 4WD SRW. TX6R six-piston calipers work with 15 x 1.50-inch Spec-37 rotors and separate eight-lug hats. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc brake systems for motorsport, street-performance and specialized applications. Its calipers, rotors, master cylinders, valves, fittings and brake lines must be selected as parts of a complete, matched braking system.

Technical Details

• Manufacturer part number: 140-14558-C.
• Match the TX6R caliper architecture when selecting related components: radial attachment, 6 stainless pistons, forged aluminum body and Type III Anodize finish.
• Pad selection is BP-22; piston-bore measurements are 2.00, 1.88, 1.88 inches. Confirm those values for any system changes.
• For rotor replacement, match all four specifications: 15.00 in; 381 mm outside diameter, 1.50 in; 38.1 mm thickness, Spec-37 Iron and the gt slotted surface. Rotor construction: vented.
• For the rotor-to-hub interface, the kit supplies separate aluminum hats finished in Black E-Coat.
• The kit does not supply replacement hubs; confirm the dimensions of those already installed.
• Attachment dimensions to confirm are 8 x 6.692 in; 8 x 169.98 mm for the wheel mounting pattern(s) and 0.640 in; 16.26 mm for the nominal hat stud-hole clearance diameter.
• Use a compatible hose adapter for the caliper's 1/8-27 NPT inlet.
• Included installation parts cover the kit mounting hardware, with spindles, brake booster and master cylinder excluded.
• Before ordering wheels, check the full inside profile against the drawing and the published 20 in; 508 mm minimum diameter.
• The braided flexline package is 220-14112, supplied in a listed 30.00 in length. Inspect end connections and routing before use.

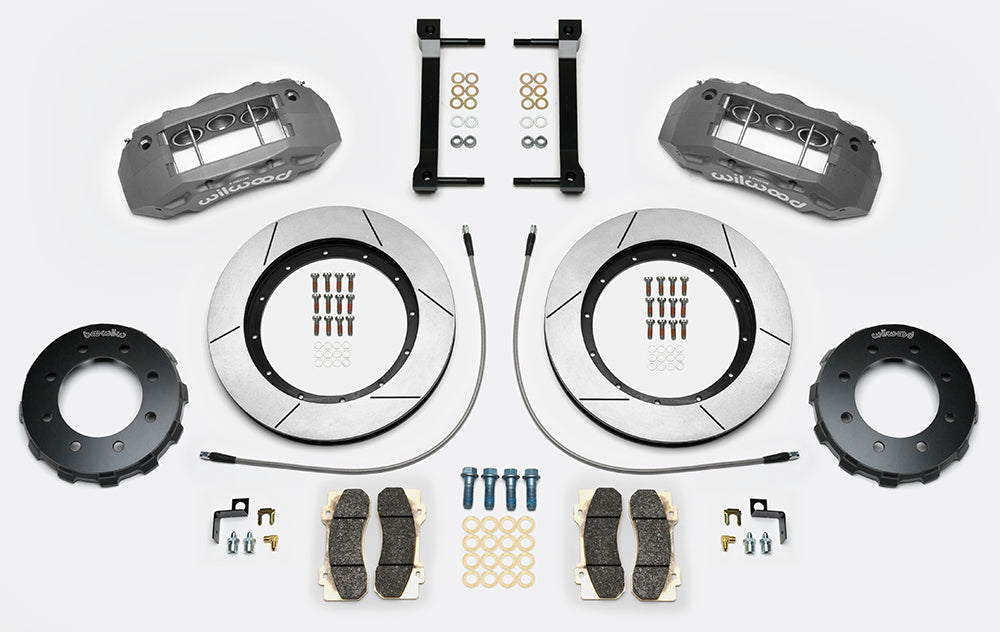

• One brake kit is supplied for the specified application and axle position.

Fitment & Compatibility

For the listed 2013–2022 Super Duty four-wheel-drive trucks, DS-1238 specifies single rear wheels. Confirm the factory hub/register and eight-lug pattern; dual-rear-wheel and two-wheel-drive fitment is not established. The front dust shield may need trimming. Models covered: F-250 Super Duty and F-350 Super Duty. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
