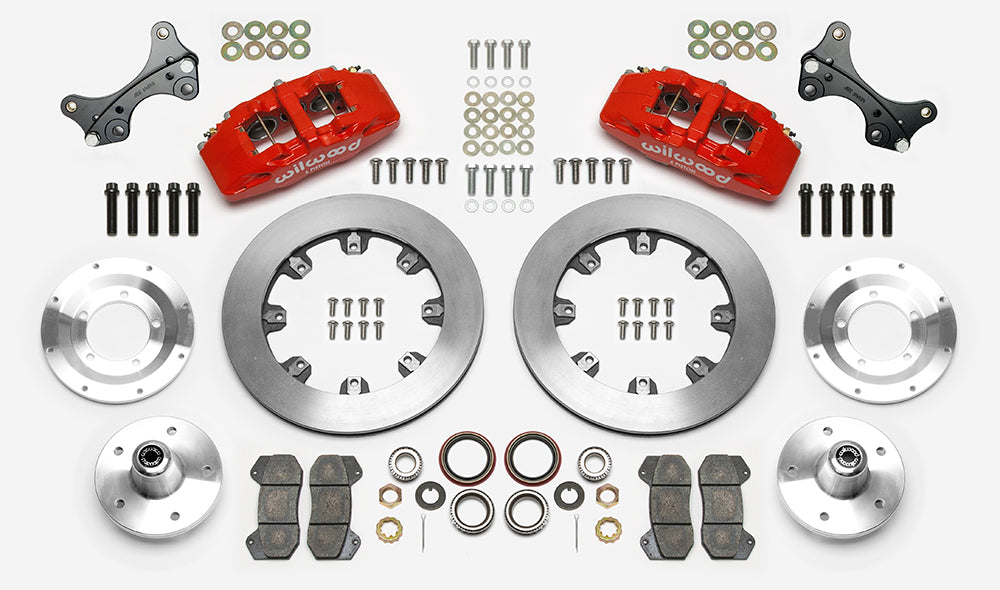

Wilwood Dynapro 6 brake kit: Two red calipers, plain rotor rings, separate aluminum adapters and hubs, bearings, pads, spindle brackets and fasteners arranged as a kit layout; 12.19-inch front brake setup for ProSpindle 5 x 5.

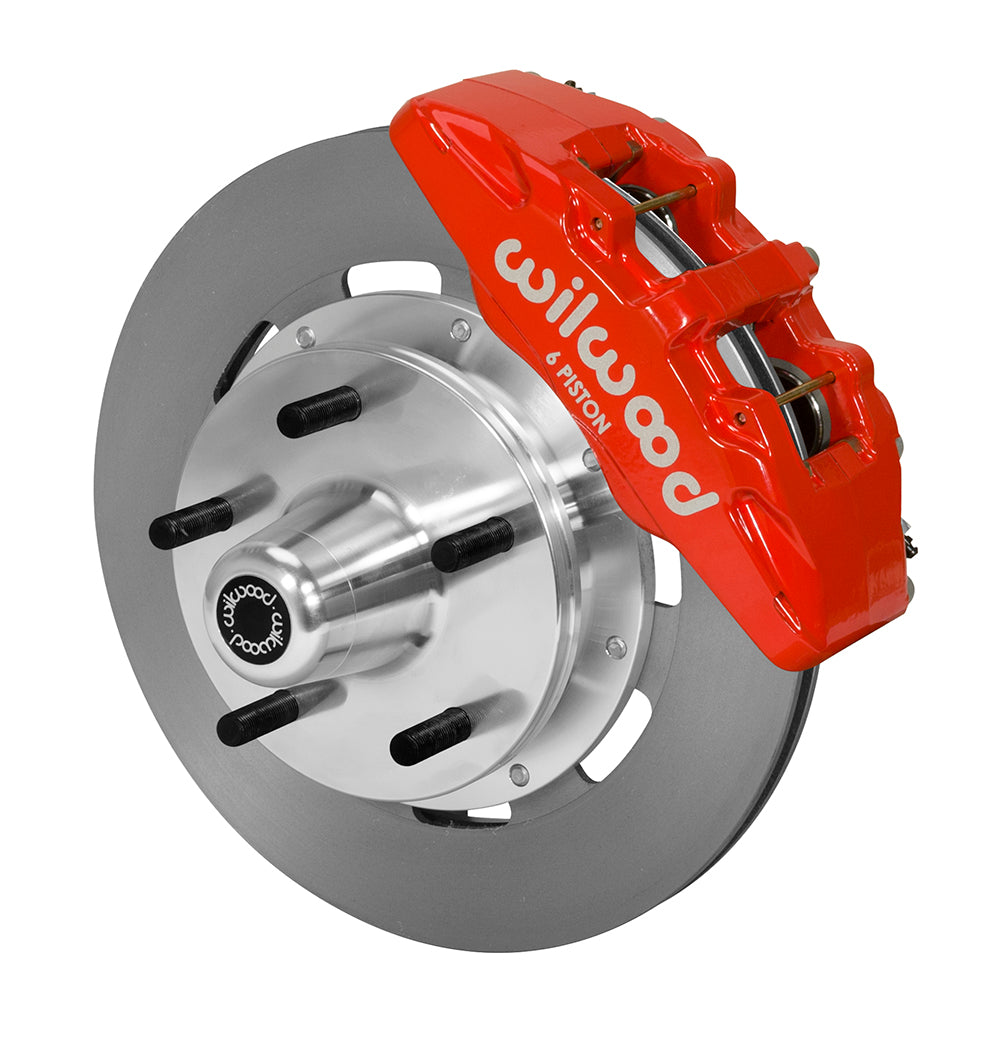

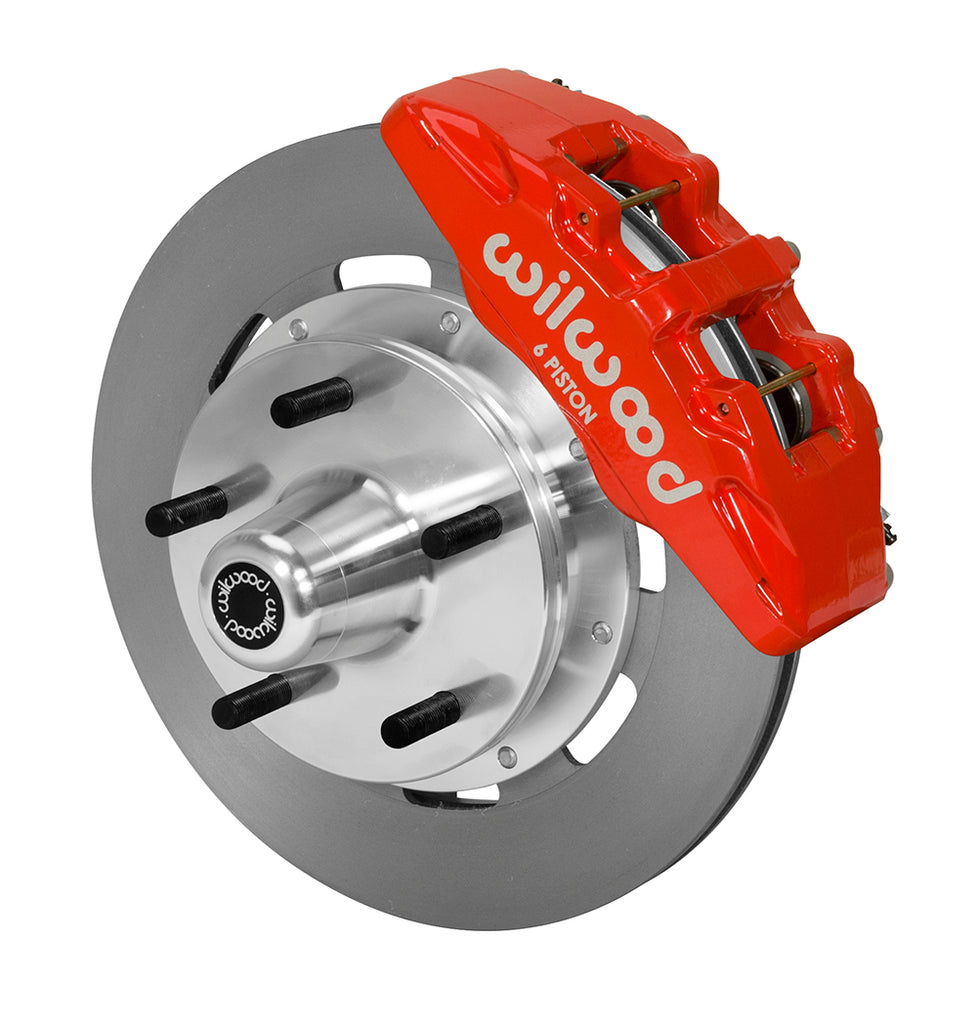

Wilwood Dynapro 6 brake kit: Single-side assembly with a red caliper, plain rotor and polished aluminum hub with five wheel studs; 12.19-inch front brake setup for ProSpindle 5 x 5.
Wilwood Dynapro 6 brake kit: Two red calipers, plain rotor rings, separate aluminum adapters and hubs, bearings, pads, spindle brackets and fasteners arranged as a kit layout; 12.19-inch front brake setup for ProSpindle 5 x 5.
Wilwood Dynapro 6 brake kit: Single-side assembly with a red caliper, plain rotor and polished aluminum hub with five wheel studs; 12.19-inch front brake setup for ProSpindle 5 x 5.

Wilwood Red Six-Piston Dynapro Front Brake Kit for ProSpindle, Plain 12.19-Inch Rotors, 5x5 Wheel Pattern

SKU: 140-14533-R

$1,992.34 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Wilwood Dynapro 6 kit is a front six-piston ProSpindle conversion for ProSpindle Standard-Height or Two-Inch-Drop Assemblies. Dynapro 6 calipers, 12.19-inch rotors and 5 x 5.00-inch hubs suit the verified Wilwood aftermarket spindle systems. The kit belongs to Wilwood Engineering's range of disc brake systems and components for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and produces calipers, rotors, master cylinders, valves, fittings and brake lines for complete brake-system planning.

Technical Details

  • Manufacturer part number: 140-14533-R.
  • 5 x 5 in; 5 x 127 mm is the listed wheel mounting pattern(s) dimension. Wheel-stud thread: 1/2-20.
  • Aluminum hubs are provided separately from the rotor components, with the specified wheel patterns and studs.
  • Friction surface and size: plain face; 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thickness. The rotor material is Iron in a vented design.
  • The calipers are Dynapro 6 units with a Red Powder Coat exterior. A forged aluminum body locates 6 stainless pistons; attachment is lug mount.
  • The matched pads use BP-10. Manufacturer bore figures for the caliper are 1.62, 1.38, 1.38 inches.
  • The caliper accepts the listed 1/8-27 NPT hydraulic connection.
  • Wheel minimum: 15 in; 381 mm. Confirm the complete wheel shape and mounting hardware clear the brake drawing.
  • Brake lines are a separate purchase. Verify end fittings, safe routing and the length needed for this application.
  • No spindle, booster or master cylinder is included; the kit does contain mounting hardware for the stated installation.
  • This listing supplies one kit for the documented brake configuration.

Fitment & Compatibility

Match standard-height ProSpindle 830-10832 or two-inch-drop 830-9807 and follow its DS-1224 diagram. Wheels must match the 5 x 5.00-inch hub pattern. The spindles and stamped-steel-wheel hub shields 300-10716 are separate purchases.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
