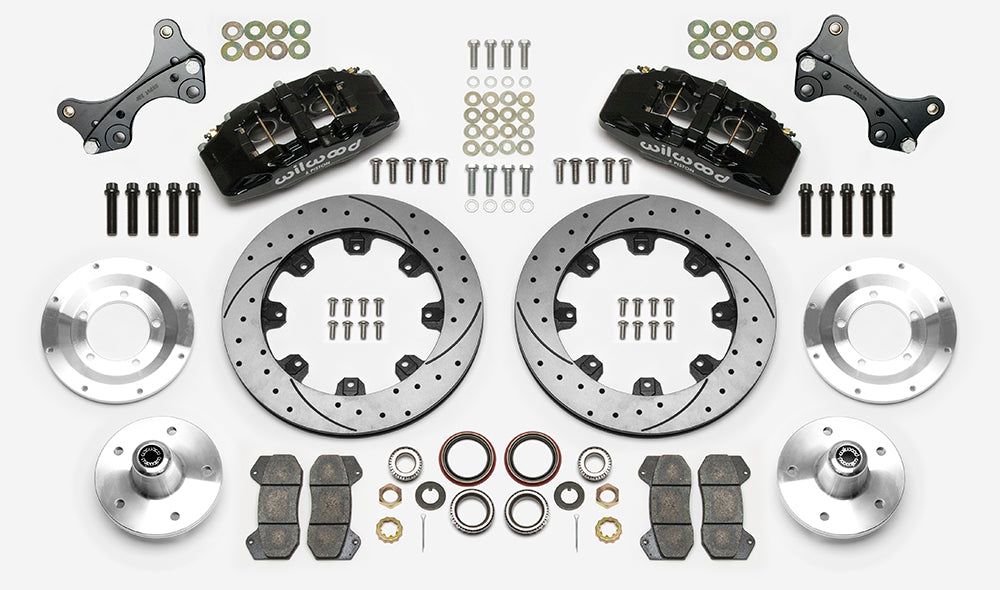

Wilwood Dynapro 6 brake kit: Two black calipers, drilled-and-slotted rotor rings, separate aluminum adapters and hubs, bearings, pads, spindle brackets and fasteners arranged as a kit layout; 12.19-inch front brake setup for ProSpindle 5 x 5.

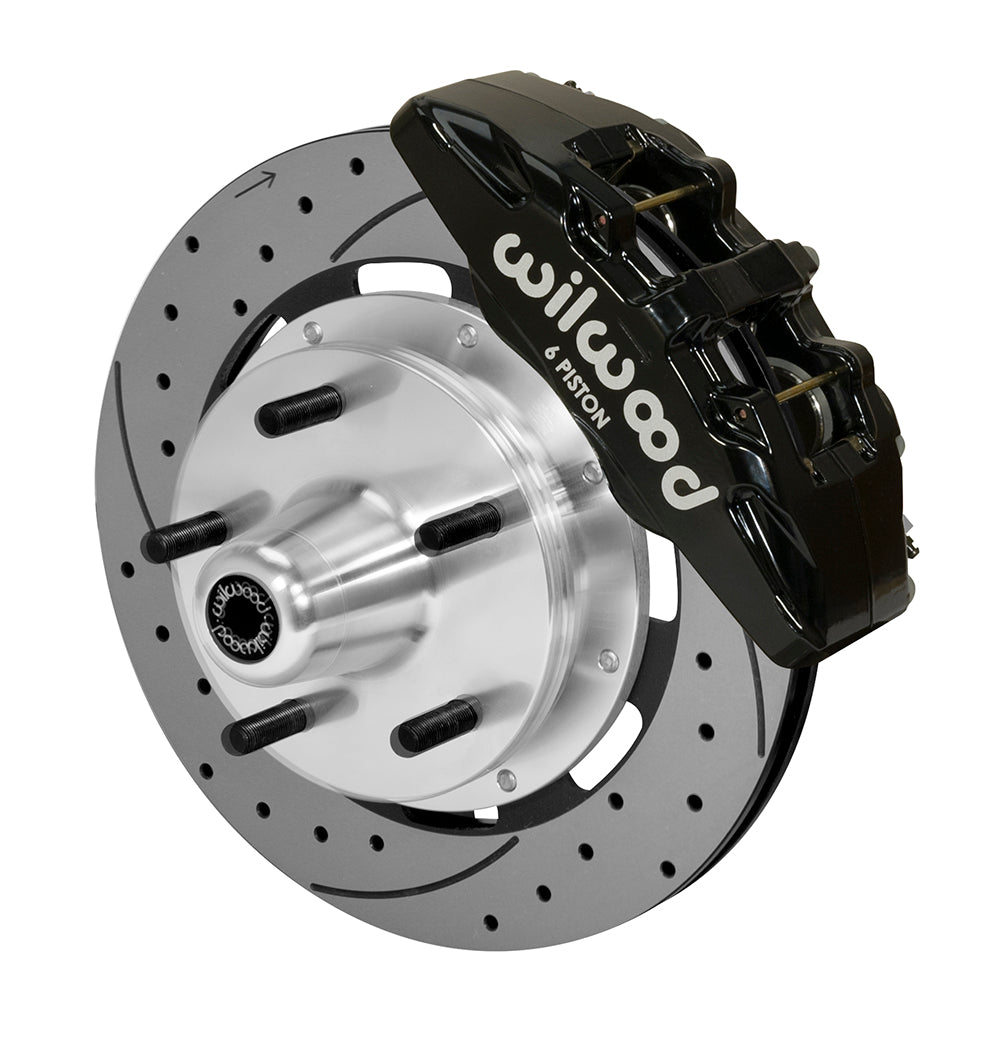

Wilwood Dynapro 6 brake kit: Single-side assembly with a black caliper, drilled-and-slotted rotor and polished aluminum hub with five wheel studs; 12.19-inch front brake setup for ProSpindle 5 x 5.
Wilwood Dynapro 6 brake kit: Two black calipers, drilled-and-slotted rotor rings, separate aluminum adapters and hubs, bearings, pads, spindle brackets and fasteners arranged as a kit layout; 12.19-inch front brake setup for ProSpindle 5 x 5.
Wilwood Dynapro 6 brake kit: Single-side assembly with a black caliper, drilled-and-slotted rotor and polished aluminum hub with five wheel studs; 12.19-inch front brake setup for ProSpindle 5 x 5.

Wilwood Dynapro 6 Front Brake Conversion for Standard or Drop ProSpindle, Black Calipers, 12.19-Inch SRP Rotors and Five-on-Five Hubs

SKU: 140-14533-D

$2,134.65 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Wilwood Dynapro 6 kit is a front six-piston ProSpindle conversion for ProSpindle Standard-Height or Two-Inch-Drop Assemblies. Dynapro 6 calipers, 12.19-inch rotors and 5 x 5.00-inch hubs suit the verified Wilwood aftermarket spindle systems. From its Camarillo, California base, Wilwood Engineering designs disc brake systems for motorsport, street-performance and specialized needs. Founded in 1977 by Bill Wood, its range covers calipers, rotors, master cylinders, valves, fittings and brake lines chosen to work within a complete brake system.

Technical Details

  • Manufacturer part number: 140-14533-D.
  • Wheel mounting pattern(s) measure 5 x 5 in; 5 x 127 mm. The associated wheel-stud thread is 1/2-20.
  • Supplied aluminum hubs provide the wheel mounting; verify the patterns and stud threads stated above.
  • The friction discs measure 12.19 in; 309.63 mm across and 0.81 in; 20.57 mm thick; srp drilled & slotted surfaces are used on vented Iron rotors.
  • Each caliper carries 6 pistons made from stainless. The Dynapro 6 design uses forged aluminum, lug mounting and a Black Powder Coat finish.
  • BP-10 pads are supplied; the listed bore dimensions are 1.62, 1.38, 1.38 inches.
  • Connect the brake line to the specified 1/8-27 NPT inlet.
  • Start wheel selection at 15 in; 381 mm; the barrel and spokes still need checking against the caliper-clearance template.
  • Order suitable flexlines separately; none are included. Match the chassis fittings and allow full steering/suspension travel.
  • This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
  • Sold as a complete kit for the specified front installation.

Fitment & Compatibility

Match standard-height ProSpindle 830-10832 or two-inch-drop 830-9807 and follow its DS-1224 diagram. Wheels must match the 5 x 5.00-inch hub pattern. The spindles and stamped-steel-wheel hub shields 300-10716 are separate purchases.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
