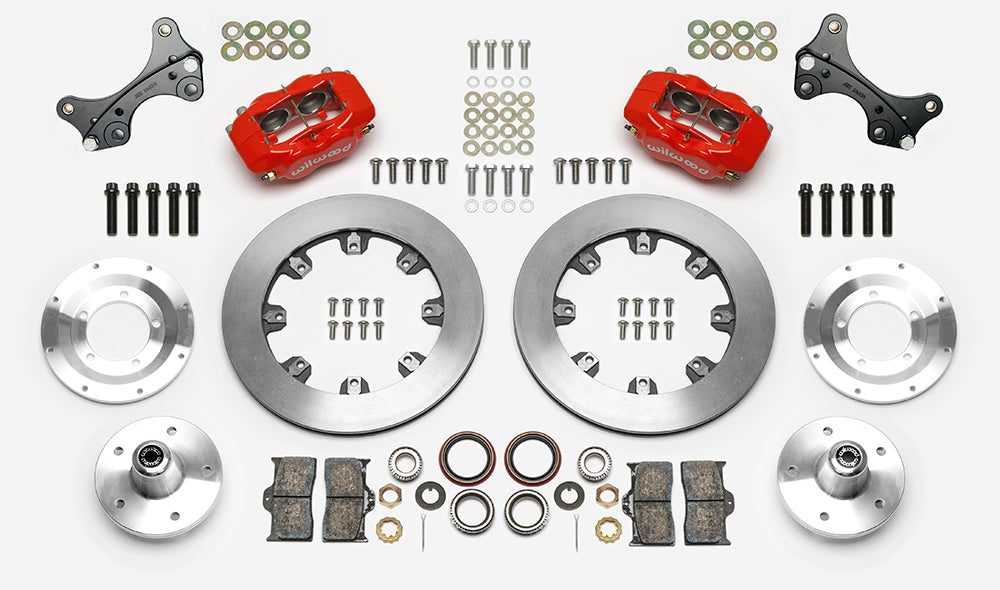

Wilwood Dynalite brake kit: Two red calipers, plain rotor rings, separate aluminum adapters and hubs, bearings, pads, spindle brackets and fasteners arranged as a kit layout; 12.19-inch front brake setup for ProSpindle 5 x 5.

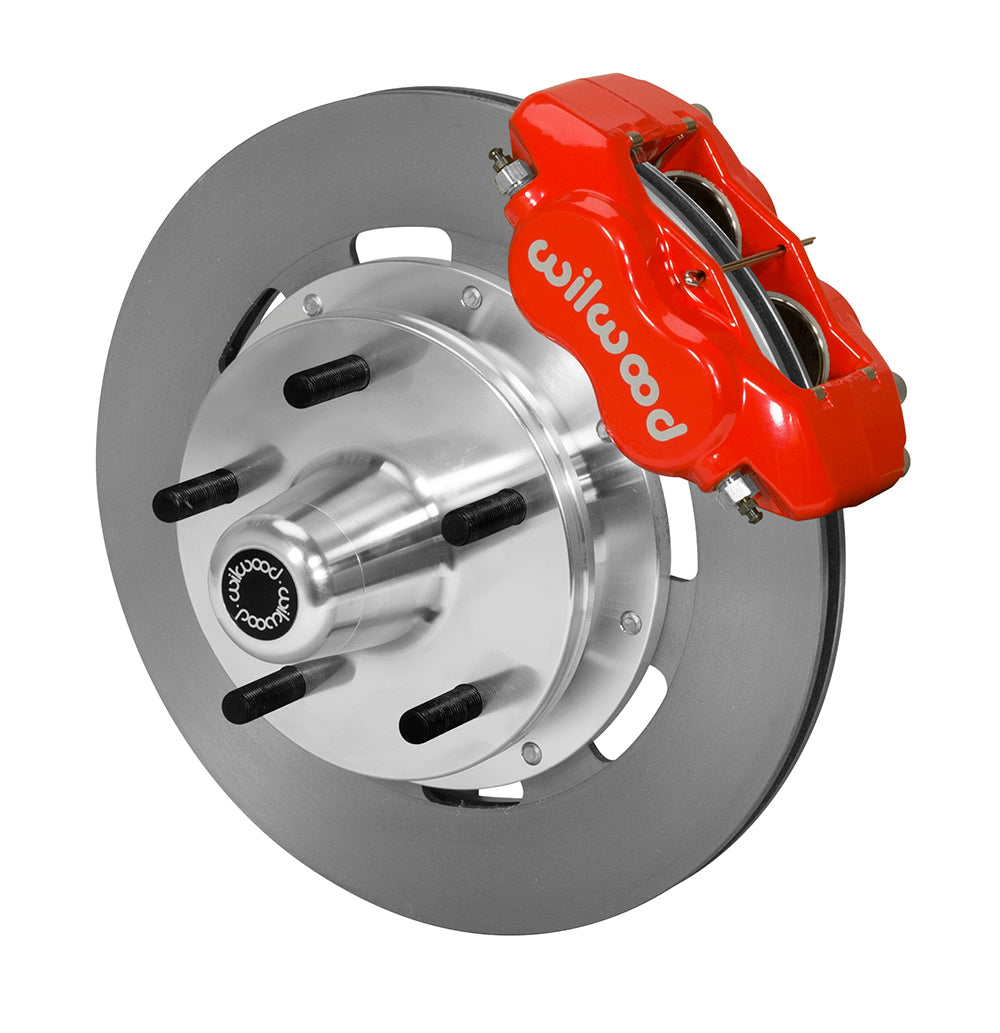

Wilwood Dynalite brake kit: Single-side assembly with a red caliper, plain rotor and polished aluminum hub with five wheel studs; 12.19-inch front brake setup for ProSpindle 5 x 5.
Wilwood Dynalite brake kit: Two red calipers, plain rotor rings, separate aluminum adapters and hubs, bearings, pads, spindle brackets and fasteners arranged as a kit layout; 12.19-inch front brake setup for ProSpindle 5 x 5.
Wilwood Dynalite brake kit: Single-side assembly with a red caliper, plain rotor and polished aluminum hub with five wheel studs; 12.19-inch front brake setup for ProSpindle 5 x 5.

Wilwood Plain-Rotor Front Kit for Standard or Drop ProSpindle, Red Dynalite Calipers and 5x5.00-Inch Wheel Mounting

SKU: 140-14532-R

$1,768.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Wilwood Dynalite kit is a front ProSpindle disc conversion for Wilwood ProSpindle with 5 x 5.00-Inch Wheels. The four-piston calipers are supplied with 12.19-inch rotors and five-lug aluminum hubs for a specific aftermarket spindle interface. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs disc brake systems and components for racing, performance-road and specialized use, from calipers and rotors to master cylinders, valves, fittings and brake lines; the complete system determines component selection.

Technical Details

  • Manufacturer part number: 140-14532-R.
  • The specified lug caliper is a Dynalite. It combines a Red Powder Coat forged aluminum body with 4 pistons per unit; the published piston material is stainless.
  • When planning the line connection, account for the 1/8-27 NPT caliper inlet.
  • Bores and friction material: 1.75, 1.75 inches, with BP-10 pads supplied for the specified calipers.
  • The vented discs have plain face friction surfaces and Iron construction. Nominal dimensions are 0.81 in; 20.57 mm through the braking section and 12.19 in; 309.63 mm at the outside edge.
  • The wheel-stud thread is 1/2-20; the matching wheel mounting pattern(s) are 5 x 5 in; 5 x 127 mm. These describe different aspects of the attachment.
  • Included wheel hubs use aluminum construction and the listed threaded-stud arrangement. They are separate from the friction discs.
  • The supplied hardware mounts the specified brake package. It does not include replacement spindles, a brake booster or a master cylinder.
  • Flexlines are excluded from the brake package. Select the chassis-specific hoses and confirm safe clearance throughout travel.
  • The caliper package calls for at least the published 15 in; 381 mm wheel diameter, plus sufficient spoke and inner-barrel clearance.
  • This is a kit listing; one package contains the brake components described above.

Fitment & Compatibility

For separately purchased Wilwood ProSpindle 830-10832 standard-height or 830-9807 two-inch-drop assemblies, use the corresponding DS-1223 procedure. The hub pattern is 5 x 5.00 inches. Stamped-steel wheels need hub shield 300-10716; neither ProSpindle assembly is supplied.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.
