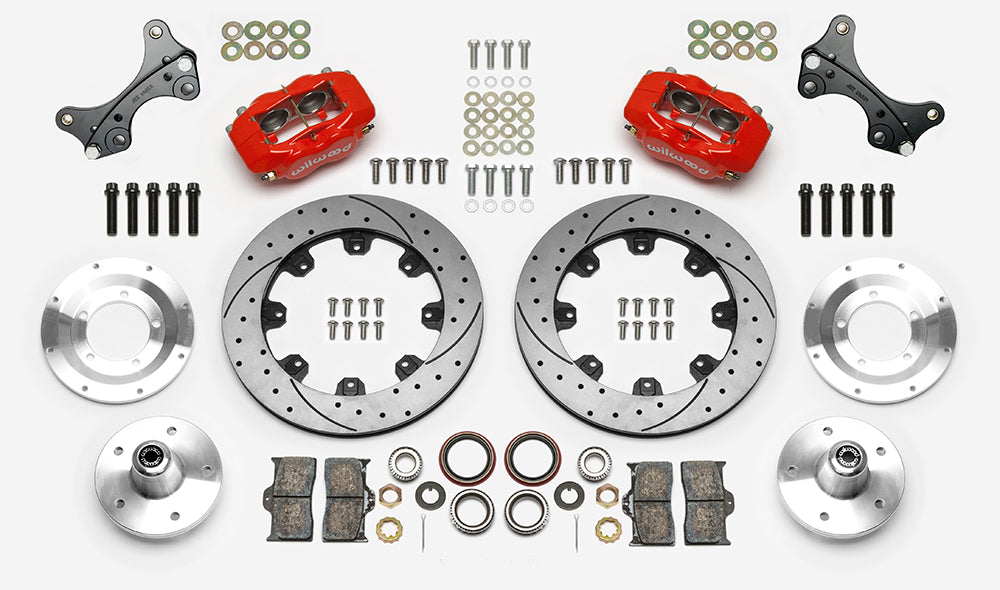

Wilwood Dynalite brake kit: Two red calipers, drilled-and-slotted rotor rings, separate aluminum adapters and hubs, bearings, pads, spindle brackets and fasteners arranged as a kit layout; 12.19-inch front brake setup for ProSpindle 5 x 5.

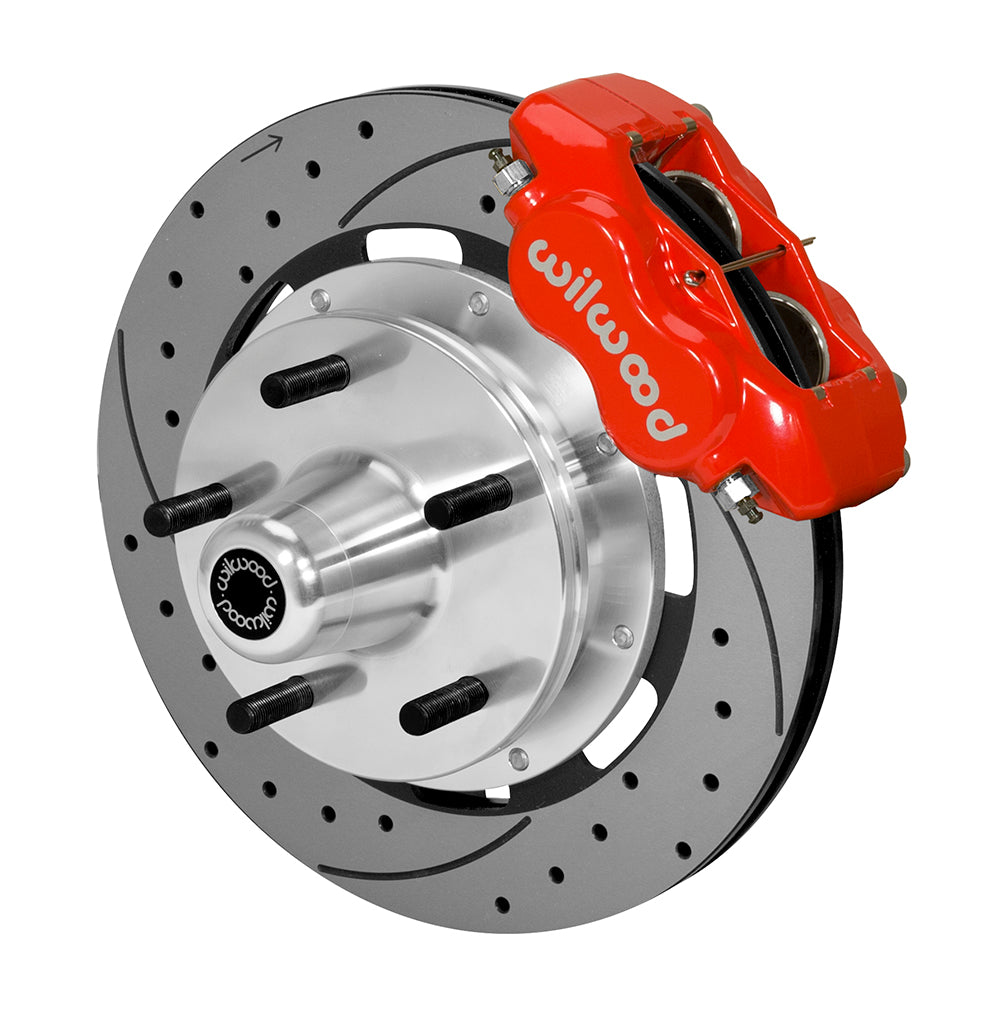

Wilwood Dynalite brake kit: Single-side assembly with a red caliper, drilled-and-slotted rotor and polished aluminum hub with five wheel studs; 12.19-inch front brake setup for ProSpindle 5 x 5.
Wilwood Dynalite brake kit: Two red calipers, drilled-and-slotted rotor rings, separate aluminum adapters and hubs, bearings, pads, spindle brackets and fasteners arranged as a kit layout; 12.19-inch front brake setup for ProSpindle 5 x 5.
Wilwood Dynalite brake kit: Single-side assembly with a red caliper, drilled-and-slotted rotor and polished aluminum hub with five wheel studs; 12.19-inch front brake setup for ProSpindle 5 x 5.

Wilwood Red Dynalite ProSpindle Disc Conversion with 12.19-Inch Drilled/Slotted Front Rotors and 5x5 Hubs

SKU: 140-14532-DR

$1,911.21 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This Wilwood Dynalite kit is a front ProSpindle disc conversion for Wilwood ProSpindle with 5 x 5.00-Inch Wheels. The four-piston calipers are supplied with 12.19-inch rotors and five-lug aluminum hubs for a specific aftermarket spindle interface. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc brake systems for motorsport, street-performance and specialized applications. Its calipers, rotors, master cylinders, valves, fittings and brake lines must be selected as parts of a complete, matched braking system.

Technical Details

  • Manufacturer part number: 140-14532-DR.
  • Match the Dynalite caliper architecture when selecting related components: lug attachment, 4 stainless pistons, forged aluminum body and Red Powder Coat finish.
  • Use a compatible hose adapter for the caliper's 1/8-27 NPT inlet.
  • Pad selection is BP-10; piston-bore measurements are 1.75, 1.75 inches. Confirm those values for any system changes.
  • For rotor replacement, match all four specifications: 12.19 in; 309.63 mm outside diameter, 0.81 in; 20.57 mm thickness, Iron and the srp drilled & slotted surface. Rotor construction: vented.
  • Attachment dimensions to confirm are 5 x 5 in; 5 x 127 mm for the wheel mounting pattern(s) and 1/2-20 for the wheel-stud thread.
  • Wheel mounting is through the included aluminum hubs; check their exact lug circles and stud threads before selecting wheels.
  • Included installation parts cover the kit mounting hardware, with spindles, brake booster and master cylinder excluded.
  • Plan the hydraulic connection separately: this kit has no hoses. Check line length and end fittings against the vehicle.
  • Before ordering wheels, check the full inside profile against the drawing and the published 15 in; 381 mm minimum diameter.
  • One brake kit is supplied for the specified application and axle position.

Fitment & Compatibility

For separately purchased Wilwood ProSpindle 830-10832 standard-height or 830-9807 two-inch-drop assemblies, use the corresponding DS-1223 procedure. The hub pattern is 5 x 5.00 inches. Stamped-steel wheels need hub shield 300-10716; neither ProSpindle assembly is supplied.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.
