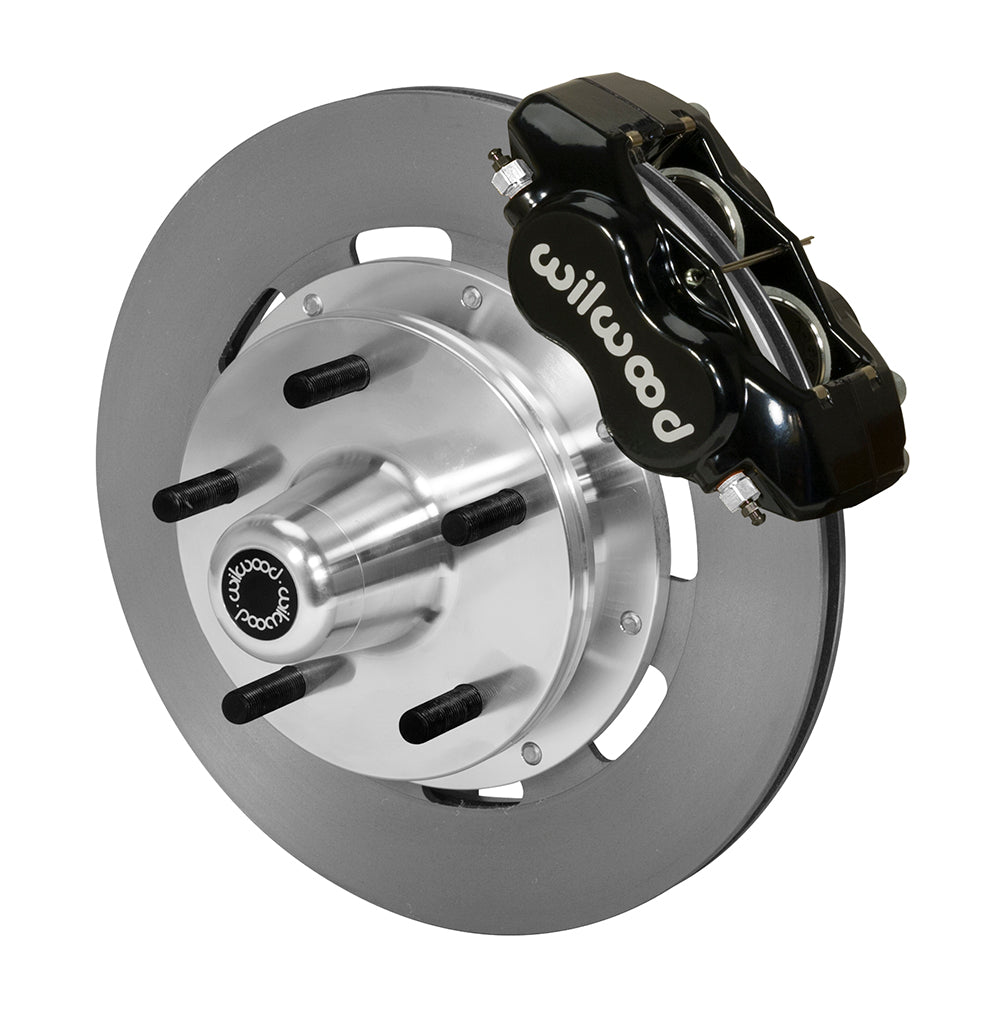

Wilwood Black Dynalite Front Brakes for Wilwood ProSpindle, Plain 12.19-Inch Rotors and 5x5.00-Inch Hubs

This Wilwood Dynalite kit is a front ProSpindle disc conversion for Wilwood ProSpindle with 5 x 5.00-Inch Wheels. The four-piston calipers are supplied with 12.19-inch rotors and five-lug aluminum hubs for a specific aftermarket spindle interface. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

Technical Details

• Manufacturer part number: 140-14532.
• At each caliper, the Dynalite configuration provides 4 pistons in stainless, housed in forged aluminum. The caliper attaches by lug mounting and is finished in Black Powder Coat.
• Inlet-port specification for hose/fitting selection is 1/8-27 NPT.
• For hydraulic matching, use the published 1.75, 1.75-inch piston bores. Pads are the BP-10 compound.
• This version supplies plain face rotors in Iron. Their 12.19 in; 309.63 mm diameter and 0.81 in; 20.57 mm section are matched to the listed vented brake package.
• The mounting interface uses 5 x 5 in; 5 x 127 mm; verify the wheel-stud thread of 1/2-20 separately from the bolt circle.
• This hub kit includes aluminum wheel hubs. Their wheel-bolt layout and stud threads must match the chosen wheels.

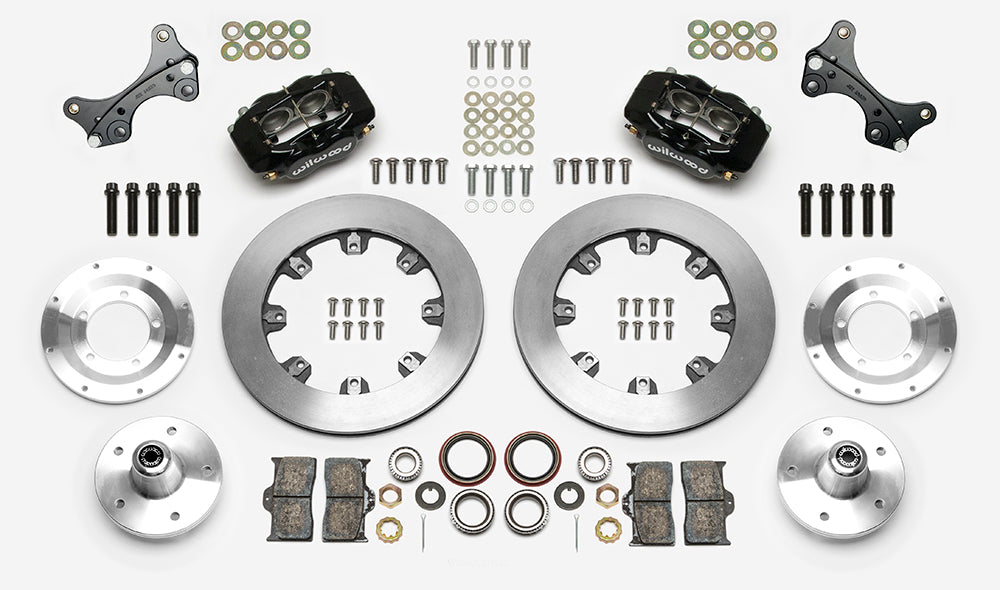

• The listed brackets and fasteners belong to the kit. Spindles and the master-cylinder/booster assembly are outside the package.
• No hydraulic flexlines accompany the kit; supply the correct hoses and fittings for the documented caliper/chassis interface.
• Wheel clearance must be measured using the installation template; the manufacturer lists 15 in; 381 mm as the nominal minimum.
• Order quantity refers to one brake conversion kit, not an individual loose rotor or caliper.

Fitment & Compatibility

For separately purchased Wilwood ProSpindle 830-10832 standard-height or 830-9807 two-inch-drop assemblies, use the corresponding DS-1223 procedure. The hub pattern is 5 x 5.00 inches. Stamped-steel wheels need hub shield 300-10716; neither ProSpindle assembly is supplied.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
