Wilwood Pinto, Bobcat and Mustang II Front Brakes, Red Dynapro 6 Calipers, Plain Discs and 5x5.00-Inch Hubs

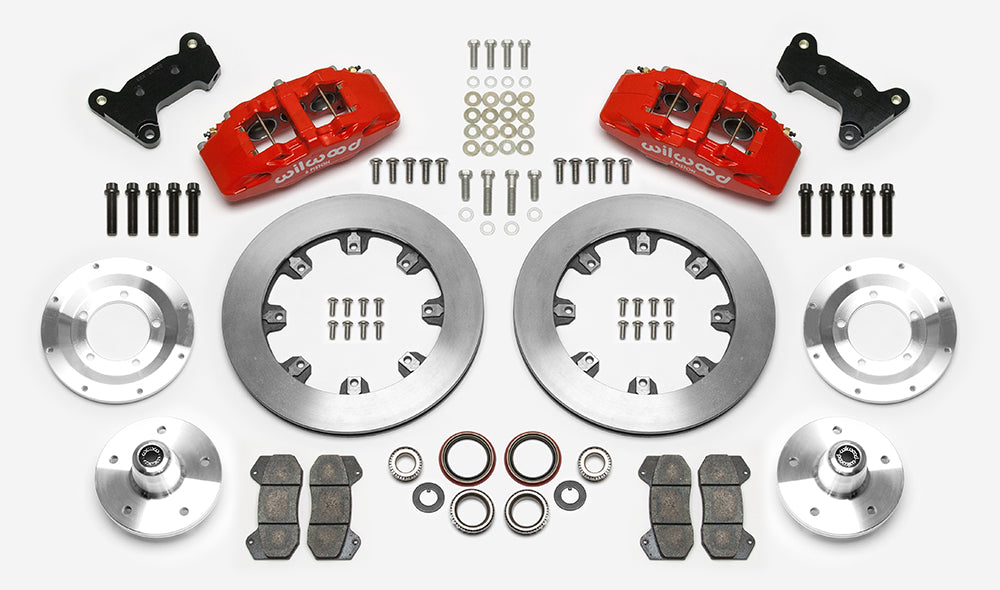

This Wilwood Dynapro 6 kit is a front five-lug disc conversion for Pinto, Bobcat and Mustang II Factory Disc Spindles. Six stainless pistons per Dynapro caliper act on 12.19-inch rotors; the supplied hubs have a 5 x 5.00-inch wheel pattern. The kit belongs to Wilwood Engineering's range of disc brake systems and components for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and produces calipers, rotors, master cylinders, valves, fittings and brake lines for complete brake-system planning.

Technical Details

• Manufacturer part number: 140-14531-R.
• Friction surface and size: plain face; 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thickness. The rotor material is Iron in a vented design.

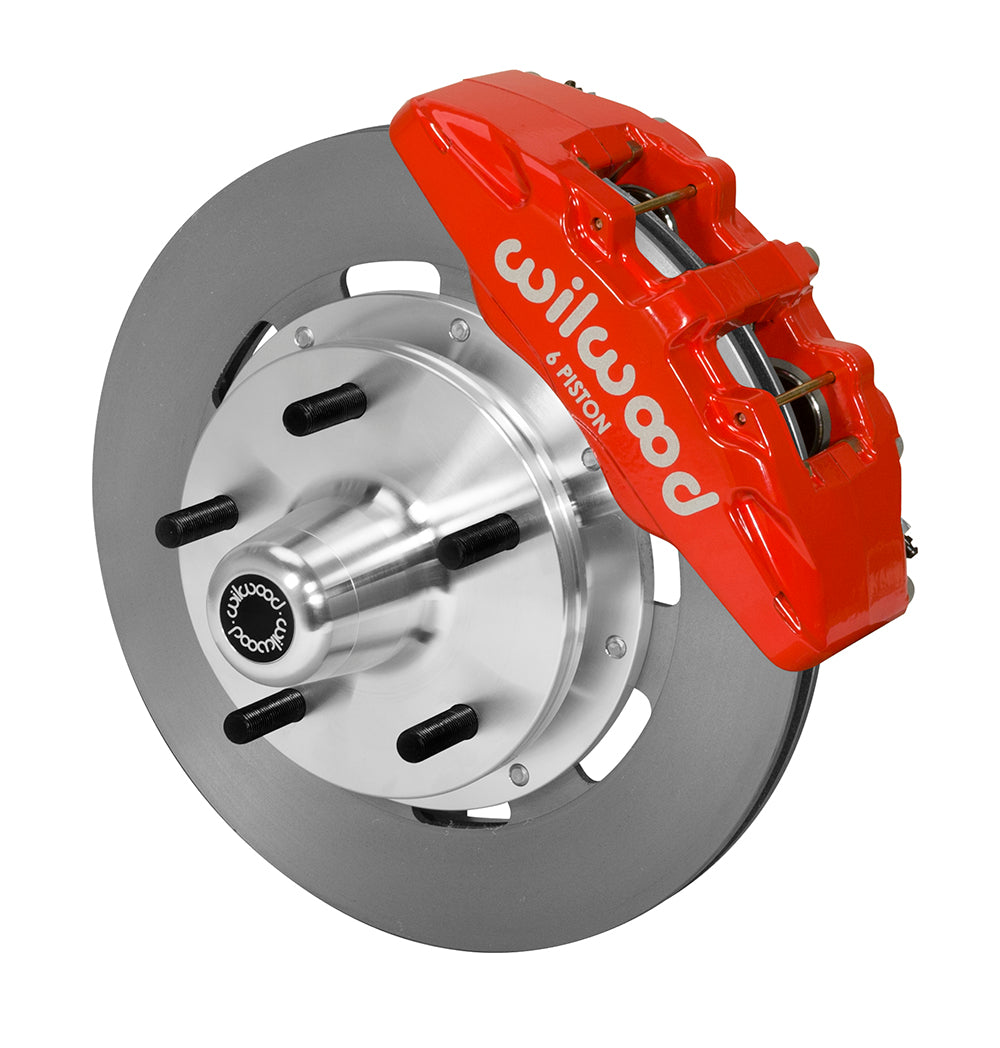

• The calipers are Dynapro 6 units with a Red Powder Coat exterior. A forged aluminum body locates 6 stainless pistons; attachment is lug mount.
• The matched pads use BP-10. Manufacturer bore figures for the caliper are 1.62, 1.38, 1.38 inches.
• The caliper accepts the listed 1/8-27 NPT hydraulic connection.
• 5 x 5 in; 5 x 127 mm is the listed wheel mounting pattern(s) dimension. Wheel-stud thread: 1/2-20.
• Aluminum hubs are provided separately from the rotor components, with the specified wheel patterns and studs.
• Wheel minimum: 15 in; 381 mm. Confirm the complete wheel shape and mounting hardware clear the brake drawing.
• No spindle, booster or master cylinder is included; the kit does contain mounting hardware for the stated installation.
• Brake lines are a separate purchase. Verify end fittings, safe routing and the length needed for this application. Separate reference: 220-8307.
• This listing supplies one kit for the documented brake configuration.

Fitment & Compatibility

Applications cover 1974–1980 Pinto, 1975–1980 Bobcat and 1974–1978 Mustang II original disc spindles. Confirm that interface and 5 x 5.00-inch wheels before ordering. Use hub shield 300-10716 with stamped-steel wheels. A separate master-cylinder conversion may need pushrod modification. Models covered: Mustang II, Pinto and Bobcat. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

Kit fits 74-80 Pinto / Mustang II original disc brake spindles only.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Separate universal hose choices are 220-7056 (14-inch), 220-7699 (16-inch) or 220-8307 (18-inch). Select the correct length and end fittings; these are alternatives, not three required kits.

Master Cylinder may require modification to existing pushrod assembly to install.

If a separate rear parking-brake conversion is also planned, a universal parking cable may need cable or vehicle changes; it is not part of this front kit.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
