Wilwood Mustang II/Pinto/Bobcat Six-Piston Front Conversion, Black Dynapro Calipers, 12.19-Inch Drilled Rotors, 5x5 Pattern

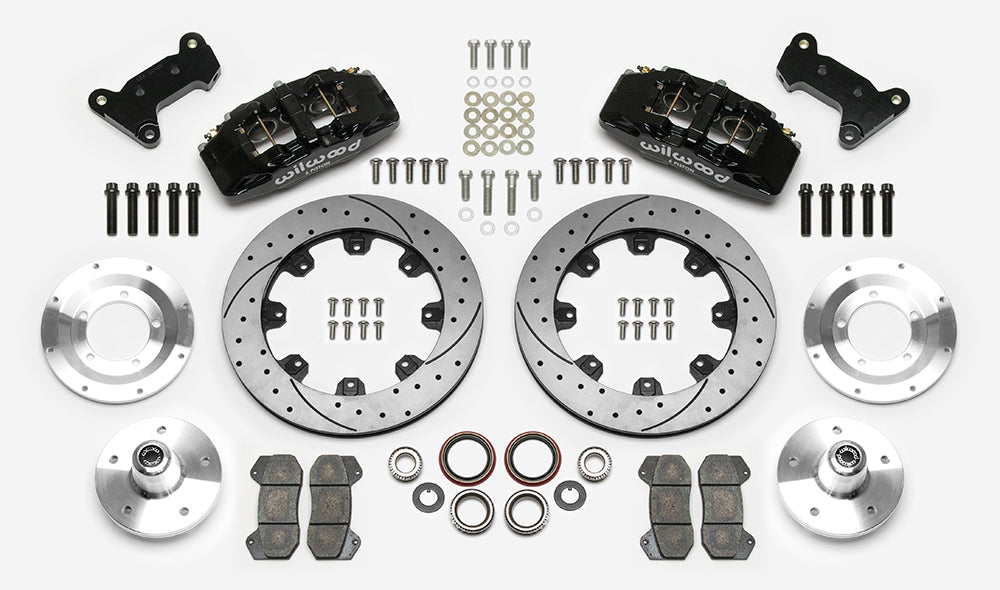

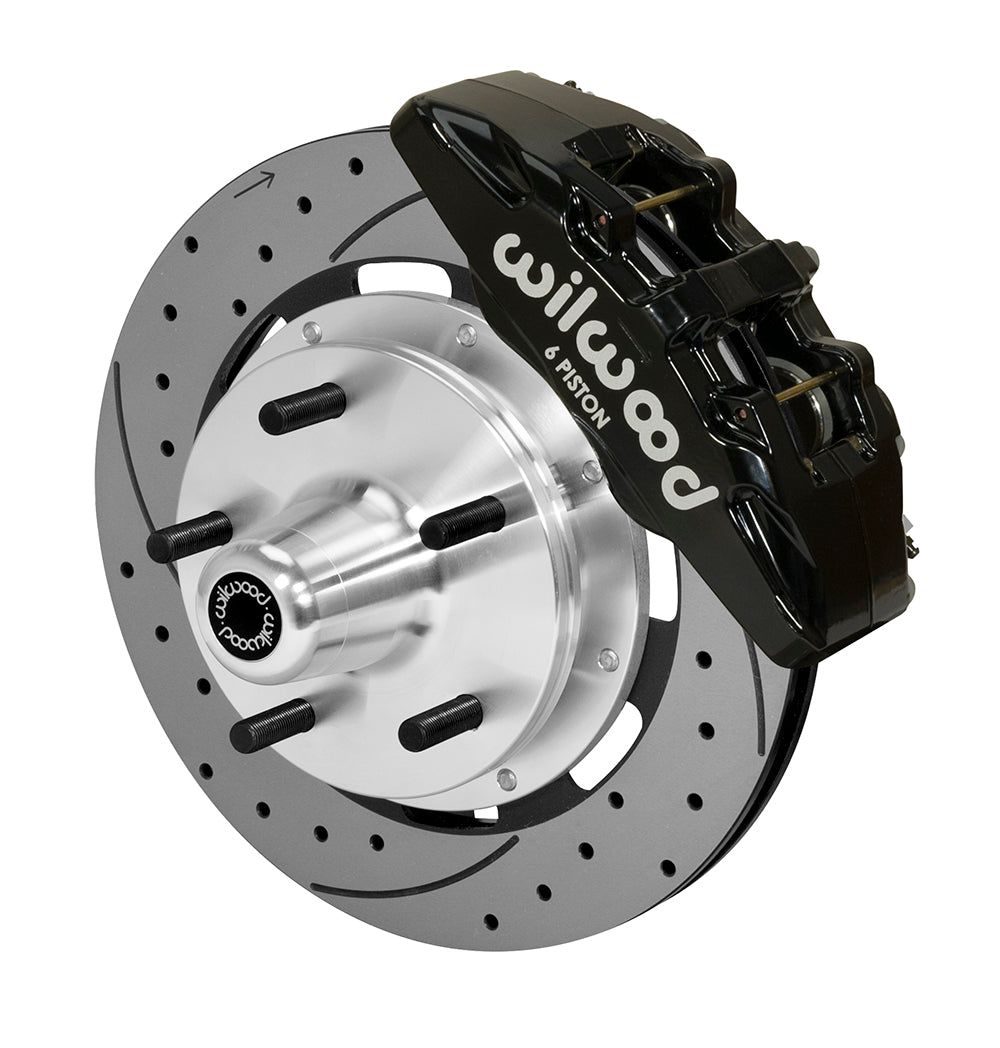

This Wilwood Dynapro 6 kit is a front five-lug disc conversion for Pinto, Bobcat and Mustang II Factory Disc Spindles. Six stainless pistons per Dynapro caliper act on 12.19-inch rotors; the supplied hubs have a 5 x 5.00-inch wheel pattern. From its Camarillo, California base, Wilwood Engineering designs disc brake systems for motorsport, street-performance and specialized needs. Founded in 1977 by Bill Wood, its range covers calipers, rotors, master cylinders, valves, fittings and brake lines chosen to work within a complete brake system.

Technical Details

• Manufacturer part number: 140-14531-D.
• The friction discs measure 12.19 in; 309.63 mm across and 0.81 in; 20.57 mm thick; srp drilled & slotted surfaces are used on vented Iron rotors.
• Each caliper carries 6 pistons made from stainless. The Dynapro 6 design uses forged aluminum, lug mounting and a Black Powder Coat finish.
• BP-10 pads are supplied; the listed bore dimensions are 1.62, 1.38, 1.38 inches.
• Connect the brake line to the specified 1/8-27 NPT inlet.
• Wheel mounting pattern(s) measure 5 x 5 in; 5 x 127 mm. The associated wheel-stud thread is 1/2-20.
• Supplied aluminum hubs provide the wheel mounting; verify the patterns and stud threads stated above.
• Start wheel selection at 15 in; 381 mm; the barrel and spokes still need checking against the caliper-clearance template.
• This package includes its mounting fasteners. It excludes the spindles, master cylinder and booster.
• Order suitable flexlines separately; none are included. Match the chassis fittings and allow full steering/suspension travel. Separate reference: 220-8307.
• Sold as a complete kit for the specified front installation.

Fitment & Compatibility

Applications cover 1974–1980 Pinto, 1975–1980 Bobcat and 1974–1978 Mustang II original disc spindles. Confirm that interface and 5 x 5.00-inch wheels before ordering. Use hub shield 300-10716 with stamped-steel wheels. A separate master-cylinder conversion may need pushrod modification. Models covered: Mustang II, Pinto and Bobcat. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

Kit fits 74-80 Pinto / Mustang II original disc brake spindles only.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Separate universal hose choices are 220-7056 (14-inch), 220-7699 (16-inch) or 220-8307 (18-inch). Select the correct length and end fittings; these are alternatives, not three required kits.

Master Cylinder may require modification to existing pushrod assembly to install.

If a separate rear parking-brake conversion is also planned, a universal parking cable may need cable or vehicle changes; it is not part of this front kit.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
