Wilwood 5x5.00-Inch Hub Front Conversion for Pinto, Bobcat and Mustang II, Black Dynalite Calipers with SRP Rotors

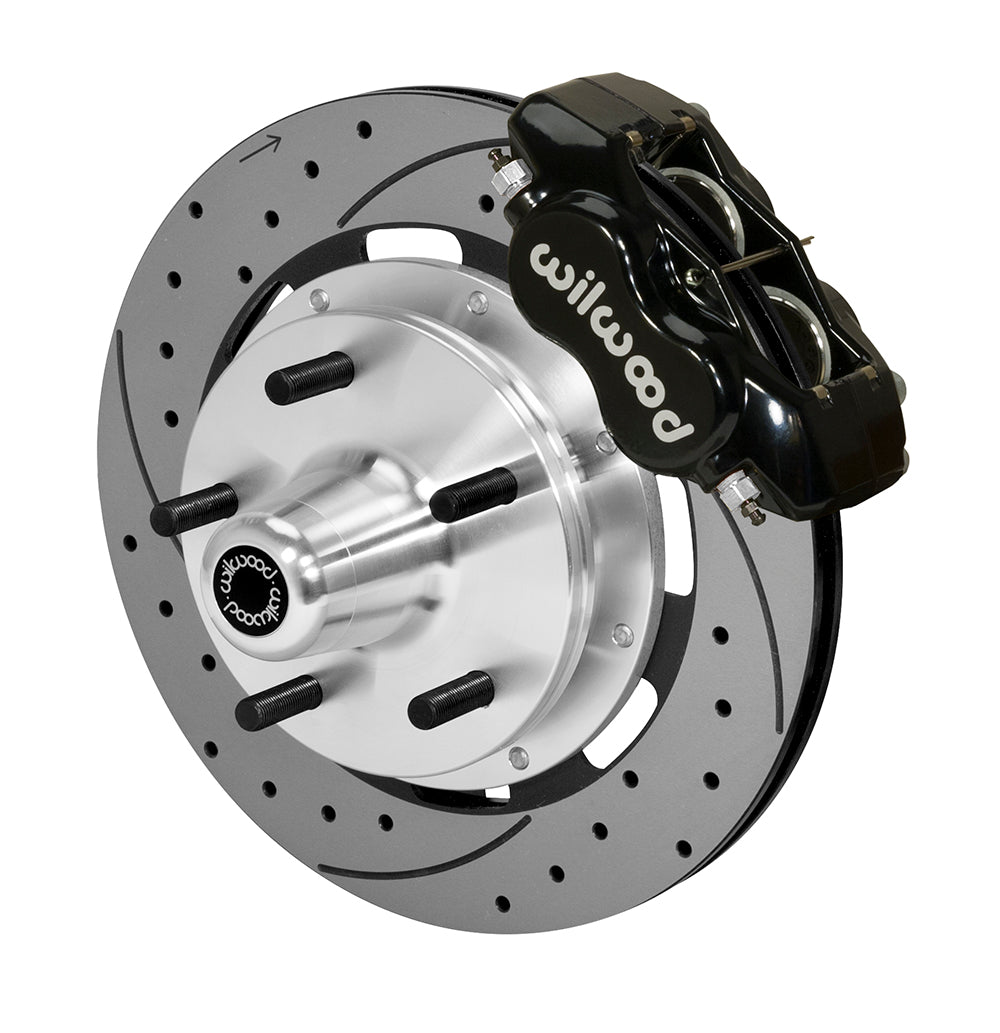

This Wilwood Dynalite kit is a front conversion with 5 x 5.00-inch hubs for Mustang II, Pinto and Bobcat Disc Spindles. Four-piston Dynalite Internal calipers and 12.19-inch rotors combine with aluminum hubs drilled for 5 x 5.00-inch wheels. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

Technical Details

• Manufacturer part number: 140-14530-D.
• Caliper bodies are forged aluminum, with Black Powder Coat treatment. This is the lug-mounted Dynalite version, using 4 stainless pistons per caliper.
• This configuration uses BP-10 brake pads with caliper bores listed as 1.75, 1.75 inches.
• Across the rotor face the measurement is 12.19 in; 309.63 mm; the braking section is 0.81 in; 20.57 mm thick. Both discs use the specified vented Iron design and srp drilled & slotted finish.
• The package supplies separate aluminum hubs, rather than relying on the original hubs. Use the listed wheel patterns and thread specifications.
• For this kit the published wheel mounting pattern(s) are 5 x 5 in; 5 x 127 mm. Check the specified 1/2-20 wheel-stud thread.
• Fluid enters through a 1/8-27 NPT caliper port; match the adapter accordingly.
• Mounting hardware accompanies the brake components; the vehicle's spindle, master cylinder and booster are separate items.
• The stated wheel requirement is 15 in; 381 mm. Nominal diameter alone does not establish clearance around the caliper and rotor.
• A suitable separately purchased line set is required, with compatible fittings and routing. Brake hoses are not supplied. Separate reference: 220-8307.

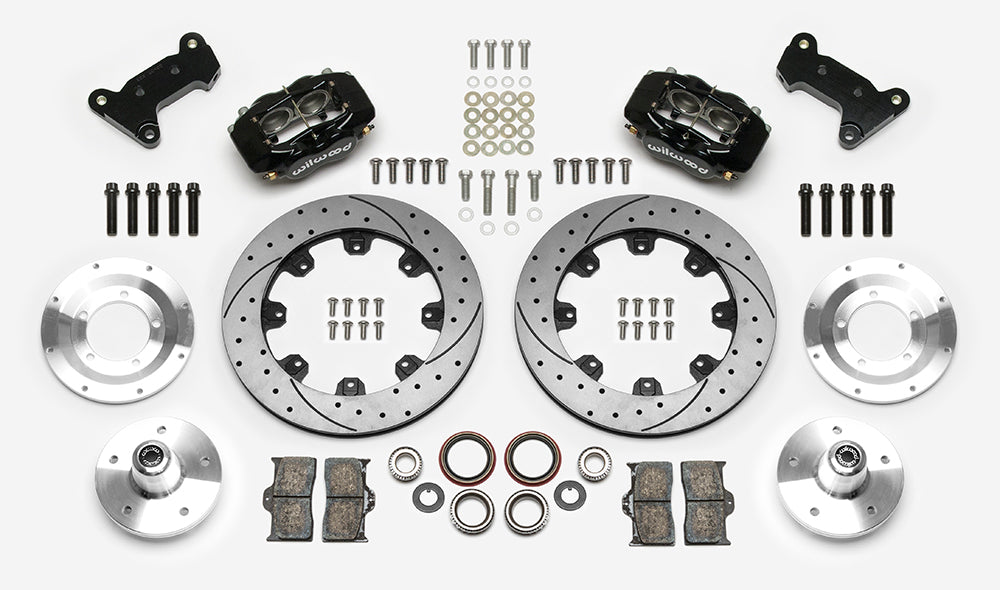

• The components are sold together as one kit for the stated installation.

Fitment & Compatibility

Use the listed 1974–1978 Mustang II, 1974–1980 Pinto and 1975–1980 Bobcat original disc spindles. The supplied 5 x 5.00-inch lug pattern must match the wheels; it is not the original four-lug pattern. Stamped-steel wheels require separately ordered hub shield 300-10716. Master-cylinder pushrod changes may be required for a separately planned master conversion. Models covered: Mustang II, Pinto and Bobcat. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

Kit fits 74-80 Pinto / Mustang II original disc brake spindles only.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Separate universal hose choices are 220-7056 (14-inch), 220-7699 (16-inch) or 220-8307 (18-inch). Select the correct length and end fittings; these are alternatives, not three required kits.

Master Cylinder may require modification to existing pushrod assembly to install.

If a separate rear parking-brake conversion is also planned, a universal parking cable may need cable or vehicle changes; it is not part of this front kit.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
