Wilwood Dynalite Front Brake Kit for Mustang II, Pinto and Bobcat Disc Spindles, Black Calipers, Plain 12.19-Inch Rotors, 5x5 Hubs

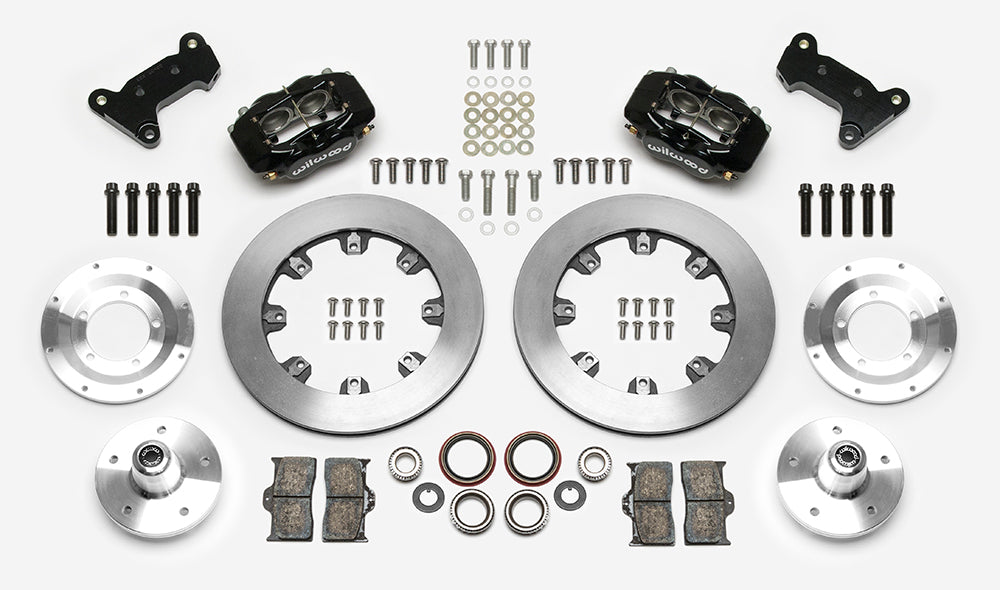

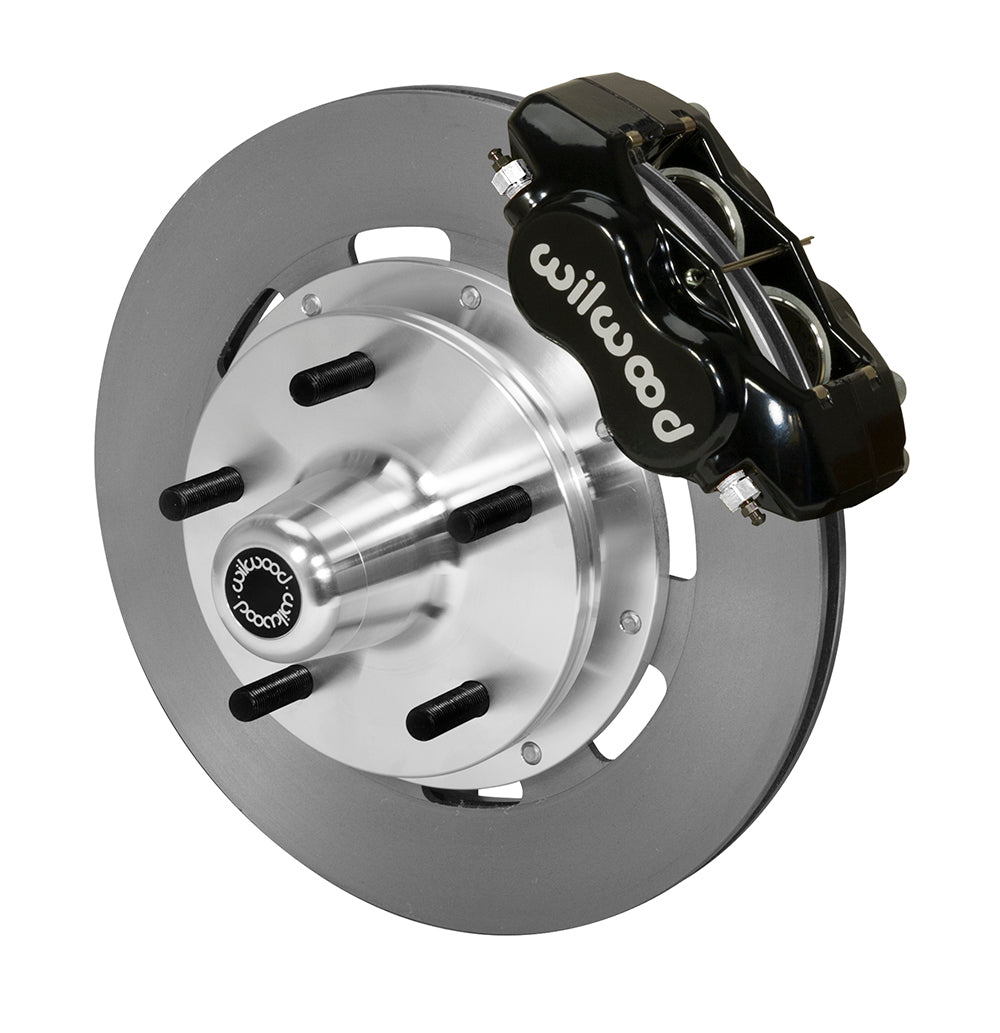

This Wilwood Dynalite kit is a front conversion with 5 x 5.00-inch hubs for Mustang II, Pinto and Bobcat Disc Spindles. Four-piston Dynalite Internal calipers and 12.19-inch rotors combine with aluminum hubs drilled for 5 x 5.00-inch wheels. The kit belongs to Wilwood Engineering's range of disc brake systems and components for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California, and produces calipers, rotors, master cylinders, valves, fittings and brake lines for complete brake-system planning.

Technical Details

• Manufacturer part number: 140-14530.
• At each caliper, the Dynalite configuration provides 4 pistons in stainless, housed in forged aluminum. The caliper attaches by lug mounting and is finished in Black Powder Coat.
• For hydraulic matching, use the published 1.75, 1.75-inch piston bores. Pads are the BP-10 compound.
• This version supplies plain face rotors in Iron. Their 12.19 in; 309.63 mm diameter and 0.81 in; 20.57 mm section are matched to the listed vented brake package.
• This hub kit includes aluminum wheel hubs. Their wheel-bolt layout and stud threads must match the chosen wheels.
• The mounting interface uses 5 x 5 in; 5 x 127 mm; verify the wheel-stud thread of 1/2-20 separately from the bolt circle.
• Inlet-port specification for hose/fitting selection is 1/8-27 NPT.
• The listed brackets and fasteners belong to the kit. Spindles and the master-cylinder/booster assembly are outside the package.
• Wheel clearance must be measured using the installation template; the manufacturer lists 15 in; 381 mm as the nominal minimum.
• No hydraulic flexlines accompany the kit; supply the correct hoses and fittings for the documented caliper/chassis interface. Separate reference: 220-8307.
• Order quantity refers to one brake conversion kit, not an individual loose rotor or caliper.

Fitment & Compatibility

Use the listed 1974–1978 Mustang II, 1974–1980 Pinto and 1975–1980 Bobcat original disc spindles. The supplied 5 x 5.00-inch lug pattern must match the wheels; it is not the original four-lug pattern. Stamped-steel wheels require separately ordered hub shield 300-10716. Master-cylinder pushrod changes may be required for a separately planned master conversion. Models covered: Mustang II, Pinto and Bobcat. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

Kit fits 74-80 Pinto / Mustang II original disc brake spindles only.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Separate universal hose choices are 220-7056 (14-inch), 220-7699 (16-inch) or 220-8307 (18-inch). Select the correct length and end fittings; these are alternatives, not three required kits.

Master Cylinder may require modification to existing pushrod assembly to install.

If a separate rear parking-brake conversion is also planned, a universal parking cable may need cable or vehicle changes; it is not part of this front kit.

PMB Performance brings 20+ years of parts and fitment experience to brake-system selection. Share the actual spindle or axle details, existing brake package and wheel measurements if you need help confirming this configuration.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
