Wilwood Red Superlite 6R Calipers and 12.88-Inch Drilled/Slotted Front Rotors for Audi A4, S4, RS4 and S5

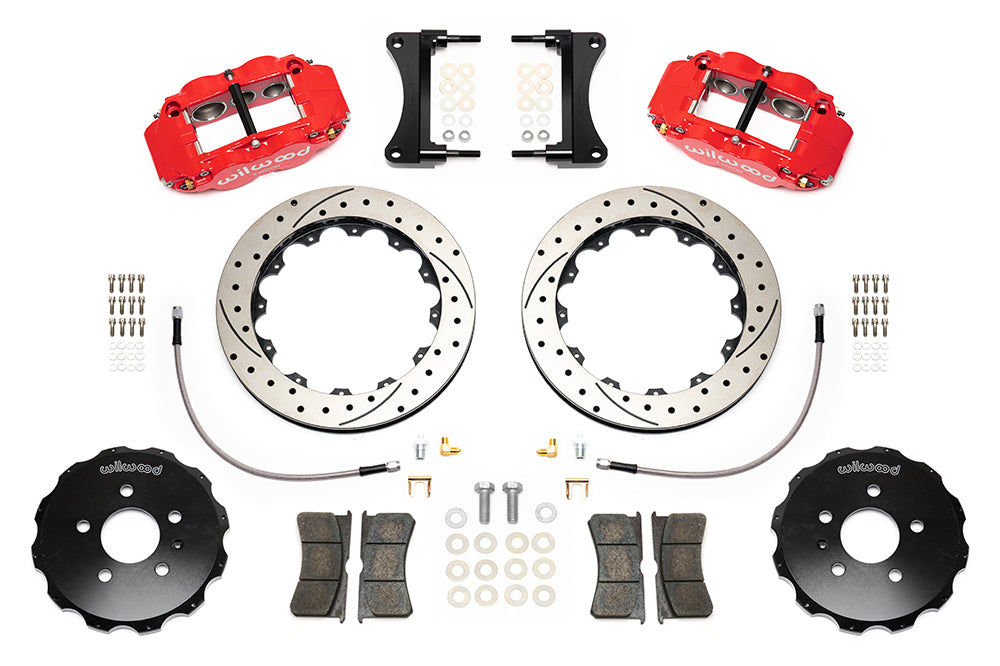

This Wilwood Superlite 6R kit is a front disc upgrade for Audi A4, S4, RS4 and S5. The 12.88-inch rotor package uses narrow six-piston calipers, separate aluminum hats and included braided front hoses. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc brake systems for motorsport, street-performance and specialized applications. Its calipers, rotors, master cylinders, valves, fittings and brake lines must be selected as parts of a complete, matched braking system.

Technical Details

• Manufacturer part number: 140-14487-DR.

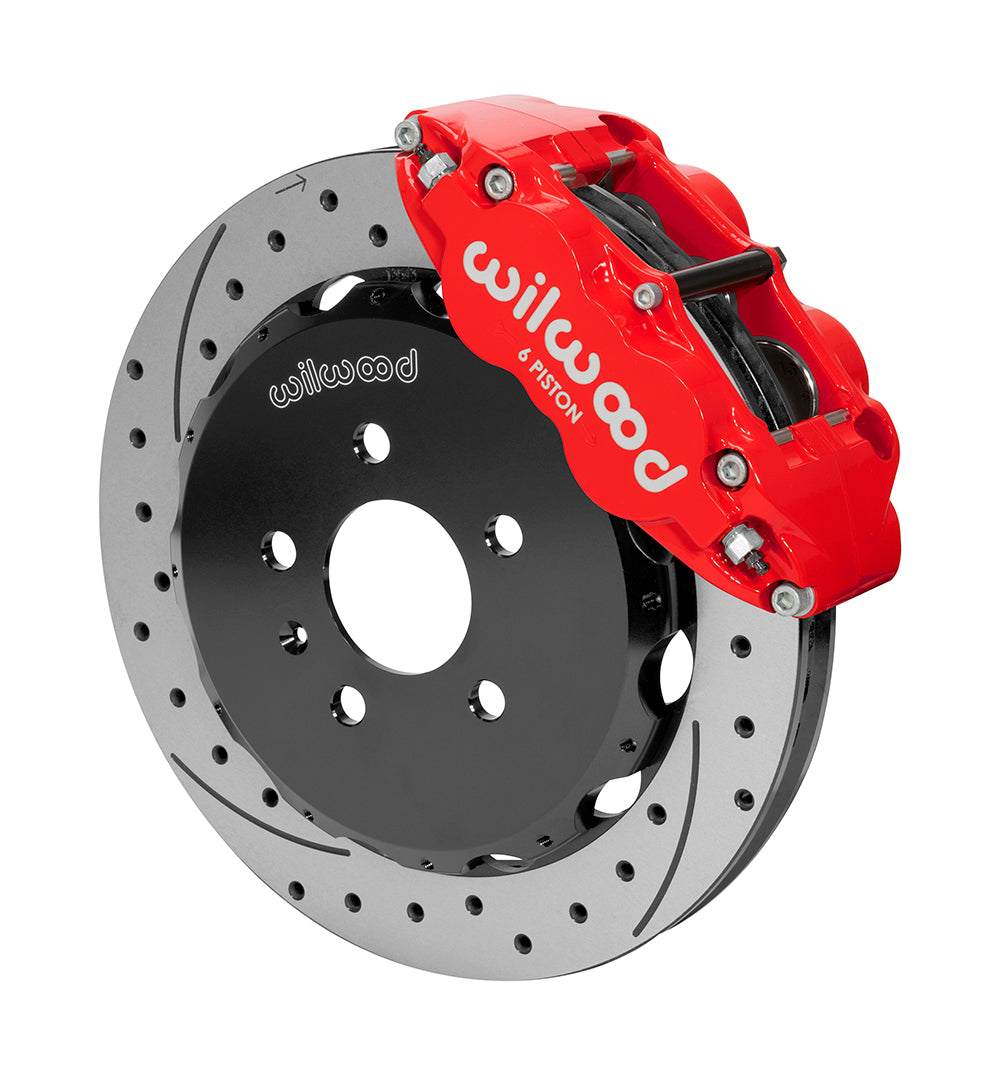

• The specified radial caliper is a Superlite 6R. It combines a Red Powder Coat forged aluminum body with 6 pistons per unit; the published piston material is stainless.
• When planning the line connection, account for the 1/8-27 NPT caliper inlet.
• Bores and friction material: 1.75, 1.25, 1.25 inches, with BP-10 pads supplied for the specified calipers.
• The vented discs have srp drilled & slotted friction surfaces and Spec-37 Iron construction. Nominal dimensions are 1.10 in; 27.94 mm through the braking section and 12.88 in; 327.15 mm at the outside edge.
• Aluminum hats with Black E-Coat finish complete the two-piece rotor assembly.
• The nominal hat stud-hole clearance diameter is 0.590 in; 14.99 mm; the matching wheel mounting pattern(s) are 5 x 4.41 in; 5 x 112.01 mm. These describe different aspects of the attachment.
• Use the specified original or compatible existing hubs. The kit contains no wheel hubs.
• The supplied hardware mounts the specified brake package. It does not include replacement spindles, a brake booster or a master cylinder.
• Supplied line kit 220-14598 provides the braided brake hoses; the stated length is 20.00 in. Verify both ends and clearance through full travel.
• The caliper package calls for at least the published 17 in; 431.8 mm wheel diameter, plus sufficient spoke and inner-barrel clearance.
• This is a kit listing; one package contains the brake components described above.

Fitment & Compatibility

Use the exact Audi year/body/VIN rows: 2002 A4/S4 require VIN E in the eighth position; 2009 A4/S4 coverage is Cabriolet. The listed 2008 S5 row is corroborated by Wilwood's AU 01 application page. The hose chassis bracket must be opened to 0.625-inch diameter as DS-1220 describes. Models covered: A4, S4, RS4 and S5. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

PMB Performance has more than 20 years of experience with parts and fitment. We can help review the specified kit against your vehicle's actual spindle, axle or existing brake components and wheel-clearance information.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
