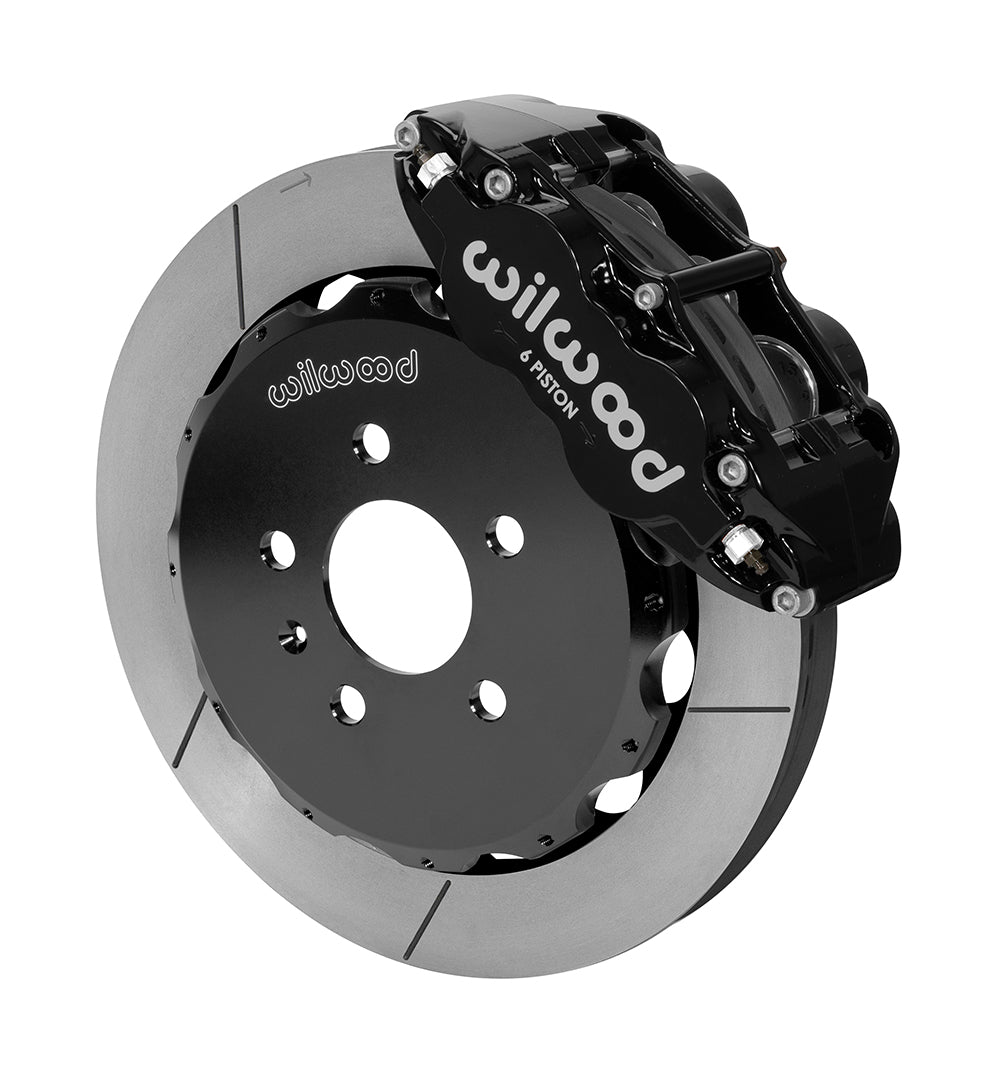

Wilwood Black Superlite Front Brake Kit, 12.88-Inch GT Rotors for Audi A4, S4, RS4 and S5

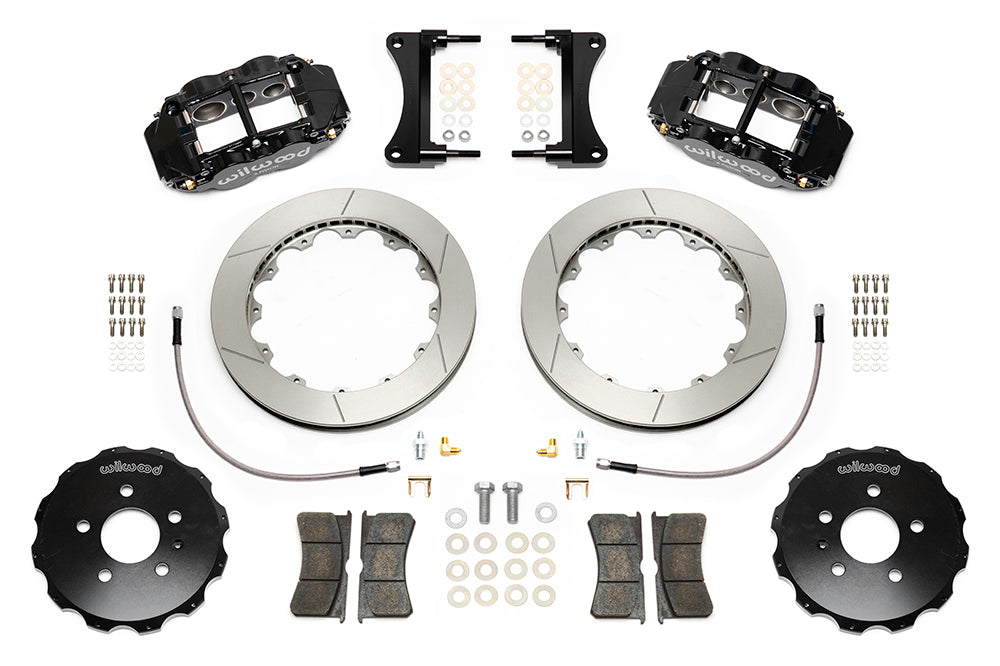

This Wilwood Superlite 6R kit is a front disc upgrade for Audi A4, S4, RS4 and S5. The 12.88-inch rotor package uses narrow six-piston calipers, separate aluminum hats and included braided front hoses. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering manufactures disc brake systems and components. Its motorsport, street-performance and specialized range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with compatibility assessed across the complete braking system.

Technical Details

• Manufacturer part number: 140-14487.
• Caliper bodies are forged aluminum, with Black Powder Coat treatment. This is the radial-mounted Superlite 6R version, using 6 stainless pistons per caliper.
• Fluid enters through a 1/8-27 NPT caliper port; match the adapter accordingly.
• This configuration uses BP-10 brake pads with caliper bores listed as 1.75, 1.25, 1.25 inches.
• Across the rotor face the measurement is 12.88 in; 327.15 mm; the braking section is 1.10 in; 27.94 mm thick. Both discs use the specified vented Spec-37 Iron design and gt slotted finish.
• The supplied aluminum hats are separate from the friction rings and carry a Black E-Coat finish.
• For this kit the published wheel mounting pattern(s) are 5 x 4.41 in; 5 x 112.01 mm. Check the specified 0.590 in; 14.99 mm nominal hat stud-hole clearance diameter.
• Wheel hubs are separate from this kit and must match the documented existing assembly.
• Mounting hardware accompanies the brake components; the vehicle's spindle, master cylinder and booster are separate items.
• Brake hoses are included: 220-14598, 20.00 in. Confirm adequate travel and the correct chassis-side fittings during assembly.
• The stated wheel requirement is 17 in; 431.8 mm. Nominal diameter alone does not establish clearance around the caliper and rotor.
• The components are sold together as one kit for the stated installation.

Fitment & Compatibility

Use the exact Audi year/body/VIN rows: 2002 A4/S4 require VIN E in the eighth position; 2009 A4/S4 coverage is Cabriolet. The listed 2008 S5 row is corroborated by Wilwood's AU 01 application page. The hose chassis bracket must be opened to 0.625-inch diameter as DS-1220 describes. Models covered: A4, S4, RS4 and S5. Use the complete application table at the bottom for the precise year, submodel, brake option and note attached to each row.

With over 20 years of parts experience, PMB Performance can help compare your existing brakes and mounting dimensions with this kit. Send the relevant year, brake option and wheel profile before ordering if the installation has been modified.
