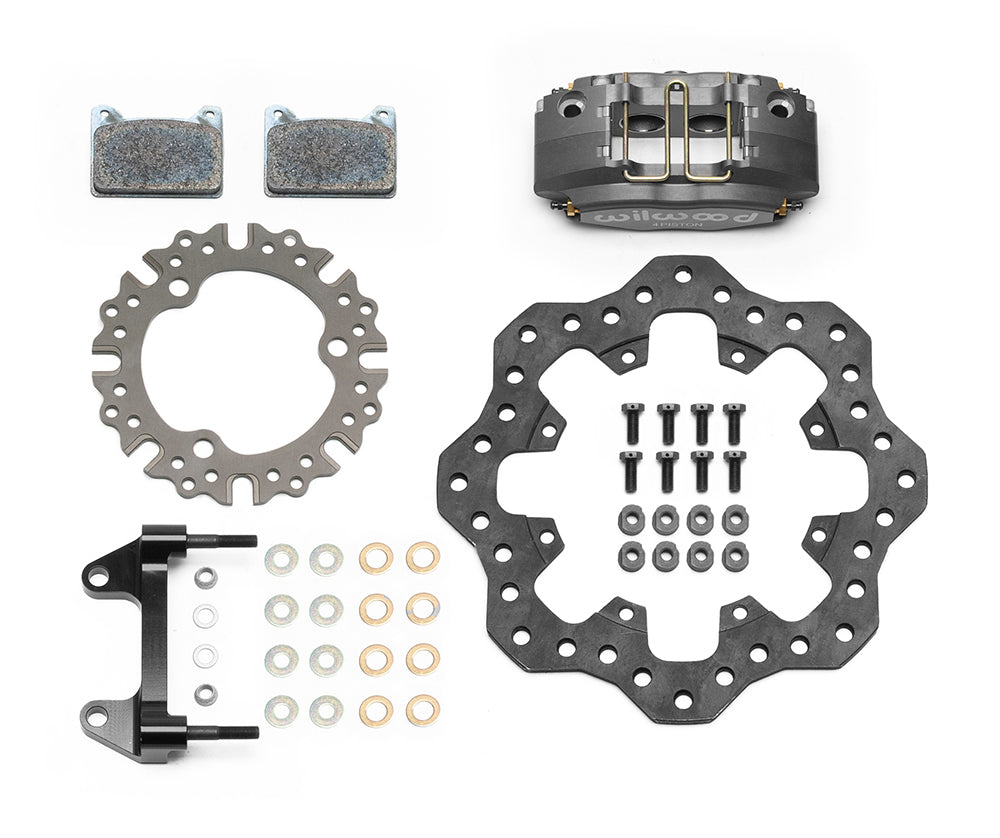

Wilwood Powerlite brake kit: One gray Powerlite four-piston caliper, scalloped drilled steel rotor, separate round adapter, pads and radial mounting bracket with fasteners; 11.75-inch front brake setup for Dirt Modified.

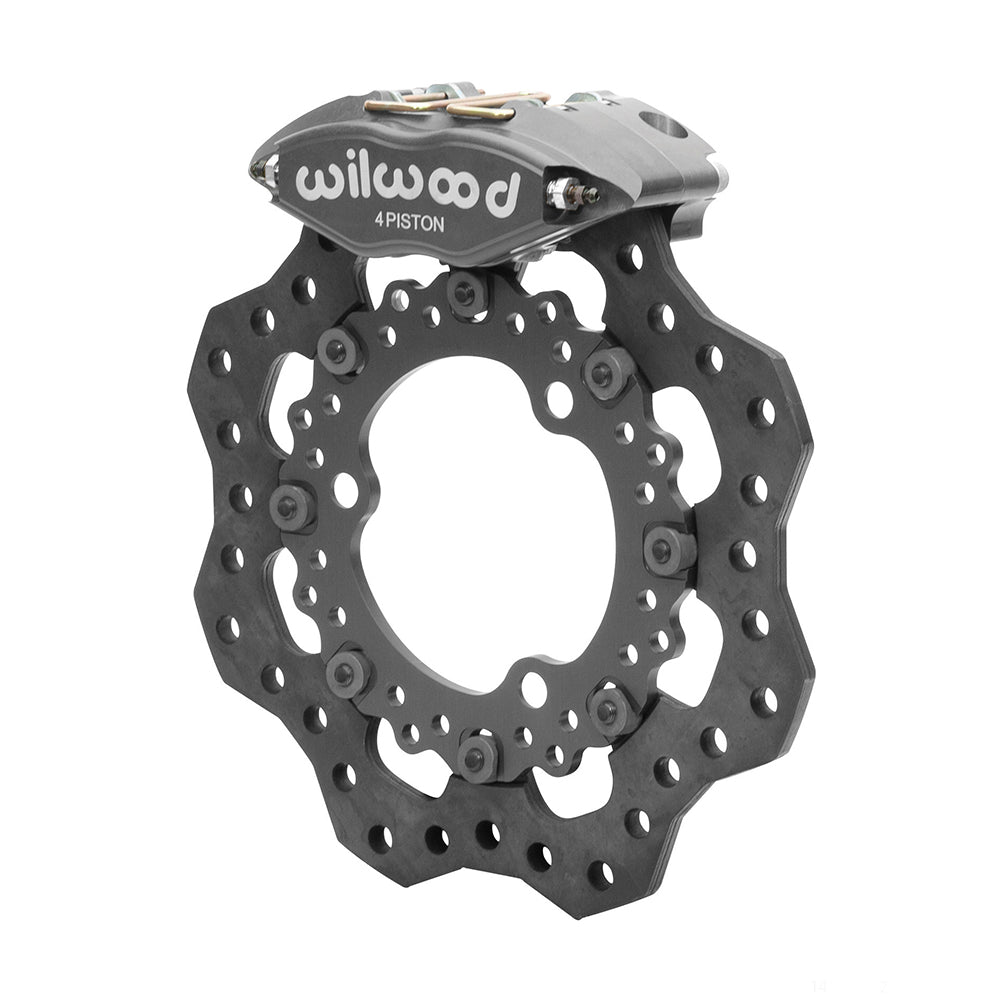

Wilwood Powerlite brake kit: Gray Powerlite caliper over a scalloped drilled rotor and center adapter; the four-piston label is visible; 11.75-inch front brake setup for Dirt Modified.
Wilwood Powerlite brake kit: One gray Powerlite four-piston caliper, scalloped drilled steel rotor, separate round adapter, pads and radial mounting bracket with fasteners; 11.75-inch front brake setup for Dirt Modified.
Wilwood Powerlite brake kit: Gray Powerlite caliper over a scalloped drilled rotor and center adapter; the four-piston label is visible; 11.75-inch front brake setup for Dirt Modified.

Wilwood Powerlite Four-Piston Outboard Dirt Brake Kit, Left Front, Scalloped 11.75-Inch Disc

SKU: 140-14342

$547.78 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Wilwood Powerlite kit is a left-front outboard racing conversion for Dirt Modified Left Front. One four-piston Powerlite caliper works with a scalloped solid rotor in this single-corner package. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures complete disc brake systems and individual calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized installations.

Technical Details

  • Manufacturer part number: 140-14342.
  • One scalloped, drilled solid steel rotor is supplied, measuring 11.75 in; 298.45 mm in diameter and 0.35 in; 8.89 mm thick. Its friction surface is the listed drilled design.
  • One Powerlite caliper is supplied, using a forged aluminum body, 4 stainless pistons and radial mounting. Finish: Type III Anodize.
  • Piston sizes listed by Wilwood are 1.25, 1.25 inches, with BP-40 friction material in this kit.
  • Hydraulic fitting interface on each caliper: 1/8-27 NPT.
  • No wheel hub is supplied for this single-corner kit. Retain and verify the existing left-front hub and spindle.
  • Published wheel minimum is 15 in; 381 mm, subject to the required inside-profile check. Rotor diameter is a separate measurement.
  • Application-specific mounting hardware is supplied. Provide or retain the correct spindle, master cylinder and brake booster separately.
  • The package excludes hydraulic hoses. Choose compatible connections and line length for the specific installation.
  • Sold as one single-corner left-front outboard kit, with one rotor and one caliper.

Fitment & Compatibility

Match the standard left-front outboard dirt-modified upright and existing hub to DS-1198. Customer-supplied spindle and hub attachment hardware is required; verify the radial bracket and adapter interfaces before ordering.

Race use only; this kit is not intended for street use.

For fitment assistance, provide PMB Performance with the existing brake configuration and measured mounting/wheel details. Our 20+ years of parts experience support checking the complete assembly rather than relying only on a model name.

Manufacturer Warning

Applicable to the included brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: www.P65Warnings.ca.gov.
