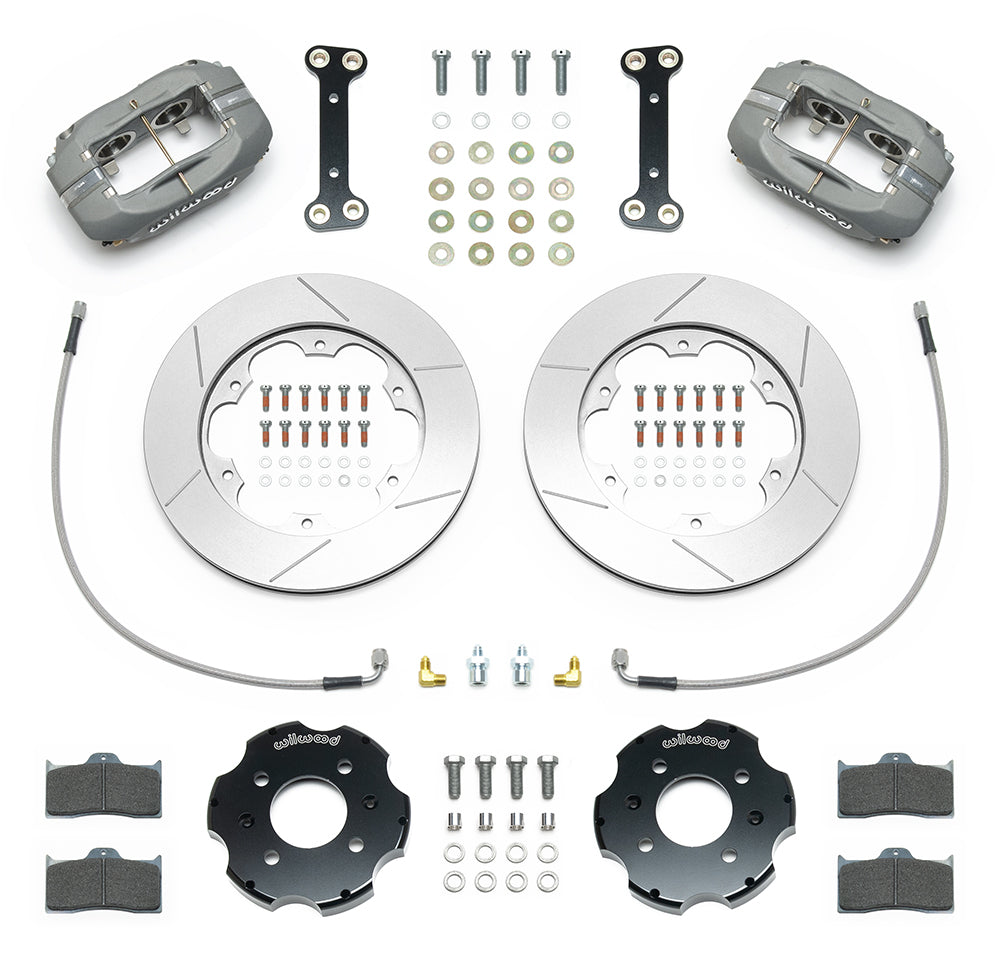

Wilwood gray Dynalite/ST kit laid out with slotted rotor rings, separate hats, brake pads, brackets, braided hoses and hardware

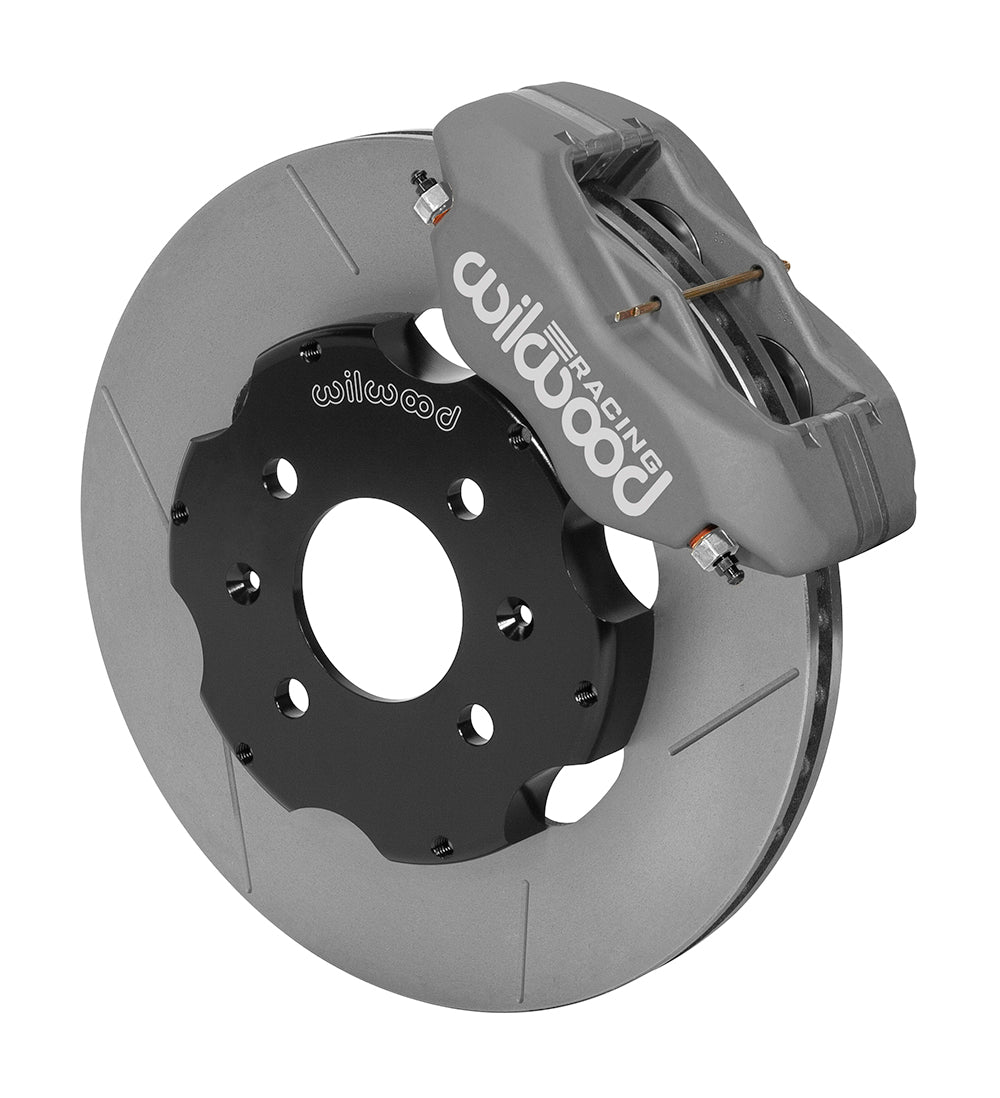

Wilwood gray Dynalite/ST caliper over an assembled 11.00-inch slotted rotor and separate mounting hat
Wilwood gray Dynalite/ST kit laid out with slotted rotor rings, separate hats, brake pads, brackets, braided hoses and hardware
Wilwood gray Dynalite/ST caliper over an assembled 11.00-inch slotted rotor and separate mounting hat

Wilwood Front Dynalite/ST Road-Race Kit for Honda Civic, CRX and Civic del Sol, 11-Inch GT Rotors — Selected 1988–2000 Applications

SKU: 140-14304

$1,467.33 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This four-piston Dynalite/ST road-race conversion is for the specified small-bearing Honda hubs and spindles originally equipped with 240 mm rotors. The 11-inch GT rotor package requires added wheel clearance and the spindle work shown in the guide. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-14304
  • Kit classification: Front Brake Kits - Road Race
  • Axle position: Front Kits
  • Brake Type: Disc
  • Selling unit: Sold as a kit.
  • Recommended Use: Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
  • Pistons per service caliper: 4
  • Service-caliper piston construction: Thermlock
  • Service-caliper mount: Lug
  • Caliper body construction: Forged aluminum
  • Caliper Color: Anodize
  • Caliper Finish: Type III Anodize
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: Dynalite/ST
  • Pad compound: BP-35
  • Rotor Outside Diameter: 11.00 in; 279.4 mm
  • Rotor Thickness: 0.81 in; 20.57 mm
  • Rotor Material: Spec-37 Iron
  • Surface Type: GT Slotted
  • Rotor construction: Vented
  • Bolt Circle Diameter: 4 x 3.93 in; 4 x 99.82 mm
  • Catalog stud / mounting-hole reference: 0.500 in; 12.70 mm
  • Rotor surface finish: Plain
  • Hat material: Aluminum
  • Hat finish: Black E-Coat
  • Hat offset dimension: 0.660 in
  • Minimum wheel guidance (clearance drawing required): 15 in; 381 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: Yes

Fitment & Compatibility

The Honda application requires small-bearing hubs and OE spindles originally equipped with 240 mm/9.45-inch rotors; larger original-rotor and incompatible ABS variants are not covered by a model name alone. DS-1191 requires professional machining of the spindle caliper-mount lugs and recommends the appropriate 15/16–1-inch-bore OE master-cylinder setup or correctly sized race masters. The supplied BP-35 pads are for road racing, with premature wear in prolonged cold use. Front kit 220-6419 is included; 15-inch wheels need the additional internal clearance shown in the guide.

Listed models: Civic; CRX; Civic del Sol. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1988 Honda Civic Sedan w/ AT Disc Drum Front Kit 1, 2, 3, 4, 5
1988 Honda Civic Sedan w/ MT Disc Drum Front Kit 1, 2, 3, 4, 5
1988-1991 Honda Civic Base HB Base Disc Drum Front Kit 1, 2, 3, 4, 5
1988-1989 Honda CRX DX & SI Disc Drum Front Kit 1, 2, 3, 4, 5
1988-1991 Honda CRX HF HF Disc Drum Front Kit 1, 2, 3, 4, 5
1989-1991 Honda Civic HB DX Disc Drum Front Kit 1, 2, 3, 4, 5
1989-1991 Honda Civic Sedan DX / LX Models Disc Drum Front Kit 1, 2, 3, 4, 5
1989-1991 Honda Civic Si HB SI Disc Drum Front Kit 1, 2, 3, 4, 5
1990-1991 Honda CRX DX Disc Drum Front Kit 1, 2, 3, 4, 5
1990-1991 Honda CRX Si SI Disc Disc Front Kit 1, 2, 3, 4, 5
1992-1995 Honda Civic HB Auto Excludes SI Model Disc Drum Front Kit 1, 2, 3, 4, 5
1992-1995 Honda Civic HB Manual Excludes SI Model Disc Drum Front Kit 1, 2, 3, 4, 5
1992-1993 Honda Civic Sedan DX / LX Models w/ AT Disc Drum Front Kit 1, 2, 3, 4, 5
1992-1993 Honda Civic Sedan DX / LX Models w/ MT Disc Drum Front Kit 1, 2, 3, 4, 5
1992-1993 Honda Civic Si HB SI Disc Disc Front Kit 1, 2, 3, 4, 5
1993-1995 Honda Civic Coupe DX w/ Auto Disc Drum Front Kit 1, 2, 3, 4, 5
1993-1995 Honda Civic Coupe DX w/ Manual Disc Drum Front Kit 1, 2, 3, 4, 5
1993 Honda Civic del Sol w/ Rear Disc Disc Disc Front Kit 1, 2, 3, 4, 5
1993 Honda Civic del Sol w/ Rear Drum Disc Drum Front Kit 1, 2, 3, 4, 5
1994-1995 Honda Civic HB SI w/ out ABS Disc Disc Front Kit 1, 2, 3, 4, 5
1994-1995 Honda Civic Sedan DX w/ MT Disc Drum Front Kit 1, 2, 3, 4, 5
1994 Honda Civic Sedan DX Models w/ AT Disc Drum Front Kit 1, 2, 3, 4, 5
1994-1995 Honda Civic Sedan LX w/ AT w/ out ABS Disc Drum Front Kit 1, 2, 3, 4, 5
1994-1995 Honda Civic Sedan LX w/ MT w/ out ABS Disc Drum Front Kit 1, 2, 3, 4, 5
1994-1997 Honda Civic del Sol W/ Rear Drum Disc Drum Front Kit 1, 2, 3, 4, 5
1995 Honda Civic Sedan DX w/ AT Disc Drum Front Kit 1, 2, 3, 4, 5
1995-1997 Honda Civic del Sol W/ Rear Disc S Disc Disc Front Kit 1, 2, 3, 4, 5
1996-2000 Honda Civic Coupe DX / HX Models Disc Drum Front Kit 1, 2, 3, 4, 5
1996-2000 Honda Civic HB Disc Drum Front Kit 1, 2, 3, 4, 5
1996, 1998 Honda Civic Sedan w/ out ABS Disc Drum Front Kit 1, 2, 3, 4, 5
1996 Honda Civic EX Coupe EX w/out ABS Disc Drum Front Kit 1, 2, 3, 4, 5
1997 Honda Civic Sedan Excludes EX Disc Drum Front Kit 1, 2, 3, 4, 5
1998-1999 Honda Civic GX Sedan GX Disc Drum Front Kit 1, 2, 3, 4, 5
1999-2000 Honda Civic Sedan Disc Drum Front Kit 1, 2, 3, 4, 5
