Wilwood Front Slotted-Rotor Conversion, Red AERO6 Calipers and 15-Inch Brakes for Listed Camaros — Selected 2016–2024 Applications

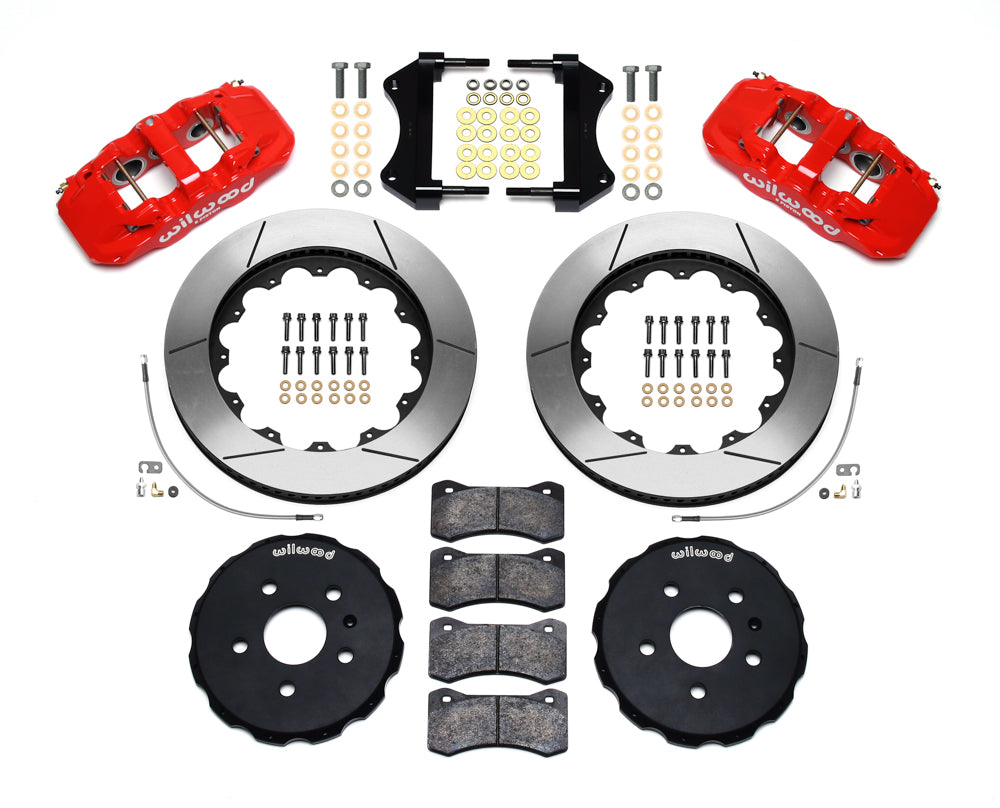

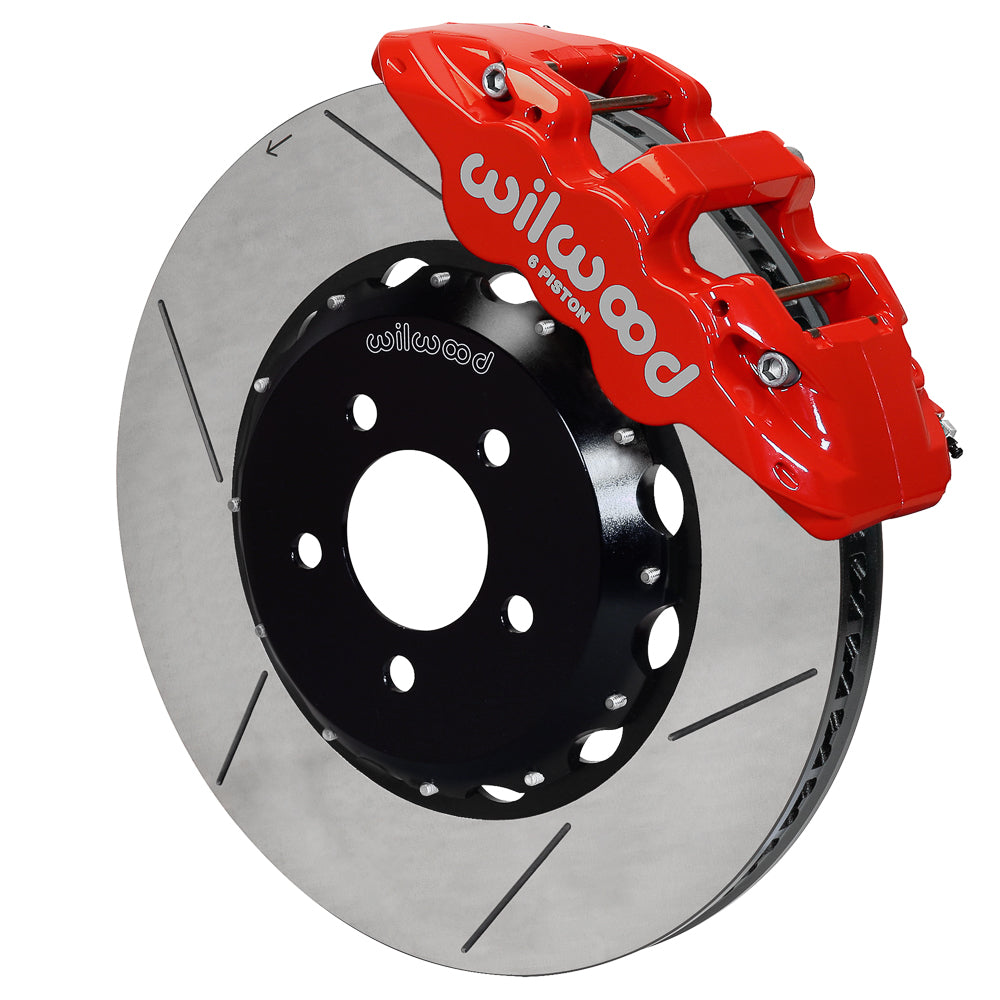

Red AERO6 calipers and 15-inch GT-slotted rotors form this larger Camaro front conversion. Matching the vehicle's actual brake package, hub pilot and wheel interior is necessary even when its model and year appear in the application list. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14289-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel guidance (clearance drawing required): 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.000 in

Fitment & Compatibility

Use the individual Camaro model-year and trim rows, then confirm the actual hub, brake option and wheel envelope. The 15-inch package has 19-inch wheel guidance, subject to the template. Front hose kit 220-11382 is included. DS-1188 illustrates 2016–2019 installations while the current application list extends later; verify any later production changes against the actual car.

Listed models: Camaro. Use the fitment table below for the individual years, submodels and equipment conditions.
