Wilwood Front Red Six-Piston Brake Kit for Camaro 2016–2024, 15-Inch Drilled Rotors and Braided Lines

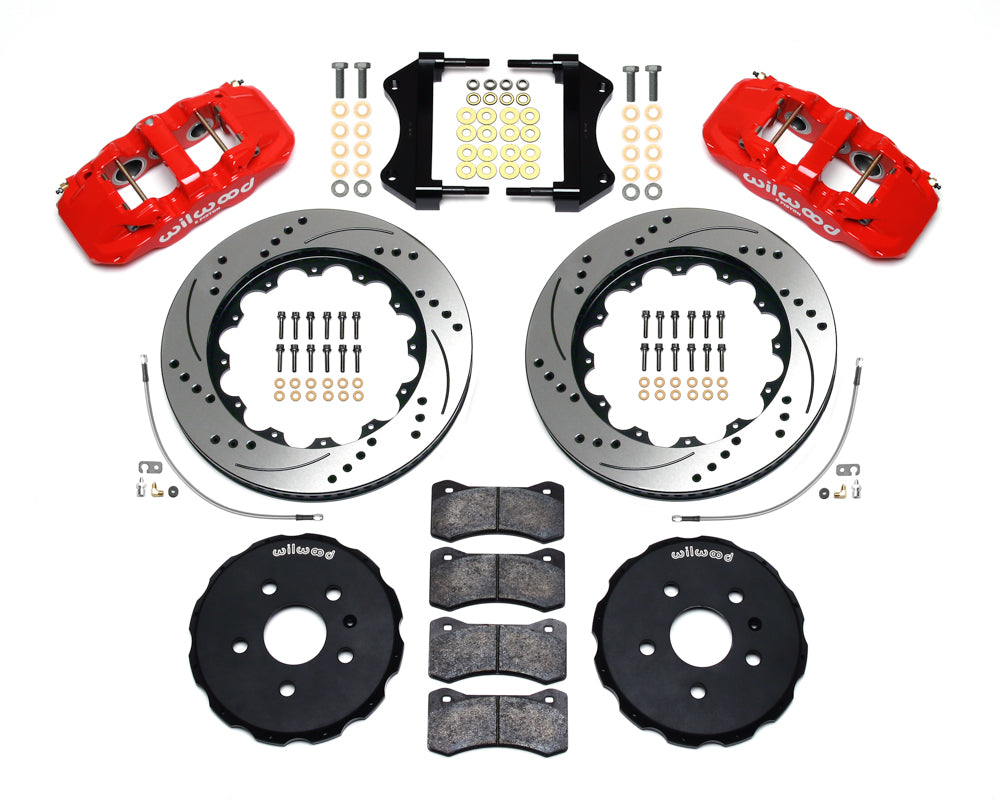

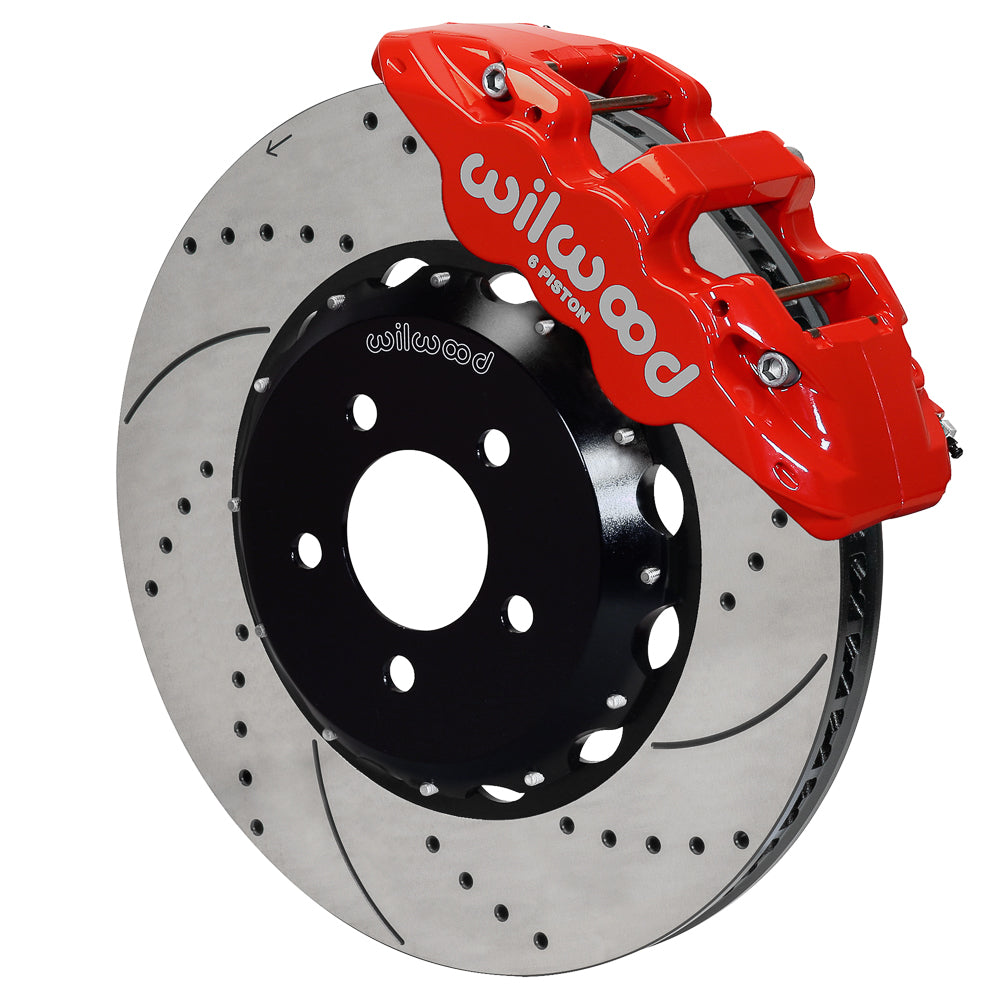

The red drilled-and-slotted AERO6 kit supplies a 15-inch front rotor package for the qualifying Camaro. Its six-piston calipers and radial mounting brackets require confirmed hub registration and clearance inside the actual wheel. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14289-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.000 in
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel guidance (clearance drawing required): 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-10

Fitment & Compatibility

Use the individual Camaro model-year and trim rows, then confirm the actual hub, brake option and wheel envelope. The 15-inch package has 19-inch wheel guidance, subject to the template. Front hose kit 220-11382 is included. DS-1188 illustrates 2016–2019 installations while the current application list extends later; verify any later production changes against the actual car.

Listed models: Camaro. Use the fitment table below for the individual years, submodels and equipment conditions.
