Wilwood Front Black AERO6 Package, 15-Inch Drilled-and-Slotted Rotors for Listed Chevrolet Camaros — Selected 2016–2024 Applications

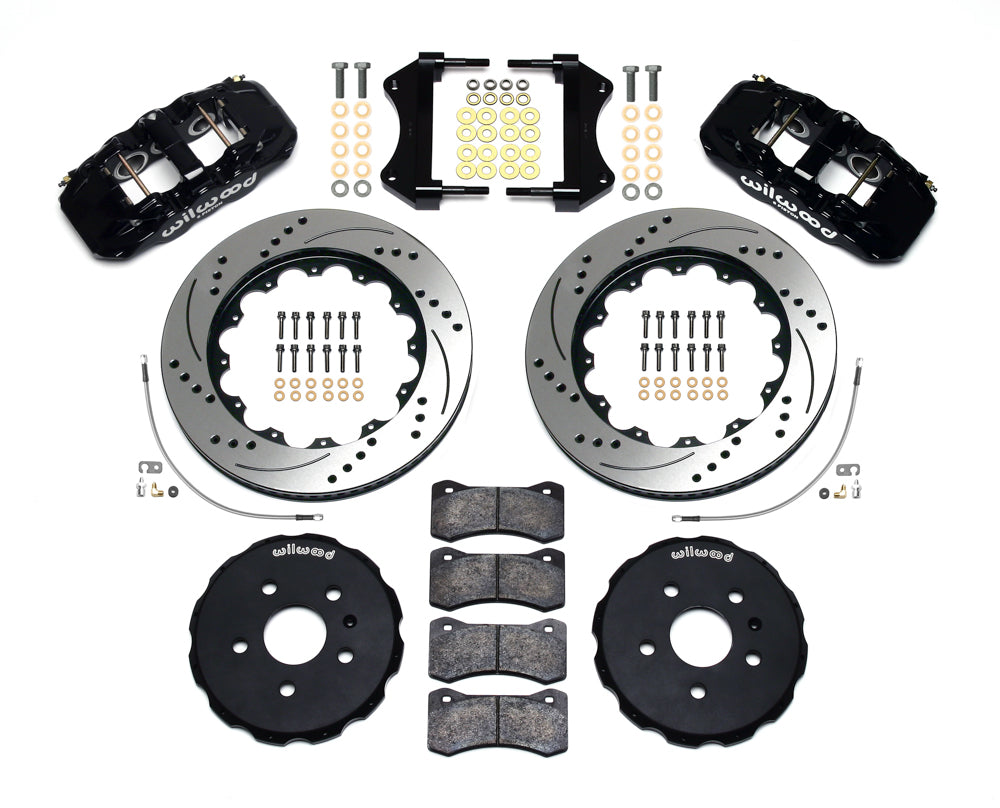

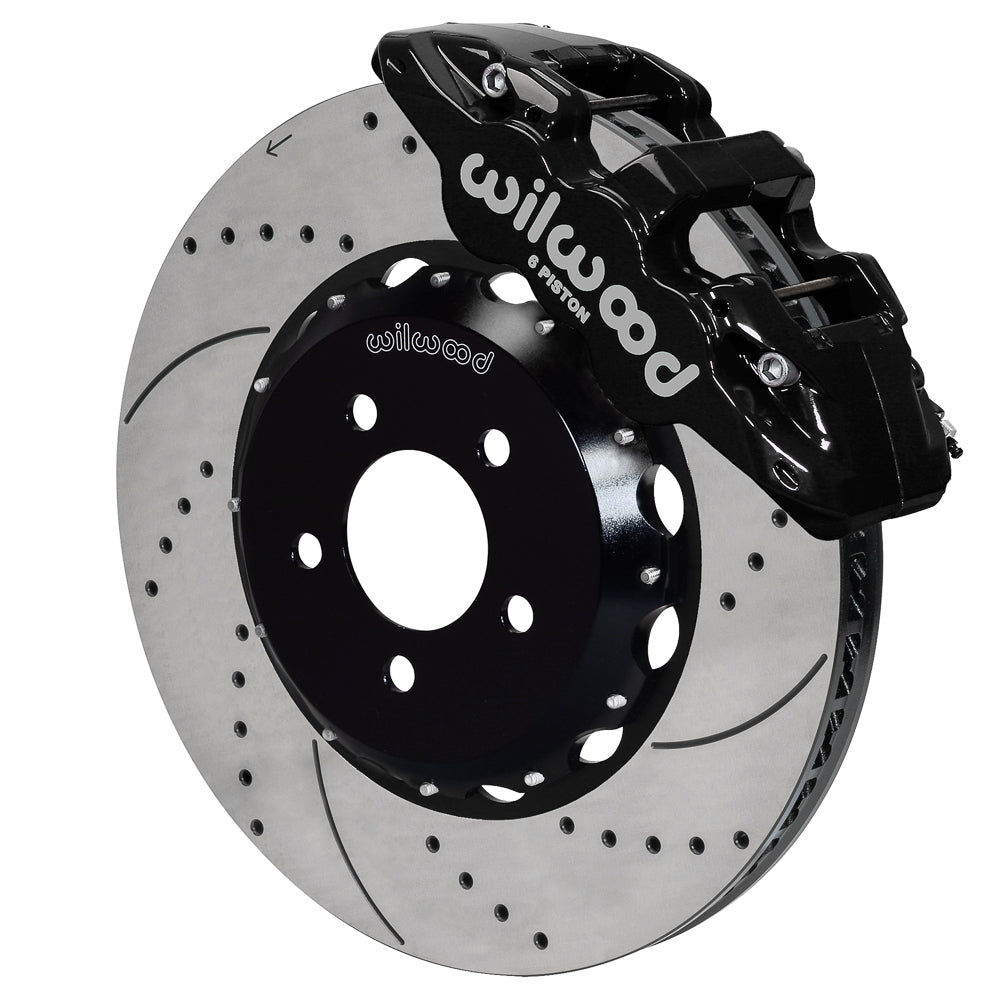

Black six-piston AERO6 calipers work with drilled-and-slotted 15.00 by 1.25-inch rotors in this Camaro kit. The factory hub stays in service, with new hats, registration components and braided flexlines matched to the listed installation. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14289-D
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.000 in
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-10
• Minimum wheel guidance (clearance drawing required): 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No

Fitment & Compatibility

Use the individual Camaro model-year and trim rows, then confirm the actual hub, brake option and wheel envelope. The 15-inch package has 19-inch wheel guidance, subject to the template. Front hose kit 220-11382 is included. DS-1188 illustrates 2016–2019 installations while the current application list extends later; verify any later production changes against the actual car.

Listed models: Camaro. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
