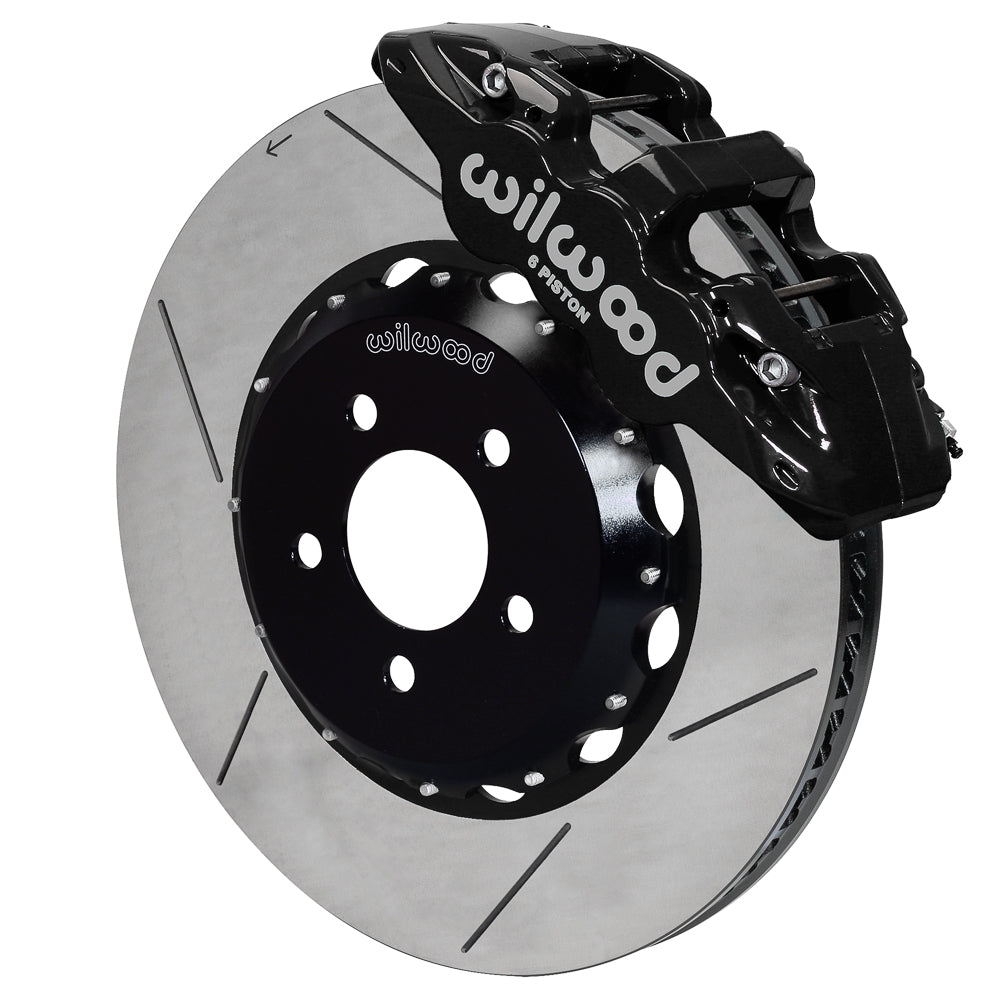

Wilwood Front 15-Inch Slotted Brake Assembly for Camaro, Black Six-Piston AERO6 Calipers — Selected 2016–2024 Applications

The 15-inch front conversion pairs black AERO6 calipers with slotted rotor assemblies for the listed Camaro applications. Its larger rotor envelope must be checked against the wheel barrel and spokes rather than rim diameter alone. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14289
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc

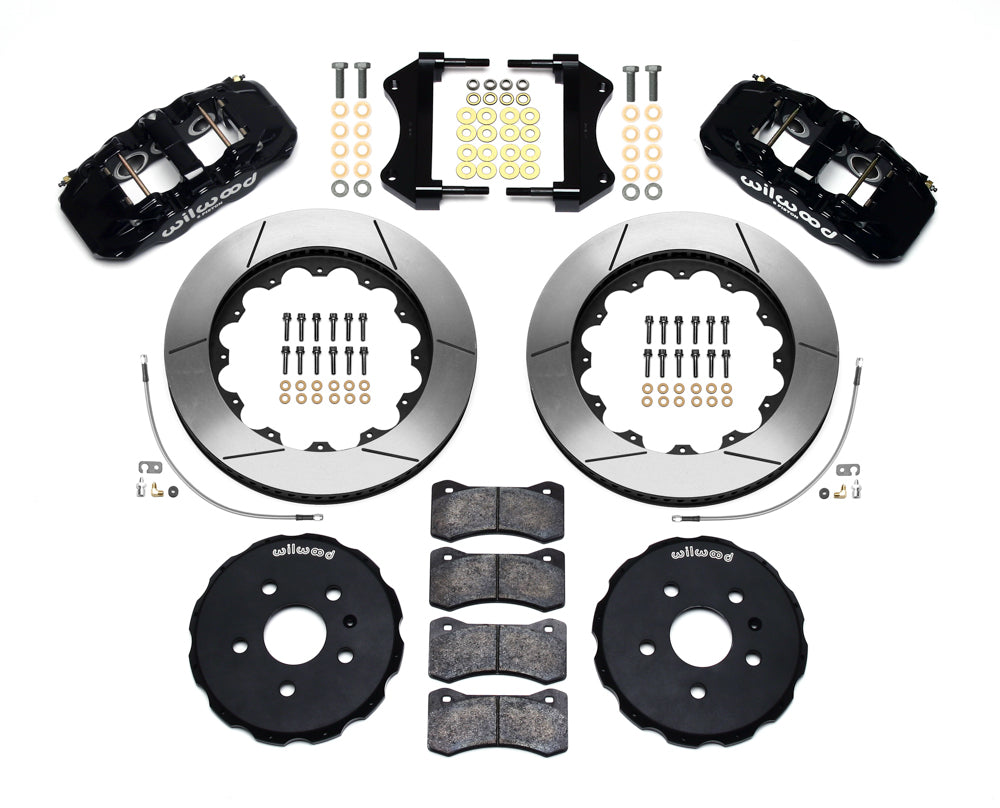

• Selling unit: Sold as a kit.
• Minimum wheel guidance (clearance drawing required): 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.000 in

Fitment & Compatibility

Use the individual Camaro model-year and trim rows, then confirm the actual hub, brake option and wheel envelope. The 15-inch package has 19-inch wheel guidance, subject to the template. Front hose kit 220-11382 is included. DS-1188 illustrates 2016–2019 installations while the current application list extends later; verify any later production changes against the actual car.

Listed models: Camaro. Use the fitment table below for the individual years, submodels and equipment conditions.
