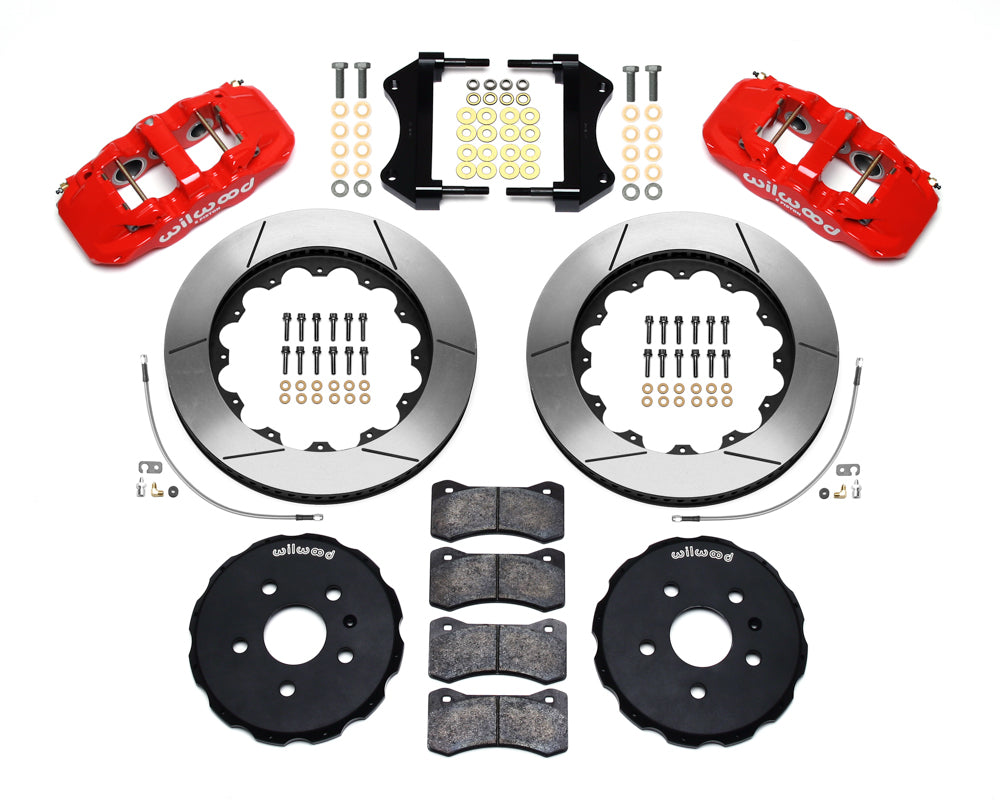

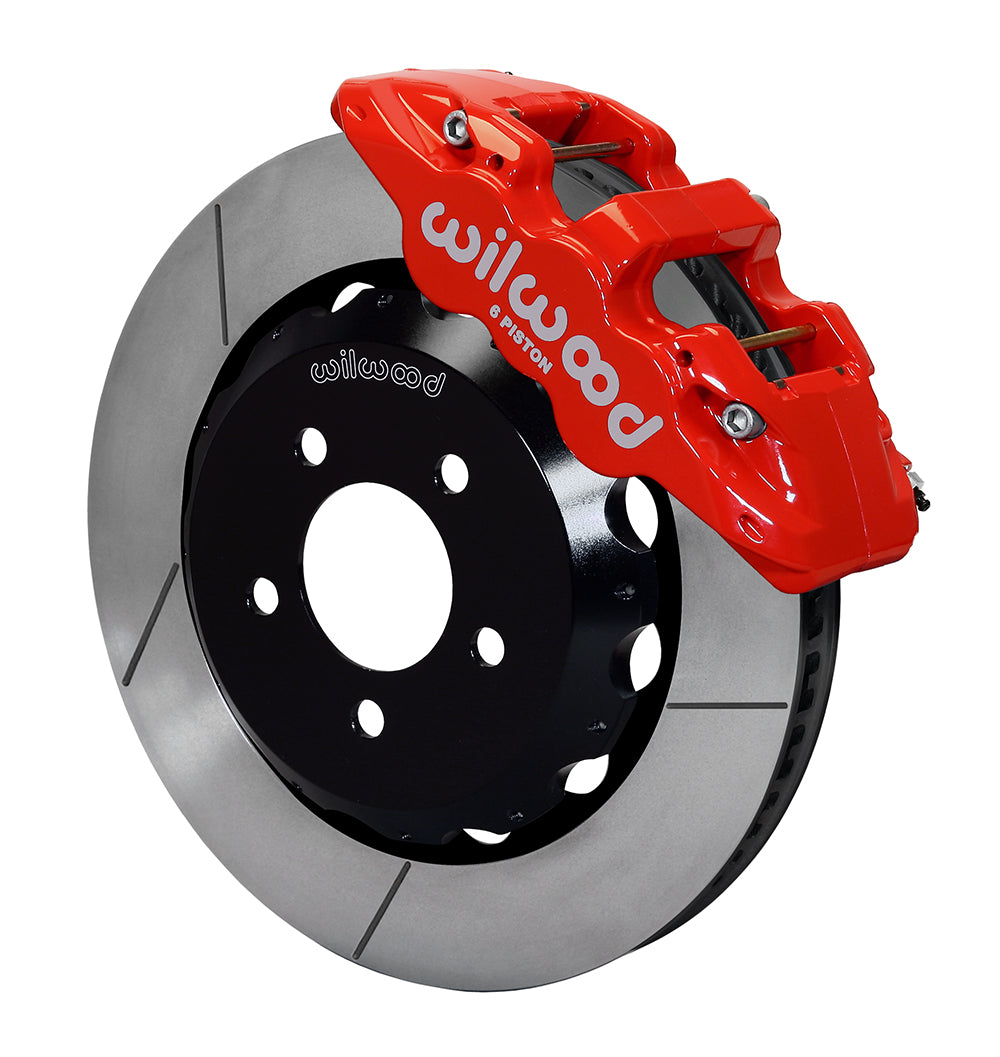

Wilwood Front Slotted 14-Inch Brake Package, Red Six-Piston AERO6 Calipers for Camaro 2016–2024

This red AERO6 Camaro kit uses GT-slotted 14-inch front rotors with aluminum hats. Six-piston calipers, braided lines and radial brackets form the conversion for the exact vehicle and brake-package entries listed below. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14288-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.000 in
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20

Fitment & Compatibility

Verify the exact sixth-generation Camaro year, trim and original brake-package entry, including the distinct 2016 LT J55/JL9 listings. Do not assume every later trim shares the same installed hub and wheel. DS-1187 includes front line kit 220-11382 and the specified registration hardware; its installation examples cover 2016–2019, while the model list below extends to later years. Confirm wheel clearance and current later-year details before fitting.

Listed models: Camaro. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
