Wilwood Front Red AERO6 Brake Kit for Camaro, 14-Inch Drilled-and-Slotted Rotors with Lines — Selected 2016–2024 Applications

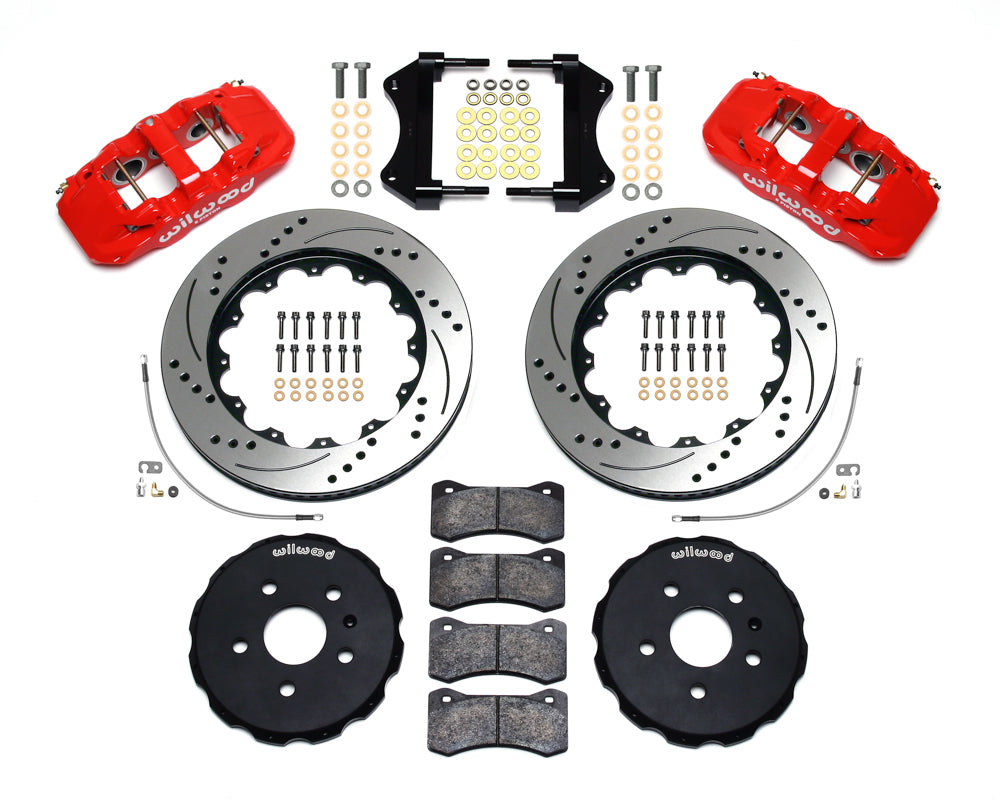

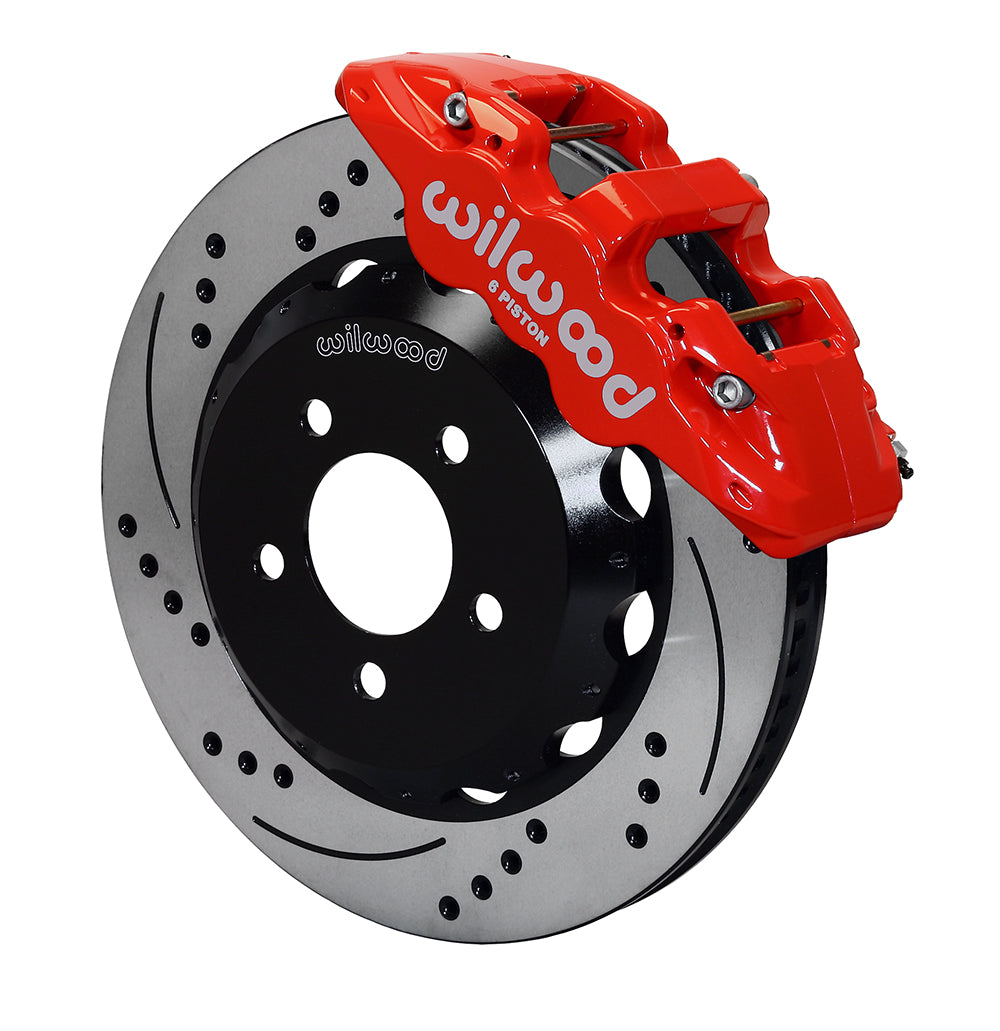

Red AERO6 front calipers clamp 14.00-inch drilled-and-slotted rotors on the specified Camaro hub. This two-piece rotor package includes the front hydraulic hoses and requires the wheel and trim-specific checks in the installation information. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14288-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-10
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.000 in
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

Verify the exact sixth-generation Camaro year, trim and original brake-package entry, including the distinct 2016 LT J55/JL9 listings. Do not assume every later trim shares the same installed hub and wheel. DS-1187 includes front line kit 220-11382 and the specified registration hardware; its installation examples cover 2016–2019, while the model list below extends to later years. Confirm wheel clearance and current later-year details before fitting.

Listed models: Camaro. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
