Wilwood Front Black Six-Piston Camaro Conversion, 14-Inch Drilled Rotors for Listed 2016–2024 Models

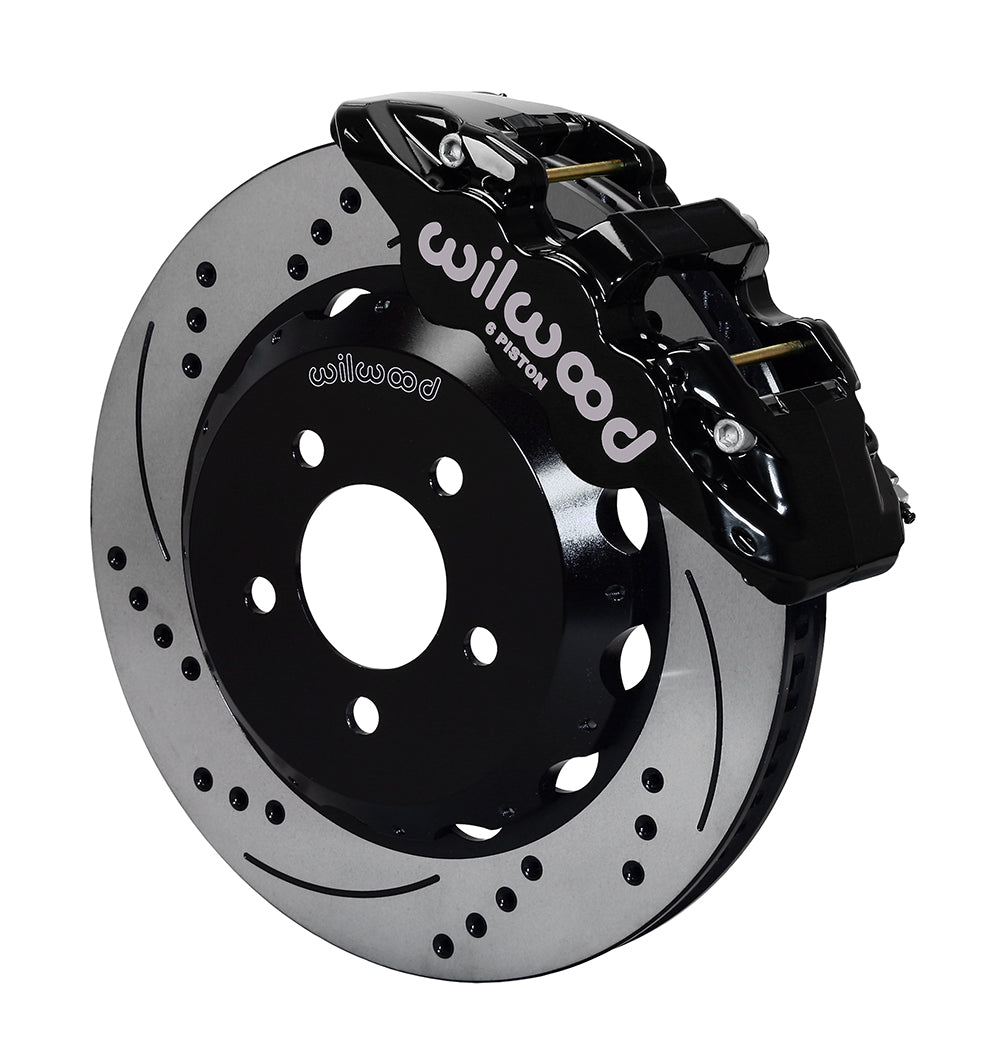

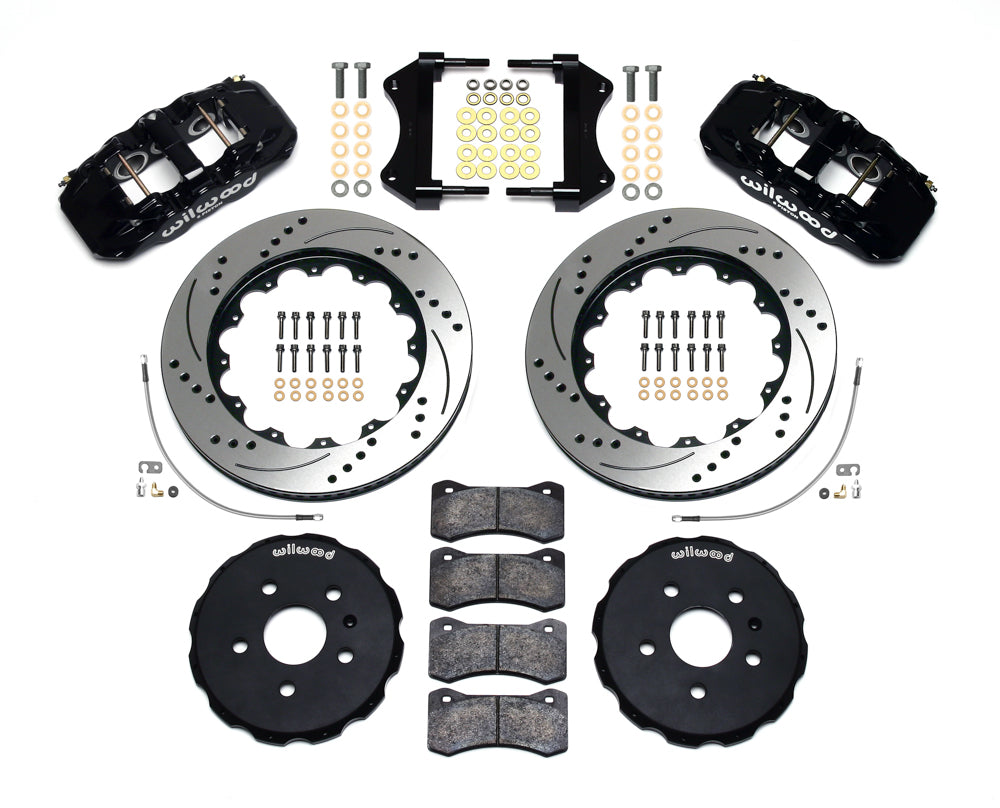

Black AERO6 calipers are paired with 14-inch drilled-and-slotted front rotors in this Camaro conversion. The listed applications distinguish individual LT, SS and other trim/brake configurations; the wheel template remains a separate check. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14288-D
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.000 in
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

Verify the exact sixth-generation Camaro year, trim and original brake-package entry, including the distinct 2016 LT J55/JL9 listings. Do not assume every later trim shares the same installed hub and wheel. DS-1187 includes front line kit 220-11382 and the specified registration hardware; its installation examples cover 2016–2019, while the model list below extends to later years. Confirm wheel clearance and current later-year details before fitting.

Listed models: Camaro. Use the fitment table below for the individual years, submodels and equipment conditions.
