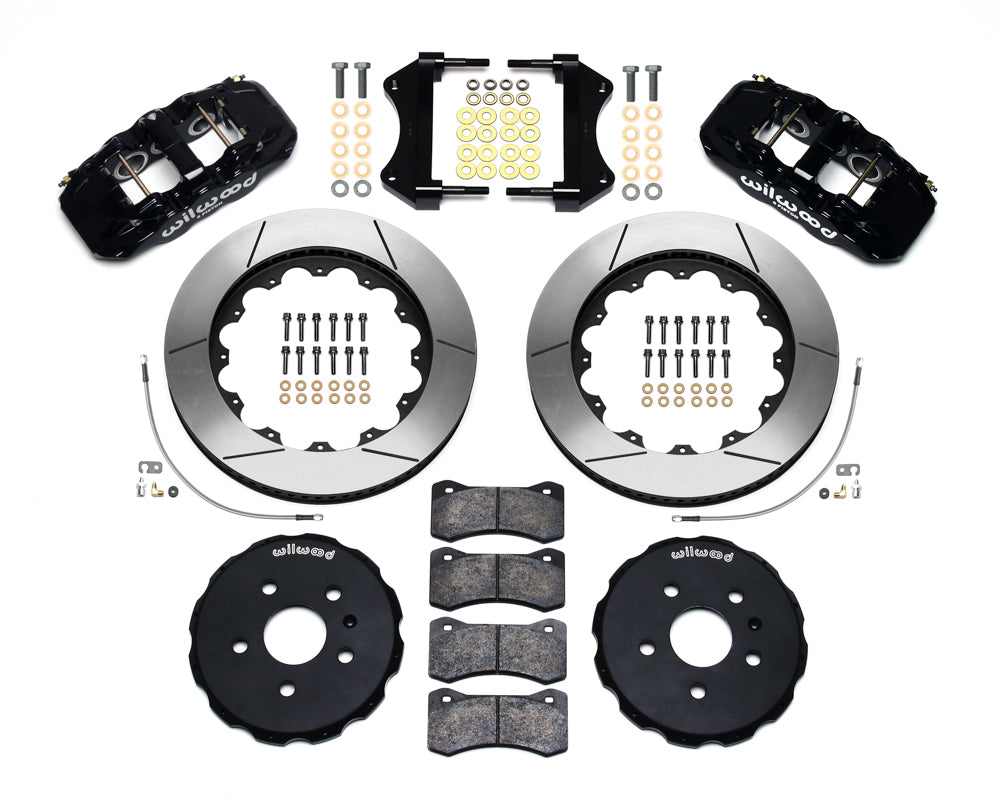

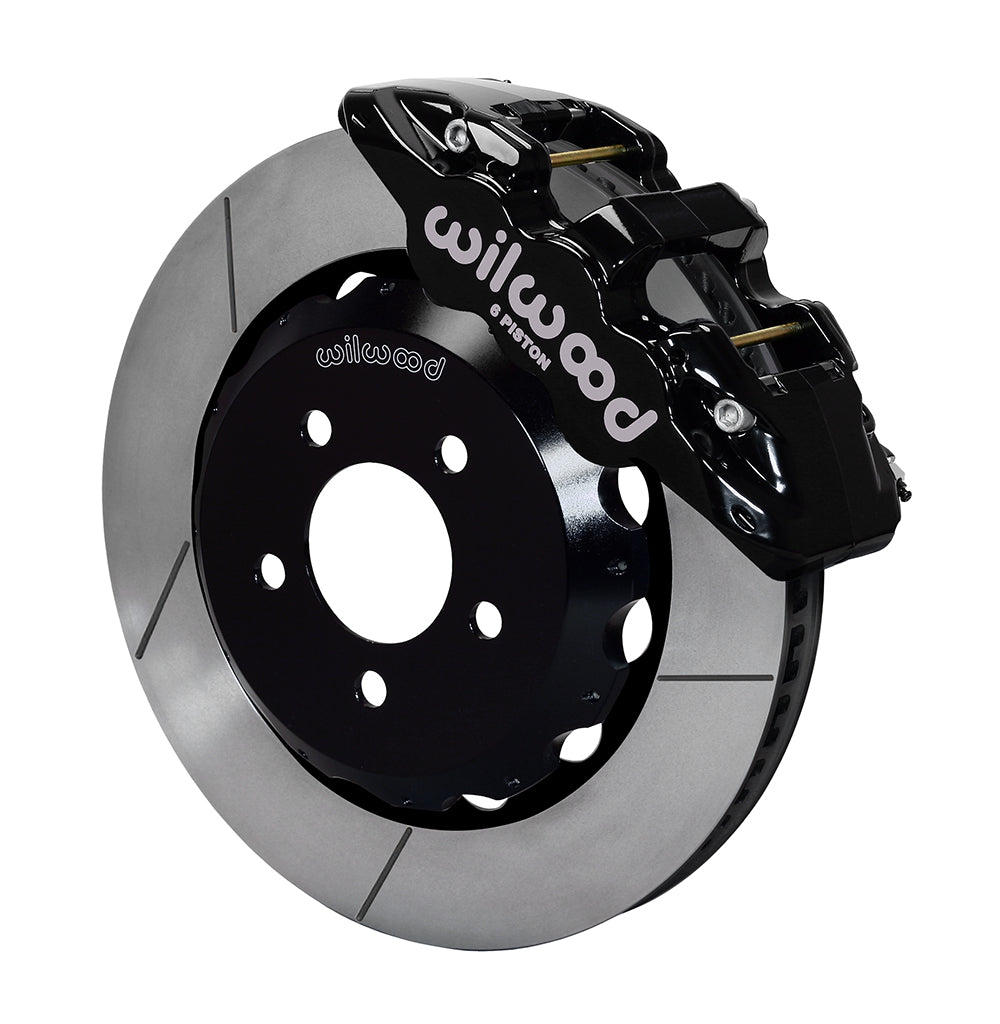

Wilwood Front Black AERO6 Camaro Conversion, 14-Inch GT Rotors and Included Braided Hoses — Selected 2016–2024 Applications

The 14-inch Camaro front package combines black AERO6 six-piston calipers with GT-slotted vented rotors. Application-specific hats, registration rings and included braided hoses must be matched to the listed sixth-generation brake configuration. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14288
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-20
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Catalog stud / mounting-hole reference: 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.000 in

Fitment & Compatibility

Verify the exact sixth-generation Camaro year, trim and original brake-package entry, including the distinct 2016 LT J55/JL9 listings. Do not assume every later trim shares the same installed hub and wheel. DS-1187 includes front line kit 220-11382 and the specified registration hardware; its installation examples cover 2016–2019, while the model list below extends to later years. Confirm wheel clearance and current later-year details before fitting.

Listed models: Camaro. Use the fitment table below for the individual years, submodels and equipment conditions.

Wilwood product specifications · Installation instructions

PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
