Wilwood Front Slotted 14-Inch Brake and Hub Kit, Red Superlite Calipers for Magnum Force Drop Spindles

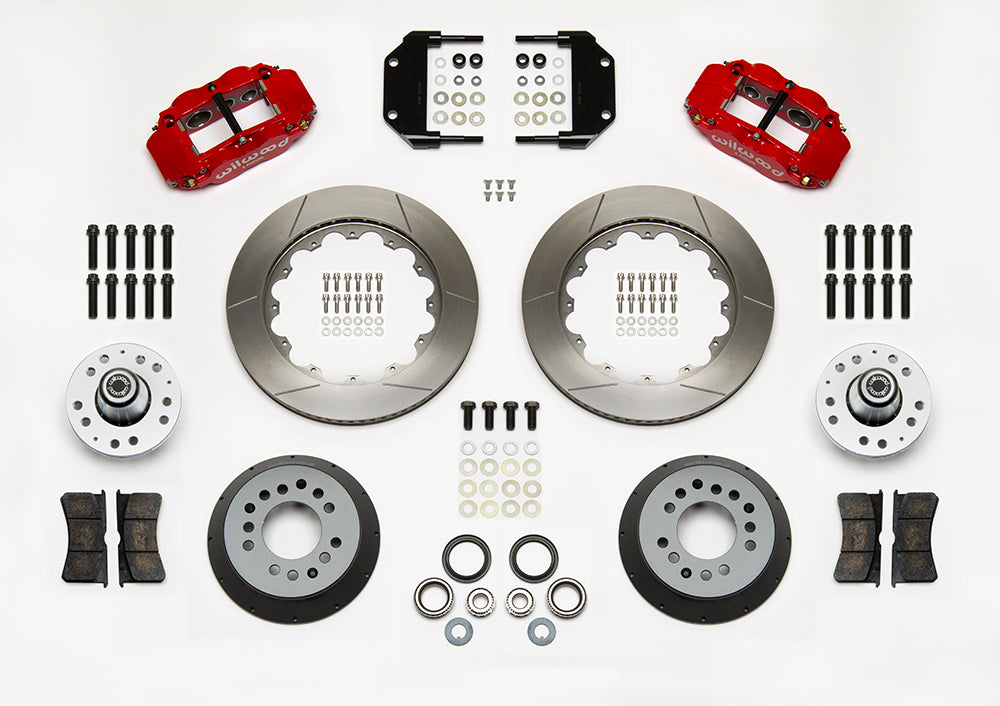

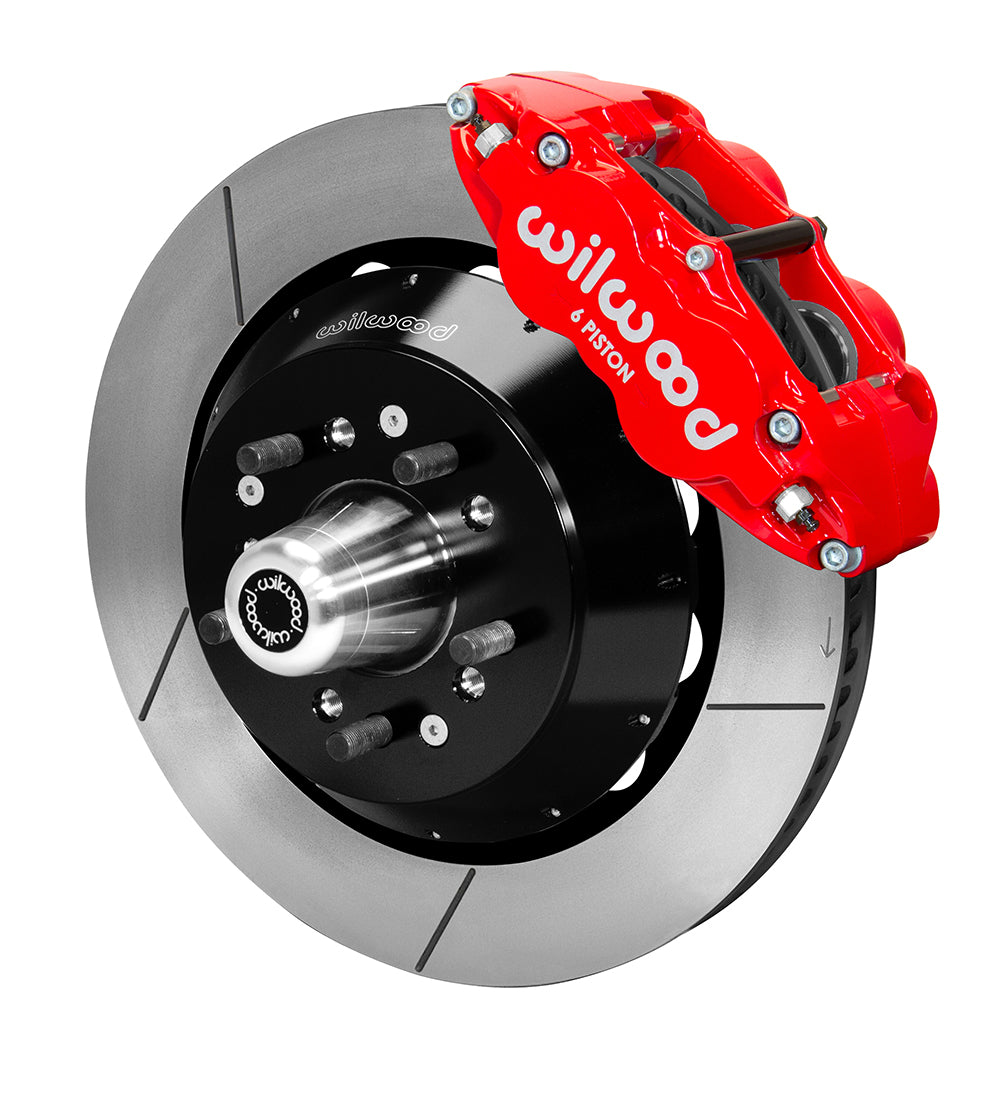

This red Superlite hub kit supplies 14-inch GT-slotted front rotors for the specified Magnum Force drop spindle. Each six-piston caliper and rotor assembly must clear the wheel, with hydraulic flexlines selected separately. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14277-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.10 in; 27.94 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Catalog stud / mounting-hole reference: 1/2-20 thread
• Rotor surface finish: Black Electro Coat
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset dimension: 1.750 in
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Pistons per service caliper: 6
• Service-caliper piston construction: Stainless
• Service-caliper mount: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Superlite 6R
• Pad compound: BP-10

Fitment & Compatibility

DS-1183 specifies the Magnum Force drop spindle and included aluminum wheel hubs. Match the exact spindle, bearing fit and selected 5 x 4.50 or 5 x 4.75-inch wheel pattern; no universal vehicle or ABS compatibility is implied. The specified studs use a 1/2-20 thread; the hat's 0.520-inch mounting holes are a separate dimension. Hydraulic hoses are separate and the 18-inch wheel guidance requires a template check.

Wilwood product specifications · Installation instructions
