Wilwood Front Red Dynalite-M Conversion, 11.03-Inch Plain Hub/Rotors for Mustang II/Pinto/Bobcat — Selected 1974–1980 Applications

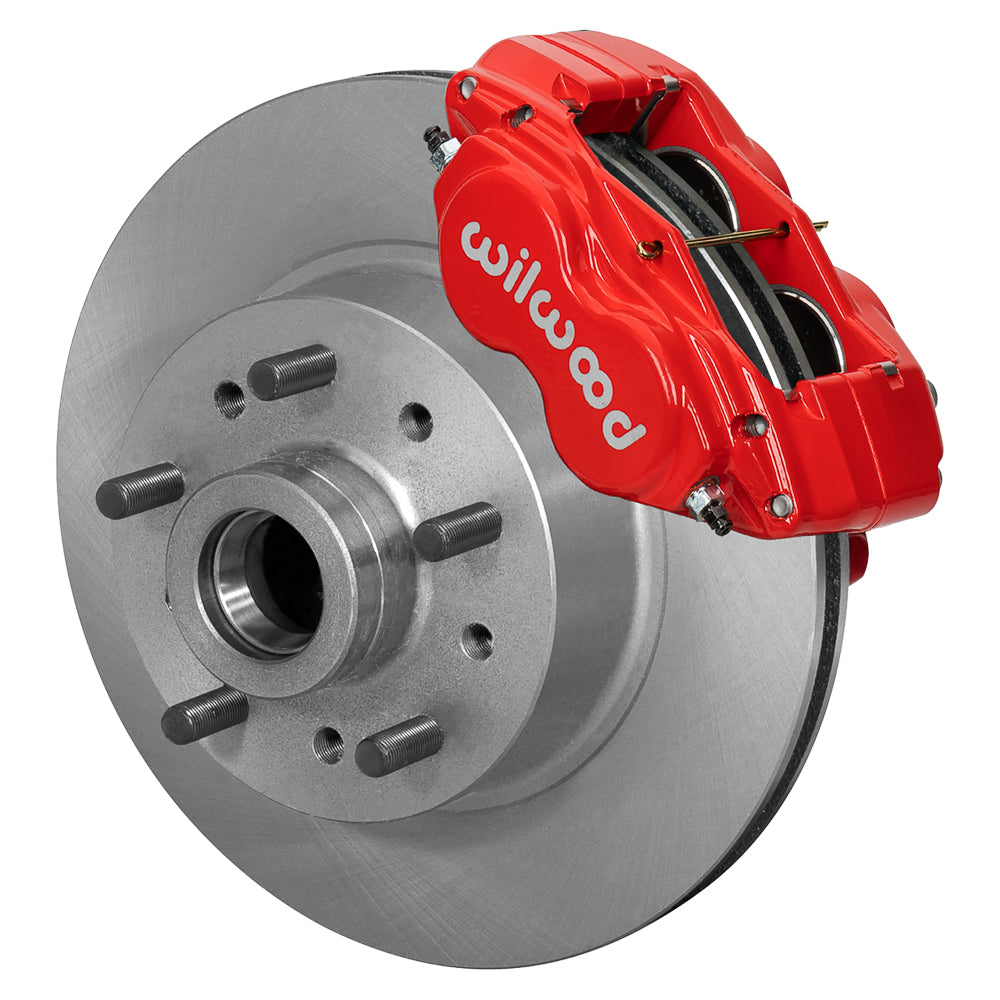

Red four-piston Dynalite-M calipers work with plain-face integral hub-and-rotor units in this front conversion. The kit requires the specified Mustang II, Pinto or Bobcat disc-spindle geometry, with suitable hydraulic lines purchased separately. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-14271-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 4
• Service-caliper piston construction: Stainless
• Service-caliper mount: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite-M
• Pad compound: BP-10
• Rotor Outside Diameter: 11.03 in; 280.16 mm
• Rotor Thickness: 0.88 in; 22.35 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Catalog stud / mounting-hole reference: 0.50 in; 12.70 mm
• Rotor surface finish: Plain
• Minimum wheel guidance (clearance drawing required): 14 in; 355.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Integral hub-and-rotor assemblies included; no separate bolt-on hub
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No

Fitment & Compatibility

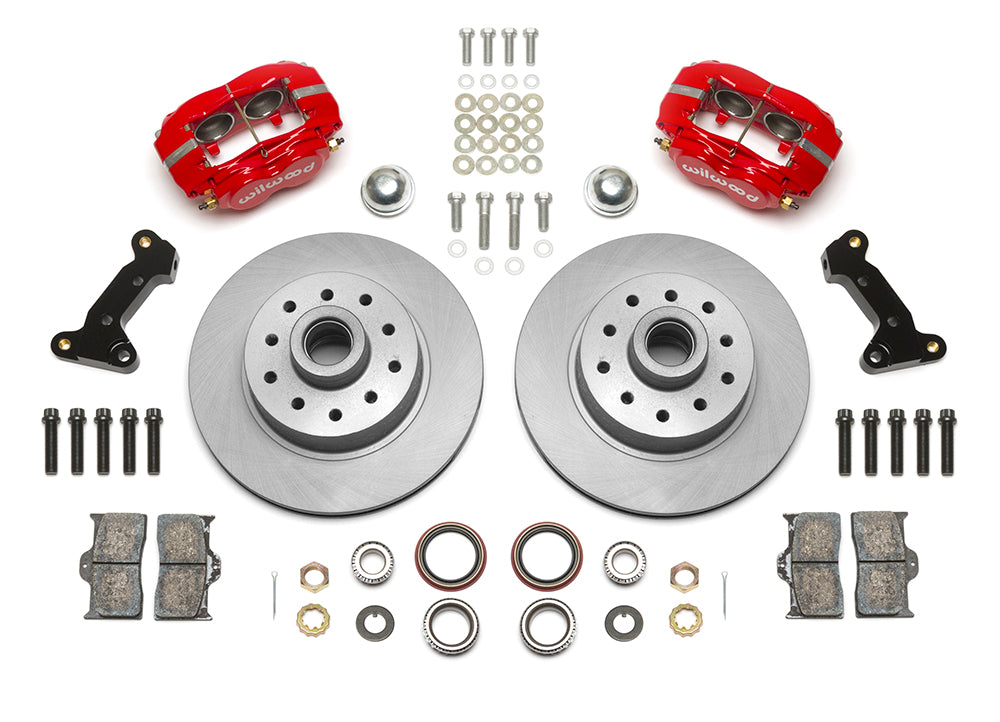

The kit requires the specified 1974–1978 Mustang II-type factory disc spindle used by the listed Mustang II, Pinto and Bobcat applications; it is not a universal original-spindle conversion. DS-1186 includes one-piece iron hub/rotors, bearings and 1/2-20 studs, with 5 x 4.50 and 5 x 4.75-inch wheel options. Wilwood lists a +0.27-inch hub offset per side. Flexlines are separate, and the master-cylinder pushrod may need modification; verify the wheel drawing before installation.

Listed models: Mustang II; Pinto; Bobcat. Use the fitment table below for the individual years, submodels and equipment conditions.
