Product details

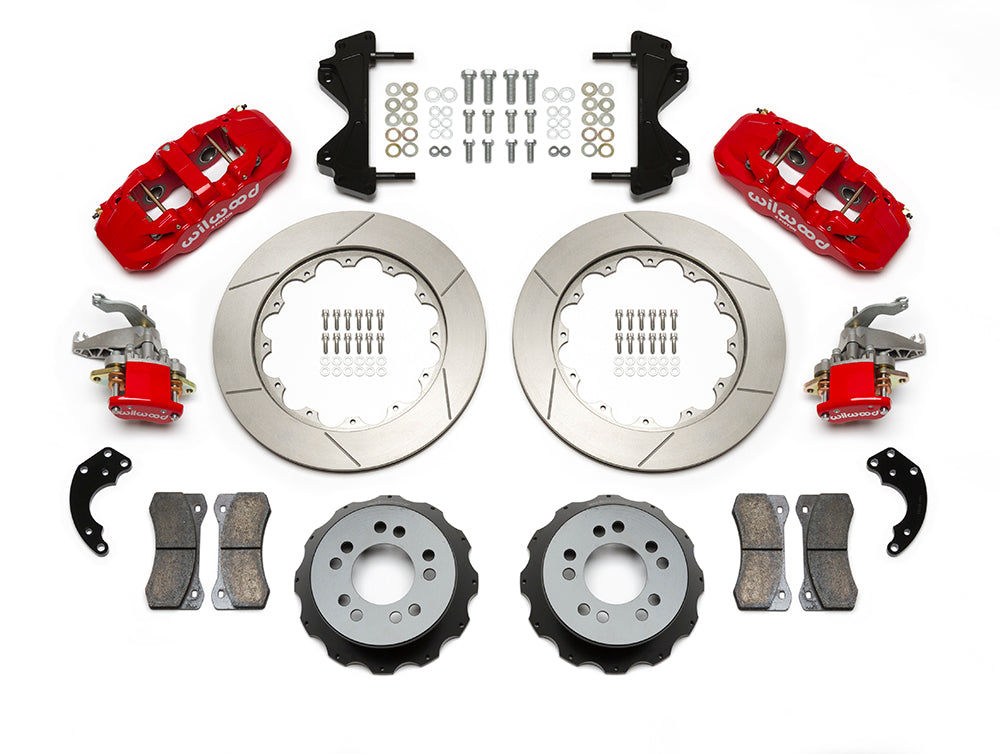

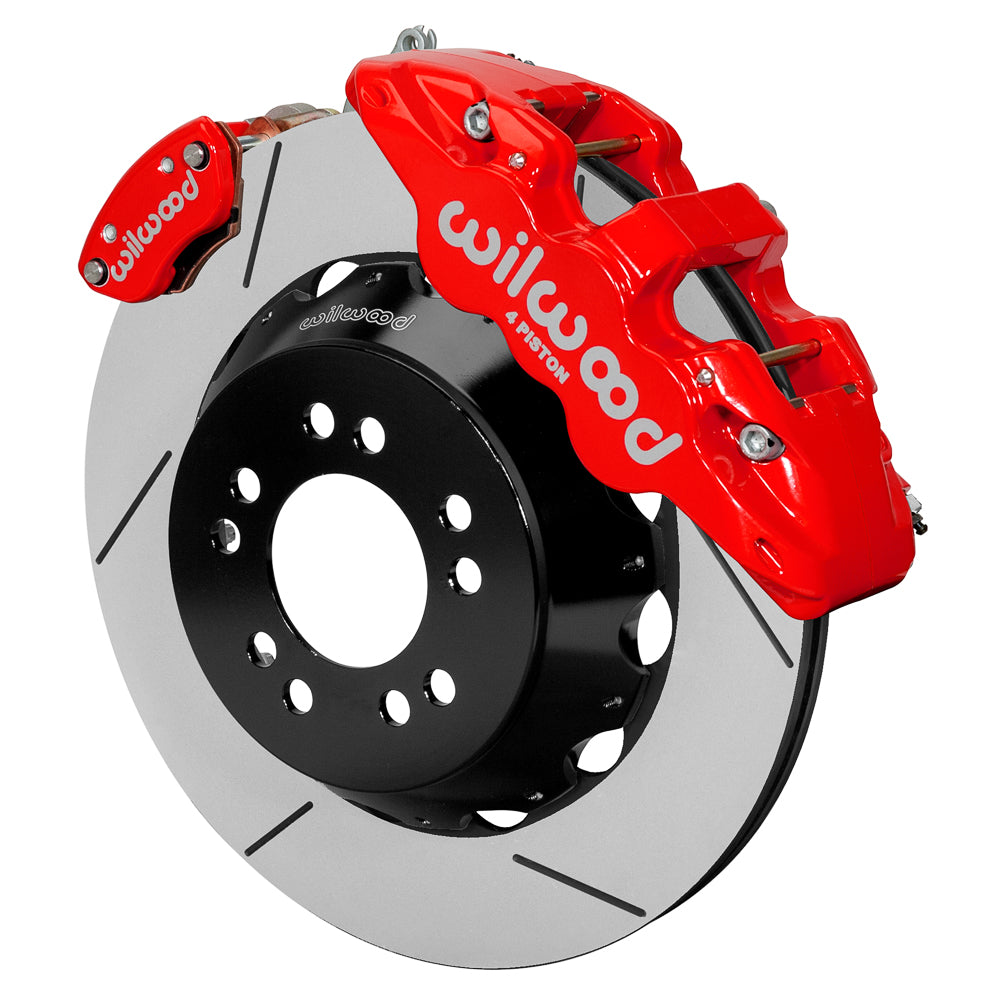

Red AERO4 service calipers clamp GT-slotted 14-inch rotors in this Currie rear package. Mechanical parking-brake operation is provided by separate MC4 calipers and requires a correctly selected cable installation. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-14263-R
- Kit classification: Rear Brake Kits - Street Performance
- Axle position: Rear Kits
- Brake Type: Disc; Parking
- Selling unit: Sold as a kit.
- Pistons per service caliper: 4
- Service-caliper piston construction: Stainless
- Service-caliper mount: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Red
- Caliper Finish: Red Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: AERO4
- Pad compound: BP-20
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
- Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
- Required rear axle / flange: Currie Pro-Tour Unit Bearing
- Catalog axle-offset reference: 0.00 in; 0 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: No
- Rotor Outside Diameter: 14.00 in; 355.6 mm
- Rotor Thickness: 0.81 in; 20.57 mm
- Rotor Material: Iron
- Surface Type: GT Slotted
- Rotor construction: Vented
- Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Catalog stud / mounting-hole reference: 0.560 in; 14.22 mm
- Rotor surface finish: Black Electro Coat
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset dimension: 1.750 in
Fitment & Compatibility
The 14-inch rotor package is specific to the Currie Pro-Tour unit-bearing floating axle and its hub geometry. Follow DS-1181 for the AERO4 and MC4 caliper arrangement; front or rear vehicle names alone cannot identify this custom axle. Brake hoses and parking-cable hardware require separate selection. Use the 18-inch wheel guidance only with the clearance diagram for the actual wheel.
