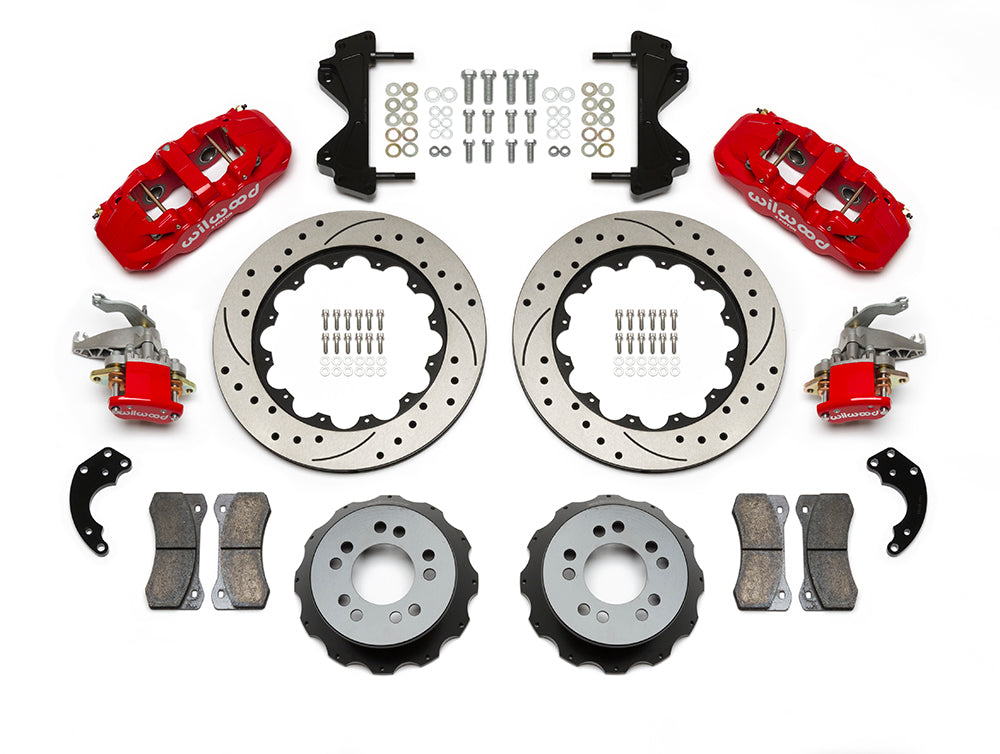

Wilwood red AERO4/MC4 rear kit for Currie Pro-Tour unit-bearing axles, with 14-inch drilled-and-slotted rotors, hats, pads and brackets laid out

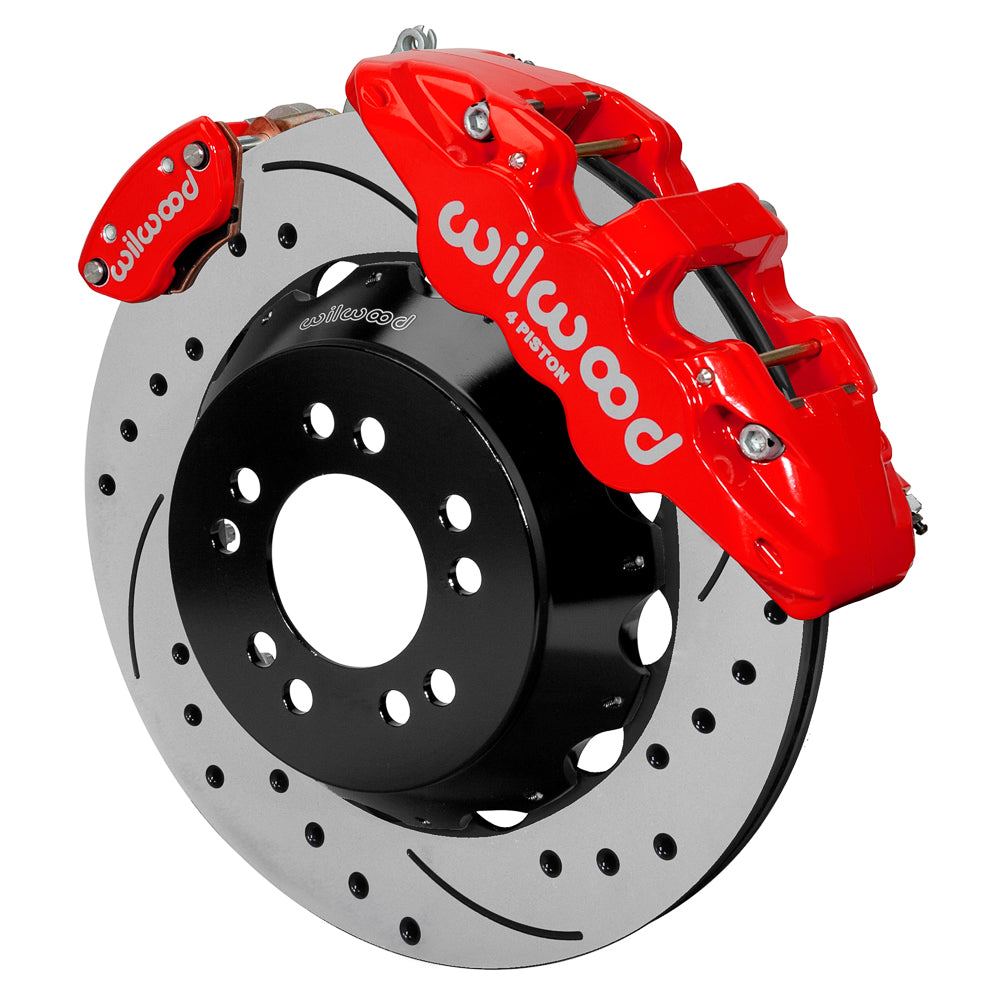

Wilwood red AERO4 service caliper and MC4 parking caliper around a 14-inch drilled-and-slotted rotor, shown for Currie Pro-Tour unit-bearing axles
Wilwood red AERO4/MC4 rear kit for Currie Pro-Tour unit-bearing axles, with 14-inch drilled-and-slotted rotors, hats, pads and brackets laid out
Wilwood red AERO4 service caliper and MC4 parking caliper around a 14-inch drilled-and-slotted rotor, shown for Currie Pro-Tour unit-bearing axles

Wilwood Rear Red AERO4/MC4 Kit, 14-Inch Drilled-and-Slotted Rotors for Currie Pro-Tour Unit Bearings

SKU: 140-14263-DR

$2,559.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The red AERO4/MC4 version supplies 14.00 by 0.81-inch drilled-and-slotted rear rotors. A dedicated MC4 parking caliper supplements each hydraulic service caliper on the matching Currie unit-bearing installation. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-14263-DR
  • Kit classification: Rear Brake Kits - Street Performance
  • Axle position: Rear Kits
  • Brake Type: Disc; Parking
  • Selling unit: Sold as a kit.
  • Rotor Outside Diameter: 14.00 in; 355.6 mm
  • Rotor Thickness: 0.81 in; 20.57 mm
  • Rotor Material: Iron
  • Surface Type: SRP Drilled & Slotted
  • Rotor construction: Vented
  • Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Catalog stud / mounting-hole reference: 0.560 in; 14.22 mm
  • Rotor surface finish: Black Electro Coat
  • Hat material: Aluminum
  • Hat finish: Black E-Coat
  • Hat offset dimension: 1.750 in
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: No
  • Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
  • Required rear axle / flange: Currie Pro-Tour Unit Bearing
  • Catalog axle-offset reference: 0.00 in; 0 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No
  • Pistons per service caliper: 4
  • Service-caliper piston construction: Stainless
  • Service-caliper mount: Radial
  • Caliper body construction: Forged aluminum
  • Caliper Color: Red
  • Caliper Finish: Red Powder Coat
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: AERO4
  • Pad compound: BP-10

Fitment & Compatibility

The 14-inch rotor package is specific to the Currie Pro-Tour unit-bearing floating axle and its hub geometry. Follow DS-1181 for the AERO4 and MC4 caliper arrangement; front or rear vehicle names alone cannot identify this custom axle. Brake hoses and parking-cable hardware require separate selection. Use the 18-inch wheel guidance only with the clearance diagram for the actual wheel.

Wilwood product specifications · Installation instructions

PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
