Product details

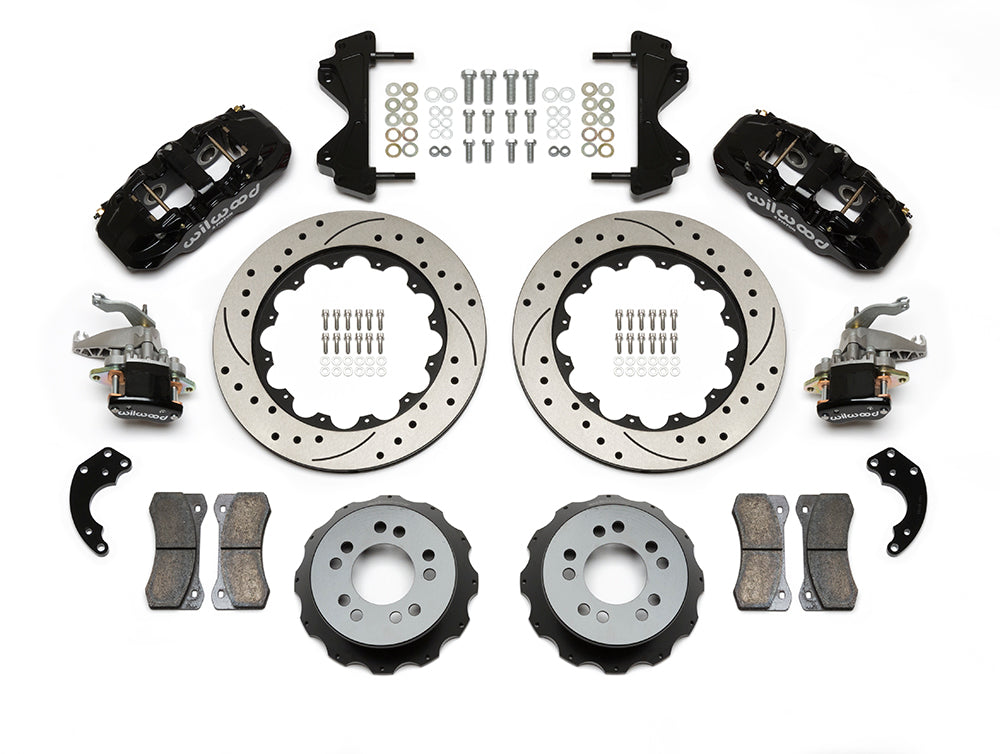

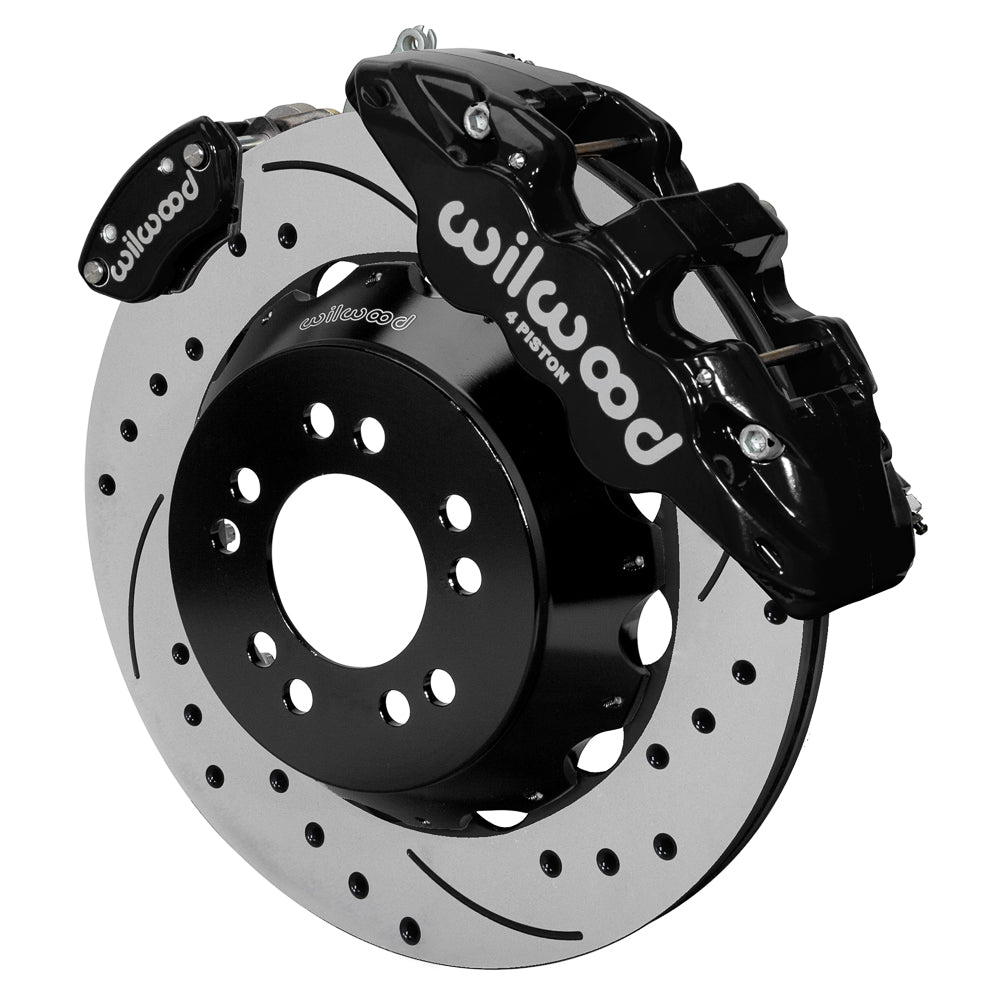

Black AERO4 service calipers and separate mechanical parking calipers work over 14-inch drilled-and-slotted rotors. This rear package is arranged for the specified Currie Pro-Tour unit-bearing floating axle. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-14263-D
- Kit classification: Rear Brake Kits - Street Performance
- Axle position: Rear Kits
- Brake Type: Disc; Parking
- Selling unit: Sold as a kit.
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
- Rotor Outside Diameter: 14.00 in; 355.6 mm
- Rotor Thickness: 0.81 in; 20.57 mm
- Rotor Material: Iron
- Surface Type: SRP Drilled & Slotted
- Rotor construction: Vented
- Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Catalog stud / mounting-hole reference: 0.560 in; 14.22 mm
- Rotor surface finish: Black Electro Coat
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset dimension: 1.750 in
- Pistons per service caliper: 4
- Service-caliper piston construction: Stainless
- Service-caliper mount: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Black
- Caliper Finish: Black Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: AERO4
- Pad compound: BP-10
- Minimum wheel guidance (clearance drawing required): 18 in; 457.2 mm
- Required rear axle / flange: Currie Pro-Tour Unit Bearing
- Catalog axle-offset reference: 0.00 in; 0 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: No
Fitment & Compatibility
The 14-inch rotor package is specific to the Currie Pro-Tour unit-bearing floating axle and its hub geometry. Follow DS-1181 for the AERO4 and MC4 caliper arrangement; front or rear vehicle names alone cannot identify this custom axle. Brake hoses and parking-cable hardware require separate selection. Use the 18-inch wheel guidance only with the clearance diagram for the actual wheel.
