Product details
Red Superlite 4R calipers provide the hydraulic service brake in this Currie Pro-Tour conversion. Separate MC4 units supply parking action over the same 12.88-inch GT-slotted rotor assemblies. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-14262-R
- Kit classification: Rear Brake Kits - Street Performance
- Axle position: Rear Kits
- Brake Type: Disc; Parking
- Selling unit: Sold as a kit.
- Rotor Outside Diameter: 12.88 in; 327.15 mm
- Rotor Thickness: 0.81 in; 20.57 mm
- Rotor Material: Iron
- Surface Type: GT Slotted
- Rotor construction: Vented
- Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Catalog stud / mounting-hole reference: 0.560 in; 14.22 mm
- Rotor surface finish: Black Electro Coat
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset dimension: 1.750 in
- Minimum wheel guidance (clearance drawing required): 17 in; 431.8 mm
- Required rear axle / flange: Currie Pro-Tour Unit Bearing
- Catalog axle-offset reference: 0.00 in; 0 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: No
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
- Pistons per service caliper: 4
- Service-caliper piston construction: Stainless
- Service-caliper mount: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Red
- Caliper Finish: Red Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: Superlite 4R
- Pad compound: BP-10
Fitment & Compatibility

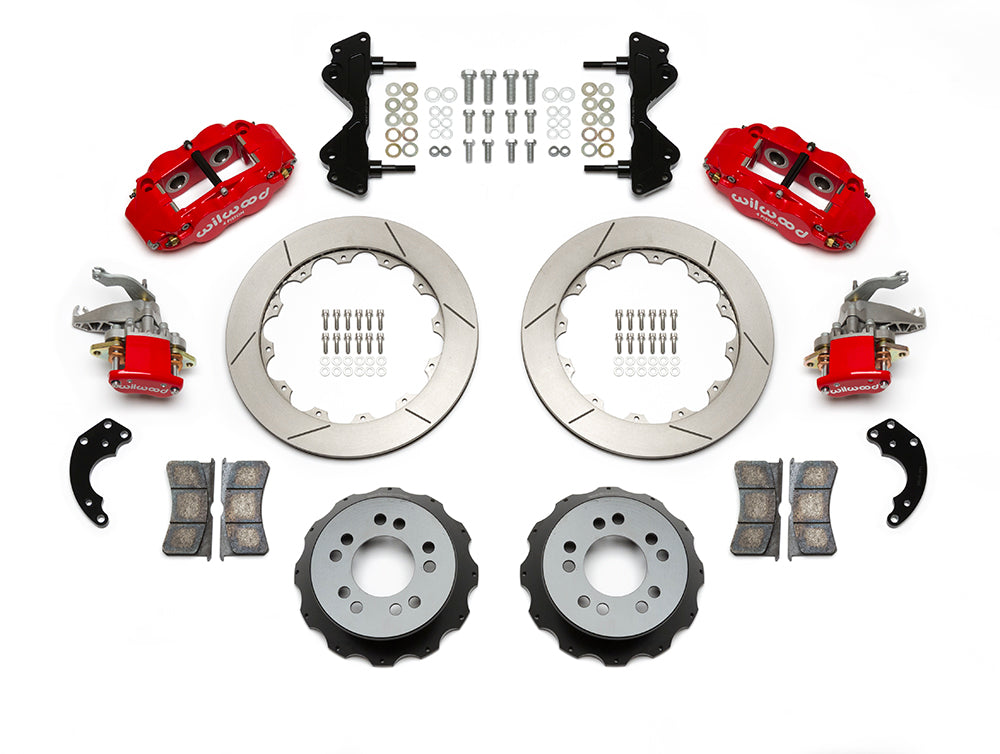

Select this kit only for the specified Currie Pro-Tour unit-bearing floating rear axle. DS-1180 defines the caliper-bracket, hub-registration and wheel-pattern requirements; no generic vehicle application is implied. The kit supplies service and MC4 parking calipers, while hydraulic flexlines, parking cables and cable adapters are separate. Confirm the 17-inch wheel template and the available cable travel.
