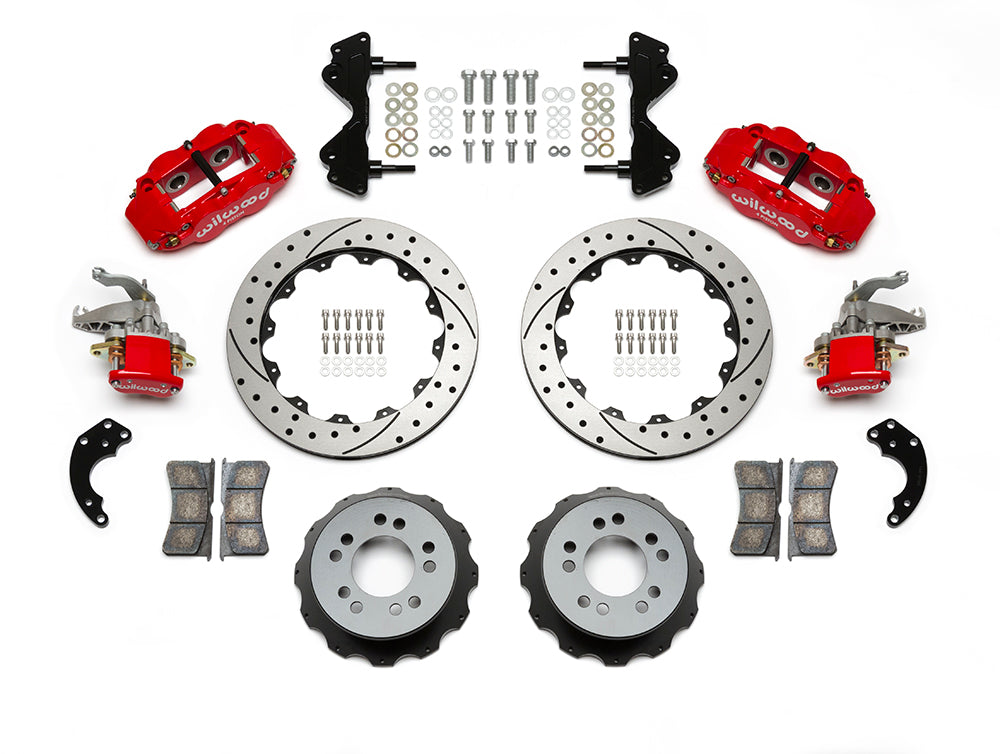

Wilwood red Superlite 4R/MC4 rear kit for Currie Pro-Tour unit-bearing axles, with 12.88-inch drilled-and-slotted rotors, hats, pads and brackets laid out

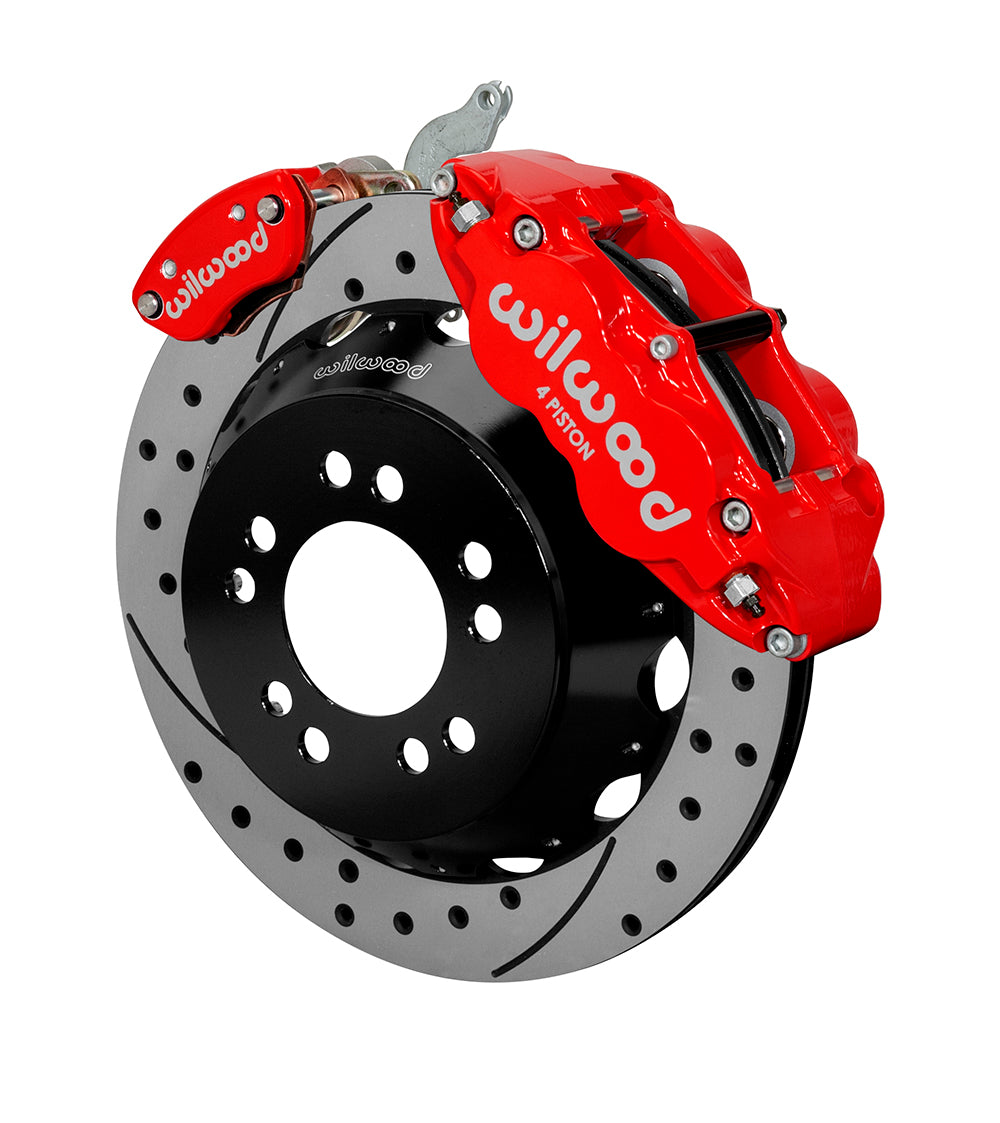

Wilwood red rear Superlite 4R service caliper and separate MC4 parking caliper around a drilled-and-slotted rotor assembly
Wilwood red Superlite 4R/MC4 rear kit for Currie Pro-Tour unit-bearing axles, with 12.88-inch drilled-and-slotted rotors, hats, pads and brackets laid out
Wilwood red rear Superlite 4R service caliper and separate MC4 parking caliper around a drilled-and-slotted rotor assembly

Wilwood Rear Red Superlite 4R and MC4 Package, 12.88-Inch Drilled Rotors for Currie Pro-Tour Axles

SKU: 140-14262-DR

$2,231.16 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This red Currie rear package combines hydraulic service calipers, mechanical parking calipers, rotors, hats, pads and mounting hardware. Its drilled-and-slotted 12.88-inch rotors are sized for the specified Pro-Tour unit-bearing axle. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

  • Manufacturer: Wilwood
  • Manufacturer part number: 140-14262-DR
  • Kit classification: Rear Brake Kits - Street Performance
  • Axle position: Rear Kits
  • Brake Type: Disc; Parking
  • Selling unit: Sold as a kit.
  • Pistons per service caliper: 4
  • Service-caliper piston construction: Stainless
  • Service-caliper mount: Radial
  • Caliper body construction: Forged aluminum
  • Caliper Color: Red
  • Caliper Finish: Red Powder Coat
  • Caliper Inlet Port Diameter: 1/8-27 NPT
  • Caliper family: Superlite 4R
  • Pad compound: BP-10
  • Rotor Outside Diameter: 12.88 in; 327.15 mm
  • Rotor Thickness: 0.81 in; 20.57 mm
  • Rotor Material: Iron
  • Surface Type: SRP Drilled & Slotted
  • Rotor construction: Vented
  • Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Catalog stud / mounting-hole reference: 0.560 in; 14.22 mm
  • Rotor surface finish: Black Electro Coat
  • Hat material: Aluminum
  • Hat finish: Black E-Coat
  • Hat offset dimension: 1.750 in
  • Minimum wheel guidance (clearance drawing required): 17 in; 431.8 mm
  • Required rear axle / flange: Currie Pro-Tour Unit Bearing
  • Catalog axle-offset reference: 0.00 in; 0 mm
  • Spindle Included: No
  • Mounting Hardware Included: Yes
  • Separate wheel hubs included: No
  • Master Cylinder Included: No
  • Brake Booster Included: No
  • Brake Lines Included: No

Fitment & Compatibility

Select this kit only for the specified Currie Pro-Tour unit-bearing floating rear axle. DS-1180 defines the caliper-bracket, hub-registration and wheel-pattern requirements; no generic vehicle application is implied. The kit supplies service and MC4 parking calipers, while hydraulic flexlines, parking cables and cable adapters are separate. Confirm the 17-inch wheel template and the available cable travel.

Wilwood product specifications · Installation instructions

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
